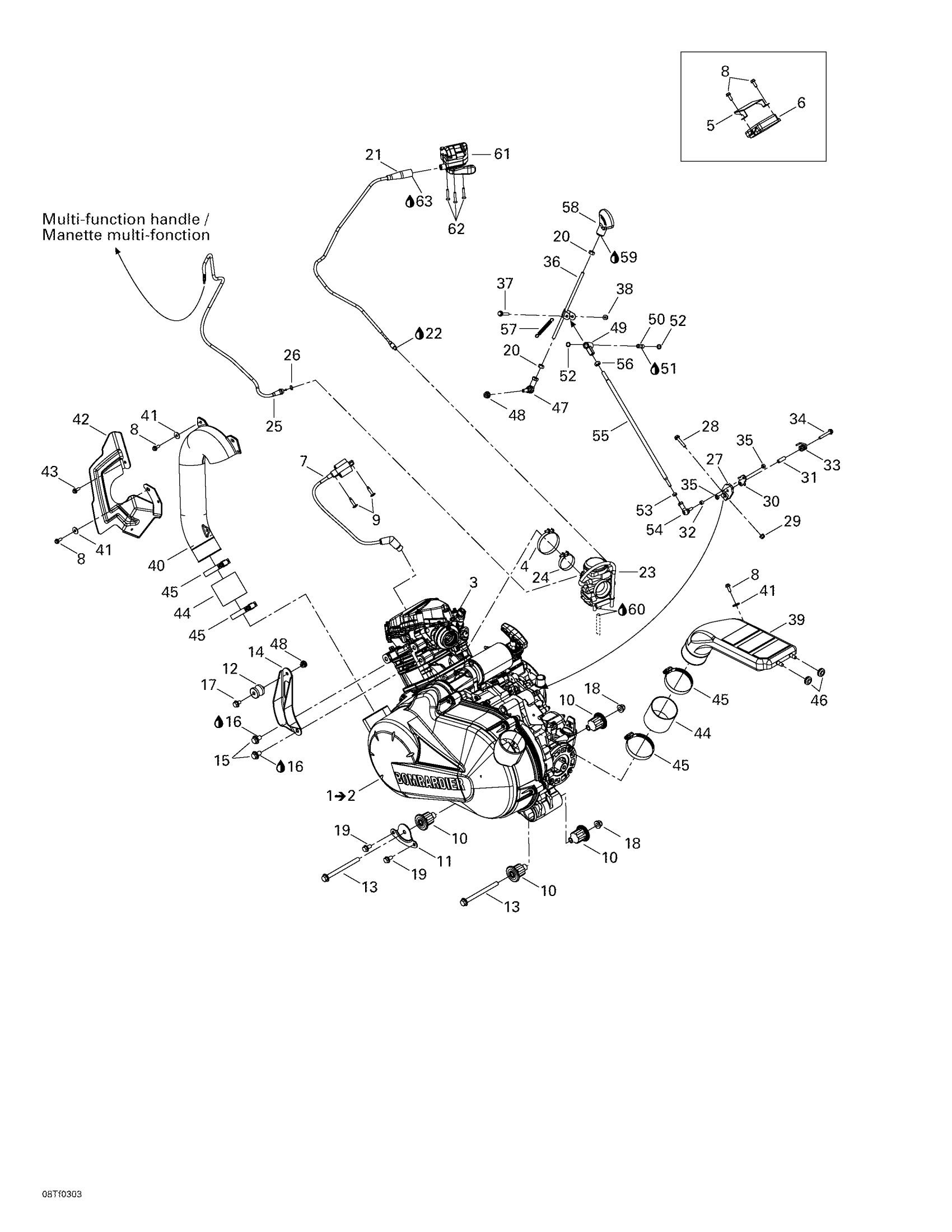

Can-Am Outlander 400, 2003 Engine And Engine Support Diagram

#

Description
Price

1

Rotax 4 Strokes Engine “400” | Includes 1 - 2.

707000235

Unavailable

2

Spark Plug, NGK DCP-R8E

715900637

Unavailable

3

Intake Neck

420267340

$16.89

4

Clamp

420251480

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Amplifier box

420664280

Unavailable

7

IGNITION COIL ASS'Y - Call your local BRP dealership | Includes 57 to 58

420265358

Unavailable

8

Hex. Flange Screw M6 X 16

210261650

$1.22

9

Torx Screw M6 X 25 | XT Models

250000728

Unavailable

10

Anti-Vibration Mount

707000218

Unavailable

11

LH FRONT ENGINE BRACKET - Call your local BRP dealership

707000220

$10.74

12

Rubber Isolator

707000949

Unavailable

13

Hex. Flange Screw M10 X 125

230602546

Unavailable

14

UPPER ENGINE BRACKET - Call your local BRP dealership

707000224

$13.83

15

Hex. Flange Screw M10 X 25

207602544

Unavailable

16

Loctite 243, 10 ml

293800060

$20.77

17

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

Unavailable

18

Hex. Flange Elastic Nut M10

233201436

Unavailable

19

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

Unavailable

20

Hex. Nut M8

232081414

Unavailable

21

THROTTLE CABLE - Call your local BRP dealership

707000226

Unavailable

22

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

23

Carburator, Mikuni BSR33-49 | 400HO

707200190

Unavailable

24

Gemi clamp

293650143

$3.05

25

CHOKE CABLE - Call your local BRP dealership

707000228

Unavailable

26

O-RING - Call your local BRP dealership

293300075

$5.35

27

Lever

707000503

$36.89

28

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

30

Pivot Plate

707000507

$7.69

31

Bushing

293900079

Unavailable

32

Bushing | DS 650 X

293900104

Unavailable

33

Spring

707000310

Unavailable

34

Hex. Flange Screw M6 X 40

207664044

$2.18

35

Elastic Stop Nut M6

232561414

Unavailable

36

Lever Arm

707000786

$36.89

37

Hex. Flange Screw M6 X 40

207664044

$2.18

38

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

39

Air Outlet

707000227

Unavailable

40

Air Intake

707000261

Unavailable

41

Flat Washer

250200082

Unavailable

42

CVT WATER DEFLECTOR - Call your local BRP dealership

707000697

$12.20

43

Tuflock Phillips Plastic Screw

414745900

$1.30

44

FLEXIBLE ADAPTOR - Call your local BRP dealership

707000154

Unavailable

45

Tridon Clamp

293650064

Unavailable

46

Grommet

709000582

$4.38

47

RH Ball Joint

707001959

Unavailable

48

Hex. Elastic Stop Nut M8

232581414

Unavailable

49

PIVOT - Call your local BRP dealership

707000568

Unavailable

50

Bushing

293900075

$11.98

51

Synthetic Grease, 400 G

293550010

Unavailable

52

O-RING - Call your local BRP dealership

414583300

Unavailable

53

LH HEX. NUT M6 - Call your local BRP dealership

232066414

Unavailable

54

LH BALL JOINT - Call your local BRP dealership

707000545

Unavailable

55

Threaded Rod

707000567

$34.58

56

Hex. Nut M8

232081414

Unavailable

57

Spring

707000569

$8.45

58

Lever Handle

707000284

$18.43

59

Loctite 243, 10 ml

293800060

$20.77

60

Glue Tube, Loctite 454, 20 G

413708300

$59.97

61

Throttle Handle | 4X4

707000595

Unavailable

62

Socket head screw M5 x 25

205452546

Unavailable

63

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable
