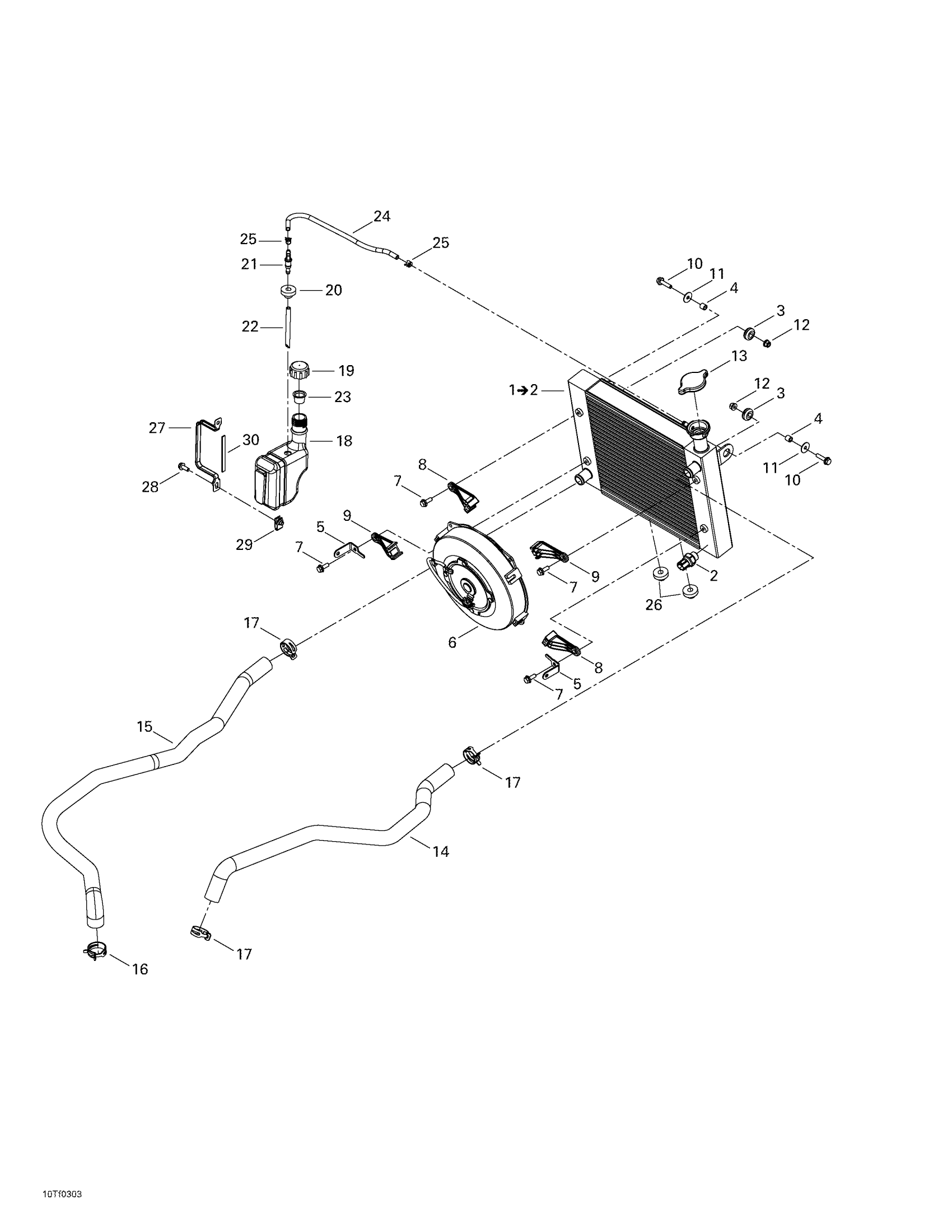

Can-Am Outlander 400, 2003 Cooling System Diagram

#

Description
Price

1

Radiator Ass'y

709200072

Unavailable

2

Temperature Sensor

715900095

$72.99

3

Grommet

709000582

$4.79

4

Bushing

293900105

$7.79

5

SUPPORT - Call your local BRP dealership

709200284

Unavailable

6

FAN ASS'Y - Call your local BRP dealership

709200075

Unavailable

7

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.99

8

FAN SUPPORT - Call your local BRP dealership

709200076

Unavailable

9

FAN SUPPORT - Call your local BRP dealership

709200095

Unavailable

10

Hex. Flange Screw M6 X 25

207662544

$1.49

11

Flat Washer

224060201

$1.49

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

13

Radiator Pressure Cap

709200207

$21.61

14

RADIATOR INLET HOSE - Call your local BRP dealership

709200077

Unavailable

15

Radiator Outlet Hose

709200079

Unavailable

16

Norma Spring Clamp

293650108

$4.19

17

Norma Spring Clamp

293650109

$4.19

18

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

19

TANK CAP - Call your local BRP dealership

709200009

Unavailable

20

Grommet

709200285

$9.89

21

Elbow Male Connector

414580600

$4.29

22

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$124.99

23

PROTECTION CAP - Call your local BRP dealership

709200205

Unavailable

24

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$124.99

25

Spring Clamp

414554800

$1.49

26

Grommet

709200285

$9.89

27

TANK ANCHOR - Call your local BRP dealership

709200080

Unavailable

28

Hex. Flange Screw M6 X 16

210261650

$1.69

29

Panel Nut M6 X 1.0

250100198

$2.19

30

Gasket, Neoprene 2000Mm Long

219704476

$15.99
