1996 Kawasaki Ninja® ZX™-9R Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1996 Kawasaki Ninja® ZX™-9R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

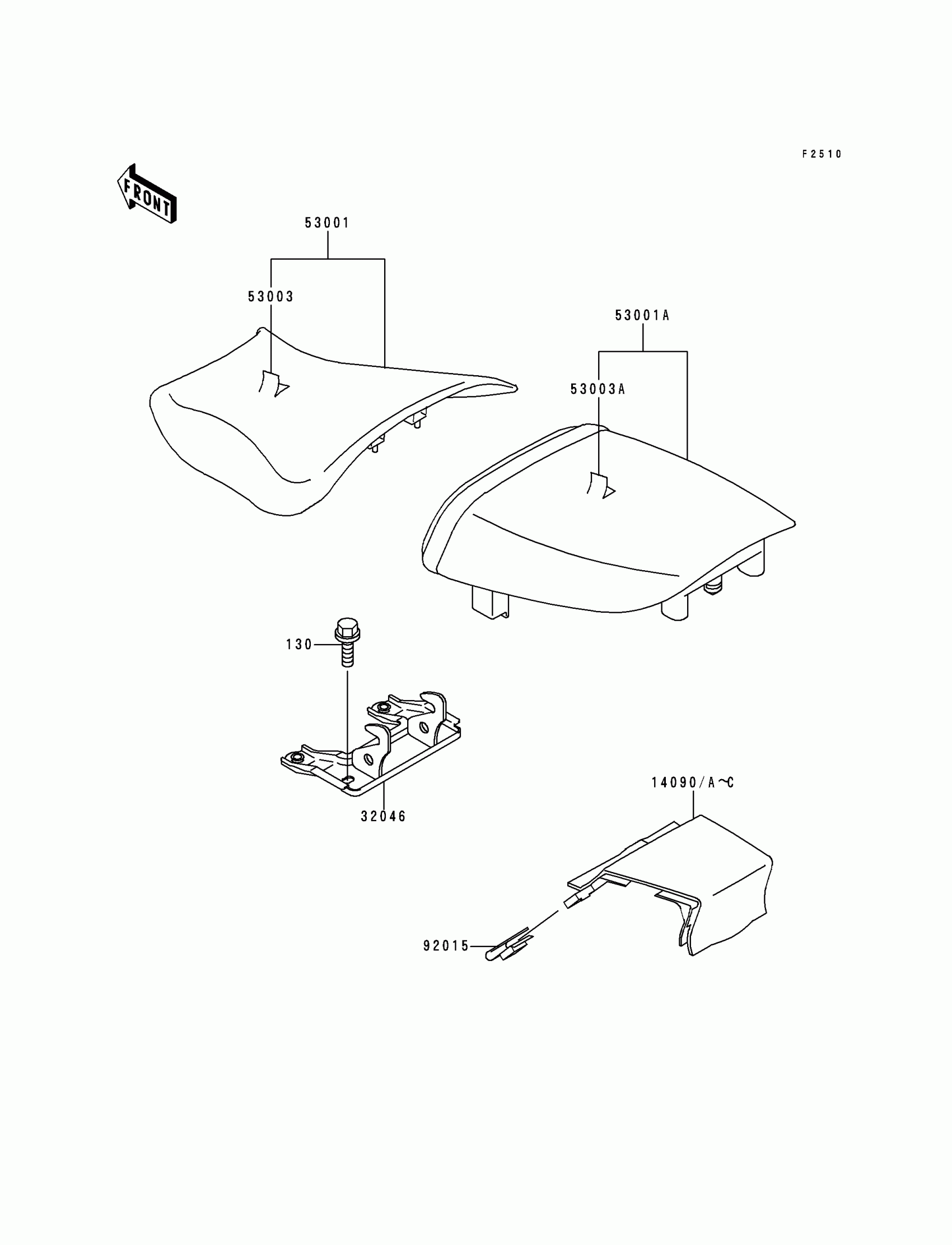

1996 Kawasaki Ninja® ZX™-9R Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130J0610

1
Out of stock

14090A

COVER,TAIL,P.A.WHITE

14090-1365-R1

1
Out of stock

14090C

COVER,TAIL,BLACK MICA

14090-1365-20

1
Out of stock

32046

BRACKET-SEAT,RR

32046-1378

1
Out of stock

53001

SEAT-ASSY,FR,BLACK

53001-1724-MA

1
Out of stock

53001A

SEAT-ASSY,RR,W/BAND,BLACK

53001-1725-MA

1
Out of stock

53003

LEATHER,FRONT SEAT,BLACK

53003-1283-MA

1
Out of stock

53003A

LEATHER,REAR SEAT,BLACK

53003-1286-MA

1
Out of stock

92015

NUT,5MM

92015-1798

1
Out of stock
