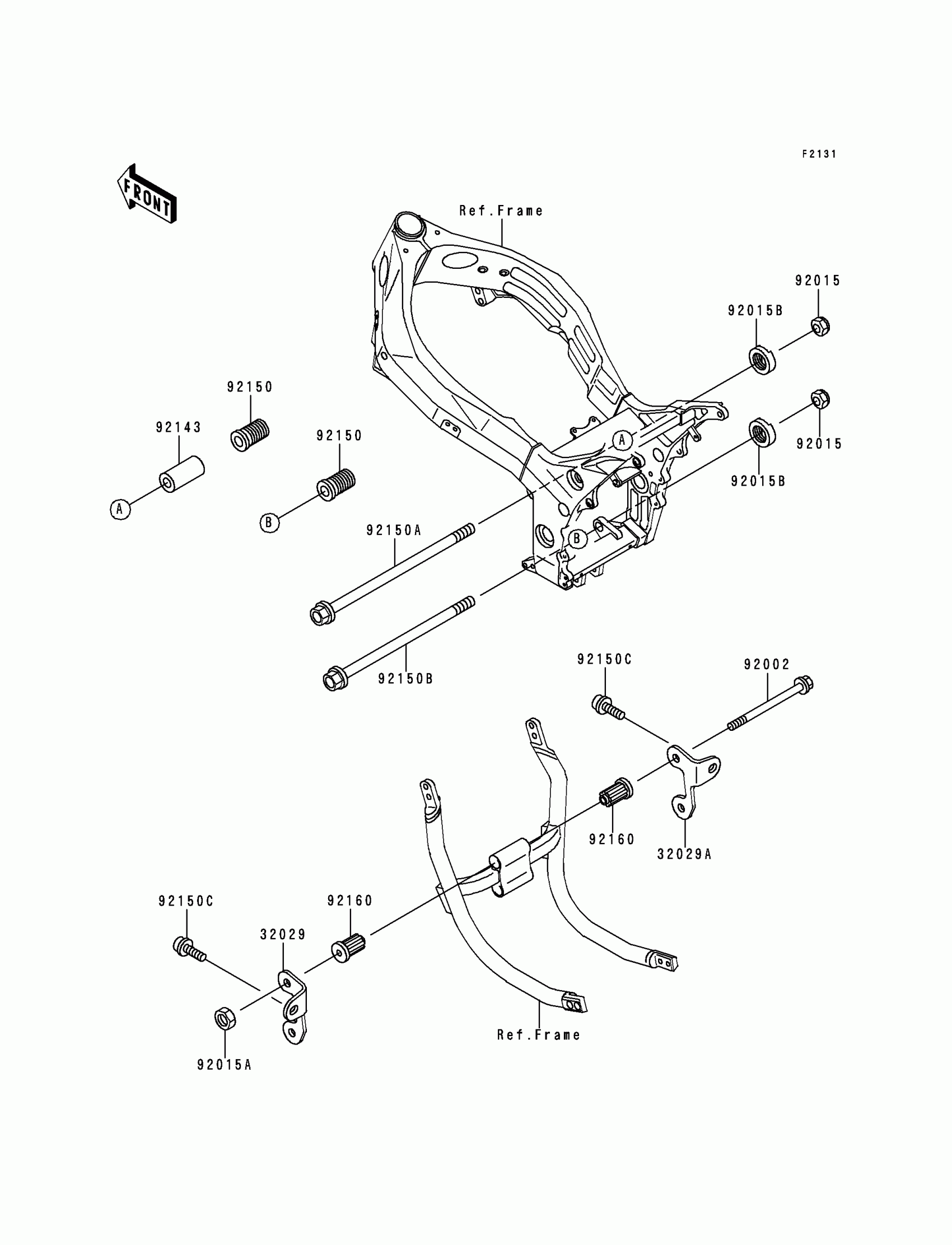

Kawasaki Ninja® ZX™-9R Frame Fittings Diagram

Description

Price

32029

BRACKET-ENGINE,FR,LH

32029-1929

Unavailable

32029A

BRACKET-ENGINE,FR,RH

32029-1930

Unavailable

92002

BOLT,FLANGED,10X130

92002-1087

$9.02

92015

NUT,LOCK,12MM,BLACK

92015-1190

$7.25

92015A

NUT,10MM

92015-1429

$5.15

92015B

NUT,ENGINE MOUNT,22MM

92015-1846

$17.58

92143

COLLAR,12.5X26X51

92143-1482

$29.74

92150

BOLT,ENGINE MOUNT,22X38

92150-1471

$38.86

92150A

BOLT,FLANGED,12X243

92150-1472

Unavailable

92150B

BOLT,FLANGED,12X221

92150-1473

Unavailable

92150C

BOLT,SOCKET,10X25

92150-1762

Unavailable

92160

DAMPER,ENGINE MOUNT

92160-1483

Unavailable
