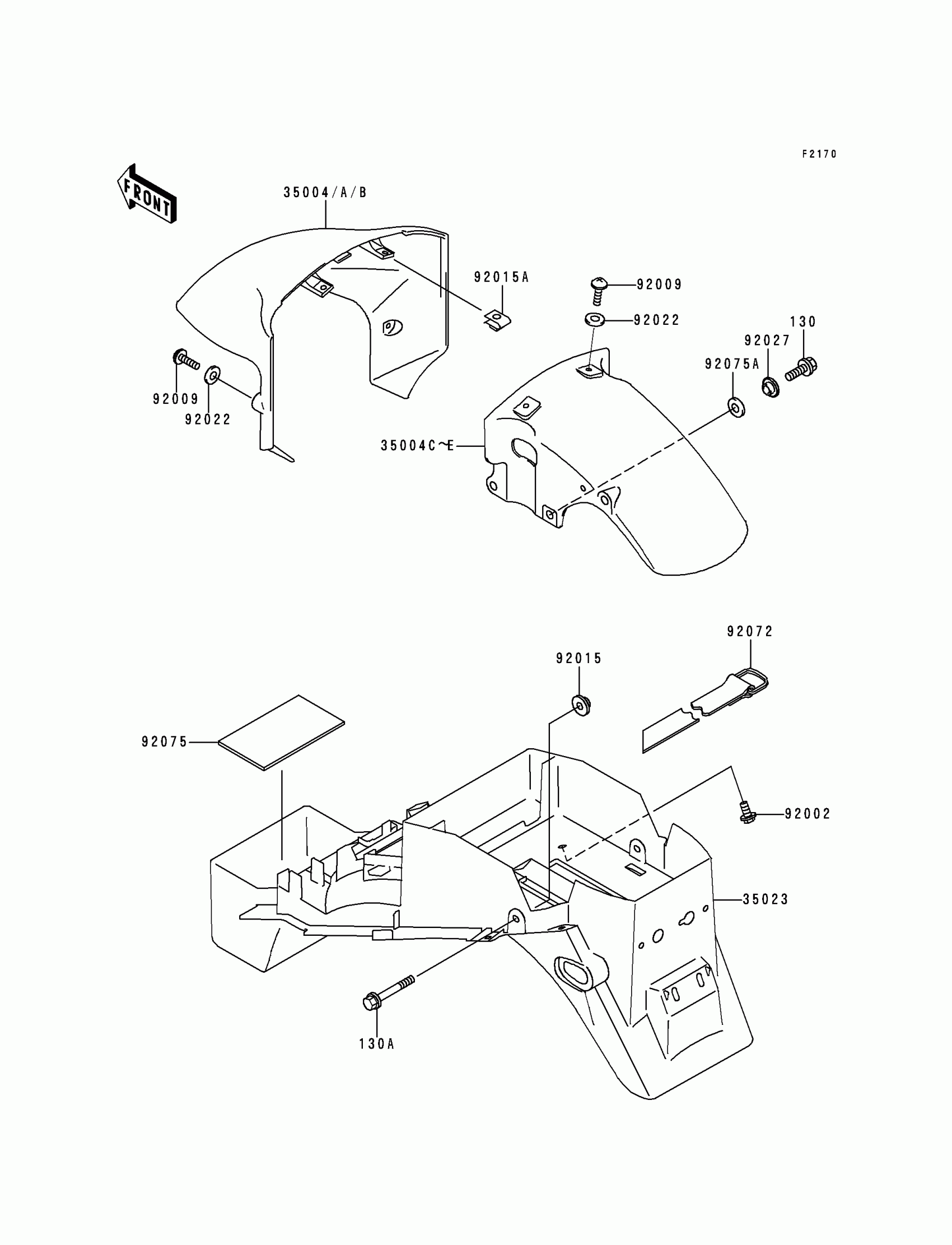

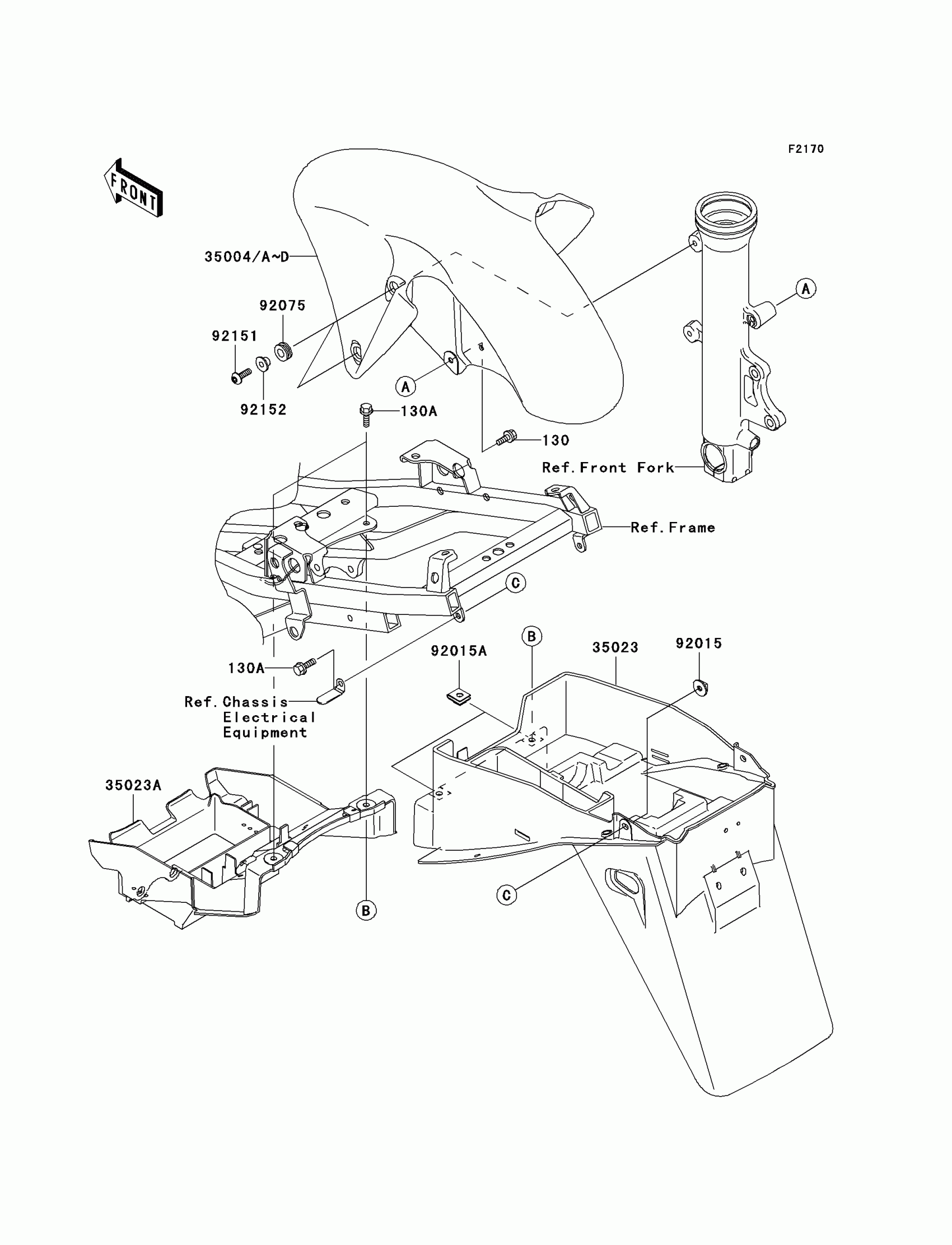

Kawasaki Ninja® ZX™-9R Fenders Diagram

Description

Price

130

BOLT-FLANGED,6X16

130H0616

Unavailable

130A

BOLT-FLANGED,6X40

130J0640

Unavailable

35004A

FENDER-FRONT,FR,BLACK MICA

35004-1320-20

Unavailable

35004B

FENDER-FRONT,FR,L.GREEN

35004-1320-7F

Unavailable

35004D

FENDER-FRONT,RR,BLACK MICA

35004-1321-20

$135.84

35004E

FENDER-FRONT,RR,L.GREEN

35004-1321-7F

Unavailable

35023

FENDER-REAR

35023-1365

Unavailable

92002

BOLT,UPSET-WP,6X12

92002-1884

$3.68

92009

SCREW,5X16,BLACK

92009-1654

$2.17

92015

NUT,6MM

92015-1321

$11.86

92015A

NUT,5MM

92015-1573

$4.97

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$2.99

92027

COLLAR,COWLING STAY

92027-1667

$10.80

92072

BAND,L=460

92072-1314

Unavailable

92075

DAMPER

92075-1076

$6.75

92075A

DAMPER

92075-1564

$4.15
