1996 Kawasaki Ninja® ZX™-9R Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1996 Kawasaki Ninja® ZX™-9R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

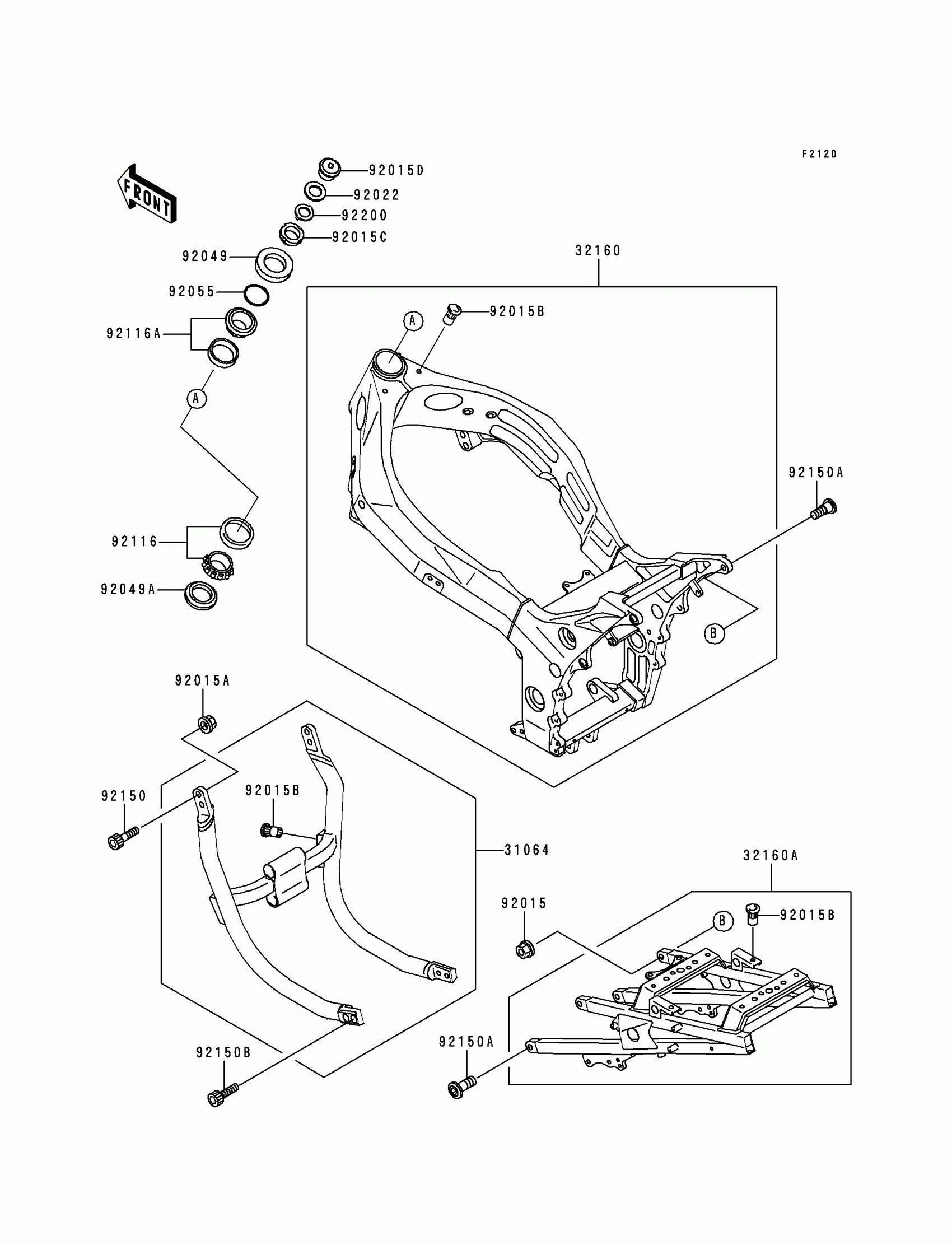

1996 Kawasaki Ninja® ZX™-9R Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

31064

PIPE-COMP,DOWNTUBE

31064-1166

1

$322.11

In stock

32160

FRAME-COMP,AL,FR,G.GRAY

32160-1330-GD

1
Out of stock

32160A

FRAME-COMP,AL,RR,G.GRAY

32160-1332-GD

1
Out of stock

92015

NUT,FLANGED,10MM

92015-1415

1

$3.72

In stock

92015A

NUT,FLANGED,10MM

92015-1502

1

$8.16

In stock

92015B

NUT,POP,6MM,L=16.5

92015-1792

1

$3.72

In stock

92015C

1

$44.93

In stock

92015D

NUT,STEERING,25MM

92015-1891

1

$70.42

In stock

92022

WASHER,25X36X2.3

92022-250

1
Out of stock

92049

SEAL-OIL,XMH 43 75 6.4J

92049-1382

1
Out of stock

92049A

SEAL-OIL,XMHE 43 55 4J

92049-1383

1
Out of stock

92055

RING-O,34.5X2.0

92055-1452

1

$4.16

In stock

92116

1

$73.29

In stock

92116A

1

$73.29

In stock

92150

BOLT,SOCKET,10X37

92150-1261

1

$10.69

In stock

92150A

BOLT,10X35

92150-1295

1

$9.49

In stock

92150B

BOLT,SOCKET,10X30

92150-1690

1

$4.93

In stock

92200

WASHER,CLAW,25.5X40X2.3

92200-1083

1
Out of stock
