1996 Kawasaki Ninja® ZX™-9R Radiator Diagram

← All diagrams

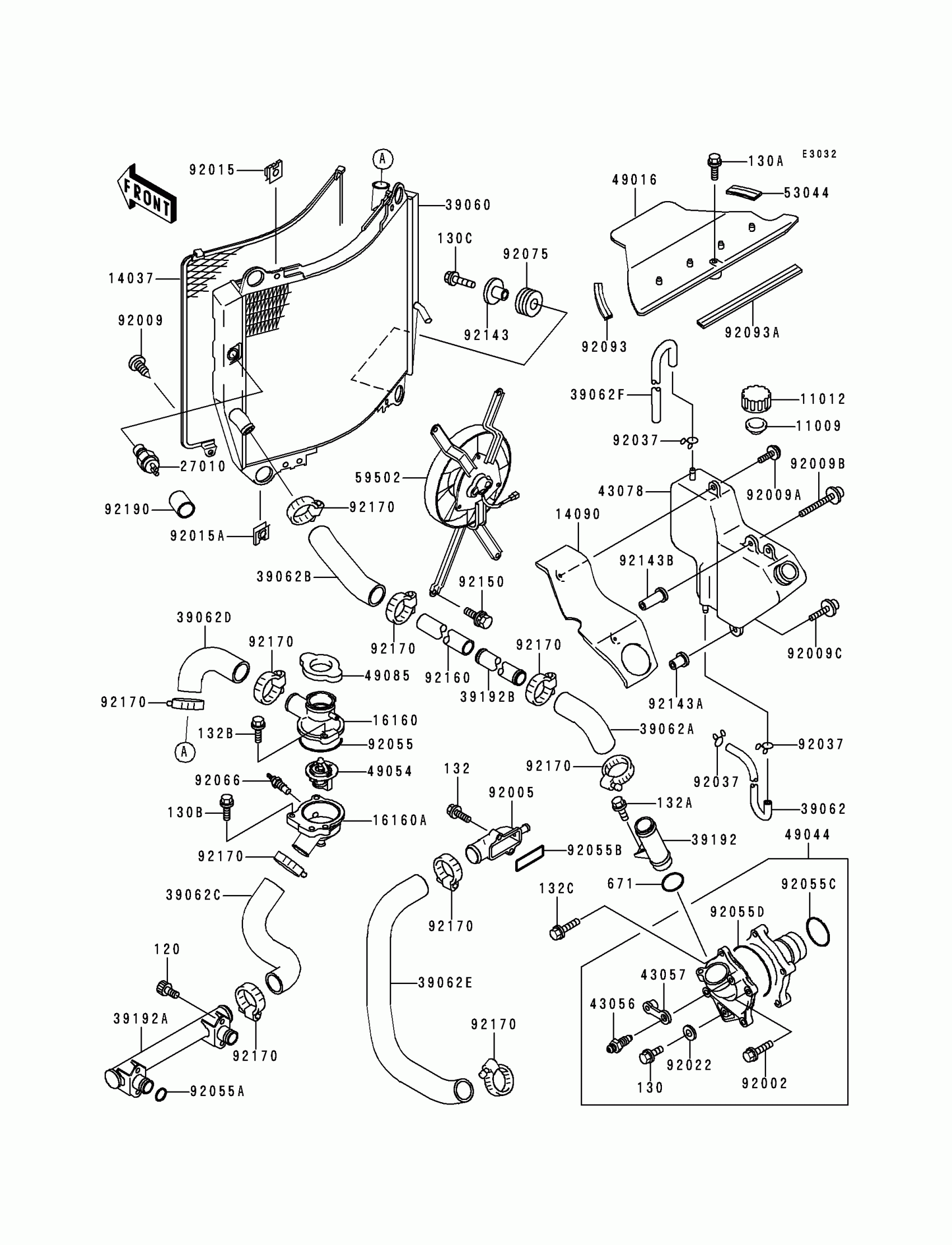

Find the part on the Radiator diagram for your 1996 Kawasaki Ninja® ZX™-9R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Kawasaki Ninja® ZX™-9R Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$1.25

In stock

11012

CAP

11012-1084

1

$1.31

In stock

14037

SCREEN,RADIATOR

14037-1187

1
Out of stock

14090

COVER,RESERVOIR

14090-1387

1

$23.56

In stock

16160

BODY,UPP

16160-1152

1

$69.01

In stock

16160A

BODY,THERMOSTAT,LWR

16160-1231

1

$68.85

In stock

27010

SWITCH,FAN

27010-1202

1

$91.74

In stock

39060

RADIATOR

39060-1126

1
Out of stock

39062

1

$35.25

In stock

39062A

1

$25.00

In stock

39062B

1

$44.93

In stock

39062C

HOSE-COOLING,HEAD-THERMO

39062-1573

1
Out of stock

39062D

1

$24.36

In stock

39062E

1

$55.16

In stock

39062F

HOSE-COOLING,DRAIN

39062-1610

1

$10.68

In stock

39192

PIPE-WATER

39192-1041

1

$37.49

In stock

39192A

PIPE-WATER

39192-1042

1

$115.64

In stock

39192B

PIPE-WATER

39192-1047

1

$34.59

In stock

43056

BREATHER-BRAKE

43056-1051

1

$14.88

In stock

43057

CAP-BREATHER

43057-1001

1

$3.89

In stock

43078

RESERVOIR

43078-1141

1
Out of stock

49016

COVER-SEAL

49016-1163

1
Out of stock

49044

PUMP-WATER

49044-1069

1
Out of stock

49054

THERMOSTAT

49054-1051

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-1066

1

$33.98

In stock

53044

TRIM

53044-1220

1

$7.20

In stock

59502

FAN-ASSY

59502-1100

1

$685.01

In stock

92002

BOLT,6X22

92002-1392

1

$4.19

In stock

92005

FITTING

92005-1268

1
Out of stock

92009

SCREW,TAPPING,6MM

92009-1261

1
Out of stock

92009A

SCREW,TAPPING,6X16

92009-1436

1
Out of stock

92009B

SCREW,6X55

92009-1735

1
Out of stock

92009C

SCREW,6X40

92009-1736

1
Out of stock

92015

NUT

92015-1487

1

$3.80

In stock

92015A

NUT,6MM

92015-1758

1

$5.45

In stock

92022

WASHER,6MM

92022-1976

1
Out of stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92055

RING-O,53.5X2.6

92055-112

1

$5.25

In stock

92055A

RING-O

92055-1282

1

$4.16

In stock

92055B

RING-O

92055-1402

1

$6.24

In stock

120

BOLT-SOCKET,6X12

120P0612

1
Out of stock

130

BOLT-FLANGED,6X10

130C0610

1
Out of stock

130A

BOLT-FLANGED,6X40

130G0640

1
Out of stock

130B

BOLT-FLANGED,6X18

130J0618

1
Out of stock

130C

BOLT-FLANGED,6X25

130J0625

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0625

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X12

132J0612

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X20

132J0620

1
Out of stock

132C

BOLT-FLANGED-SMALL

132J0645

1
Out of stock

671

O RING,25MM

671B2525

1

$3.97

In stock

92055C

RING-O,33.2X2.4

92055-1424

1

$4.97

In stock

92055D

RING-O,WATER PUMP

92055-1495

1

$9.69

In stock

92066

PLUG,SENSOR WATER

92066-1183

1

$60.95

In stock

92075

DAMPER

92075-1665

1

$6.83

In stock

92093

SEAL

92093-1276

1

$11.83

In stock

92093A

SEAL

92093-1327

1
Out of stock

92143

COLLAR

92143-1063

1
Out of stock

92143A

COLLAR

92143-1700

1

$8.03

In stock

92143B

COLLAR

92143-1701

1
Out of stock

92150

BOLT,6X12

92150-1186

1

$2.92

In stock

92160

DAMPER,WATER PIPE

92160-1297

1
Out of stock

92170

CLAMP,COOLING HOSE

92170-1284

1

$6.51

In stock

92190

TUBE,SWITCH

92190-1233

1
Out of stock
