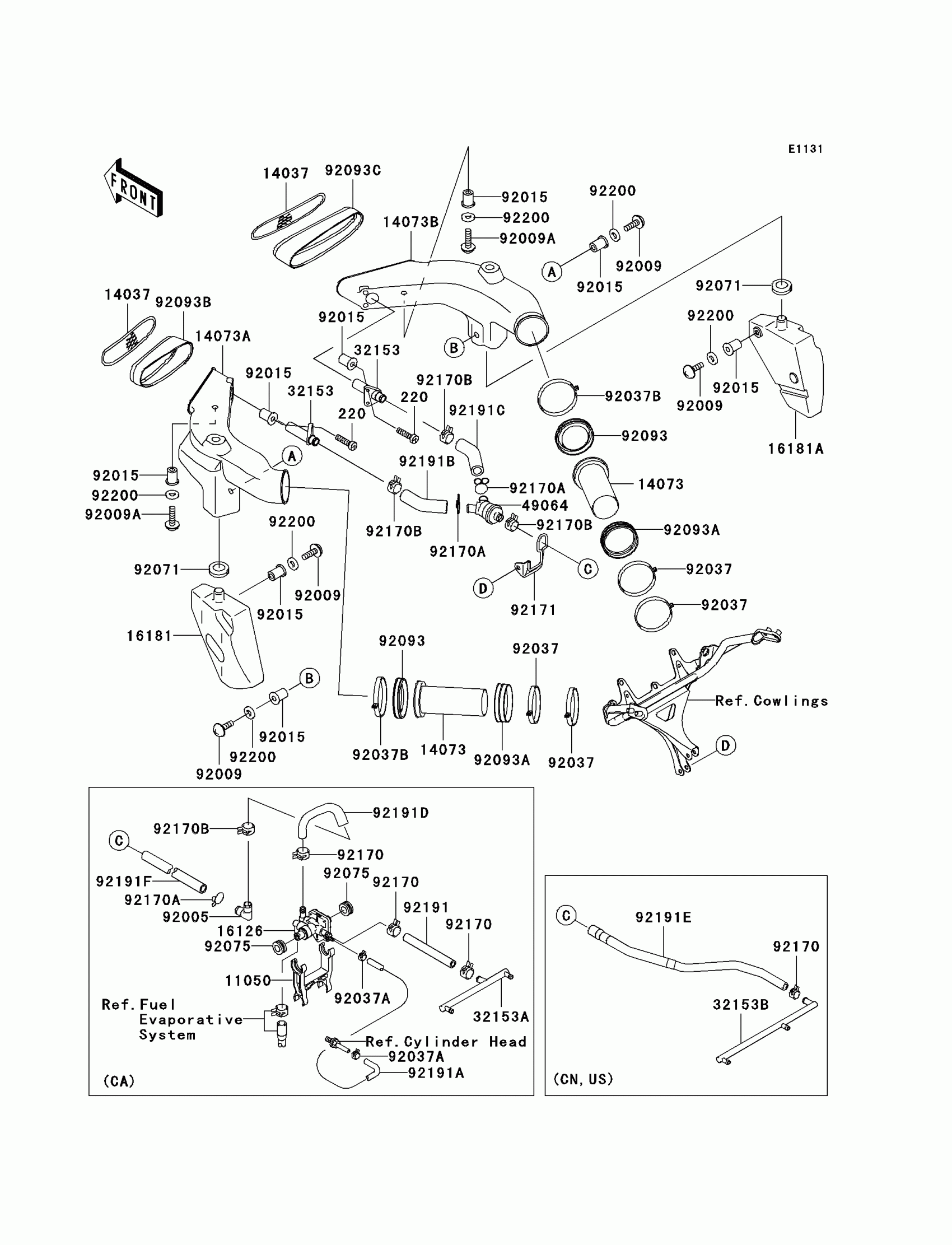

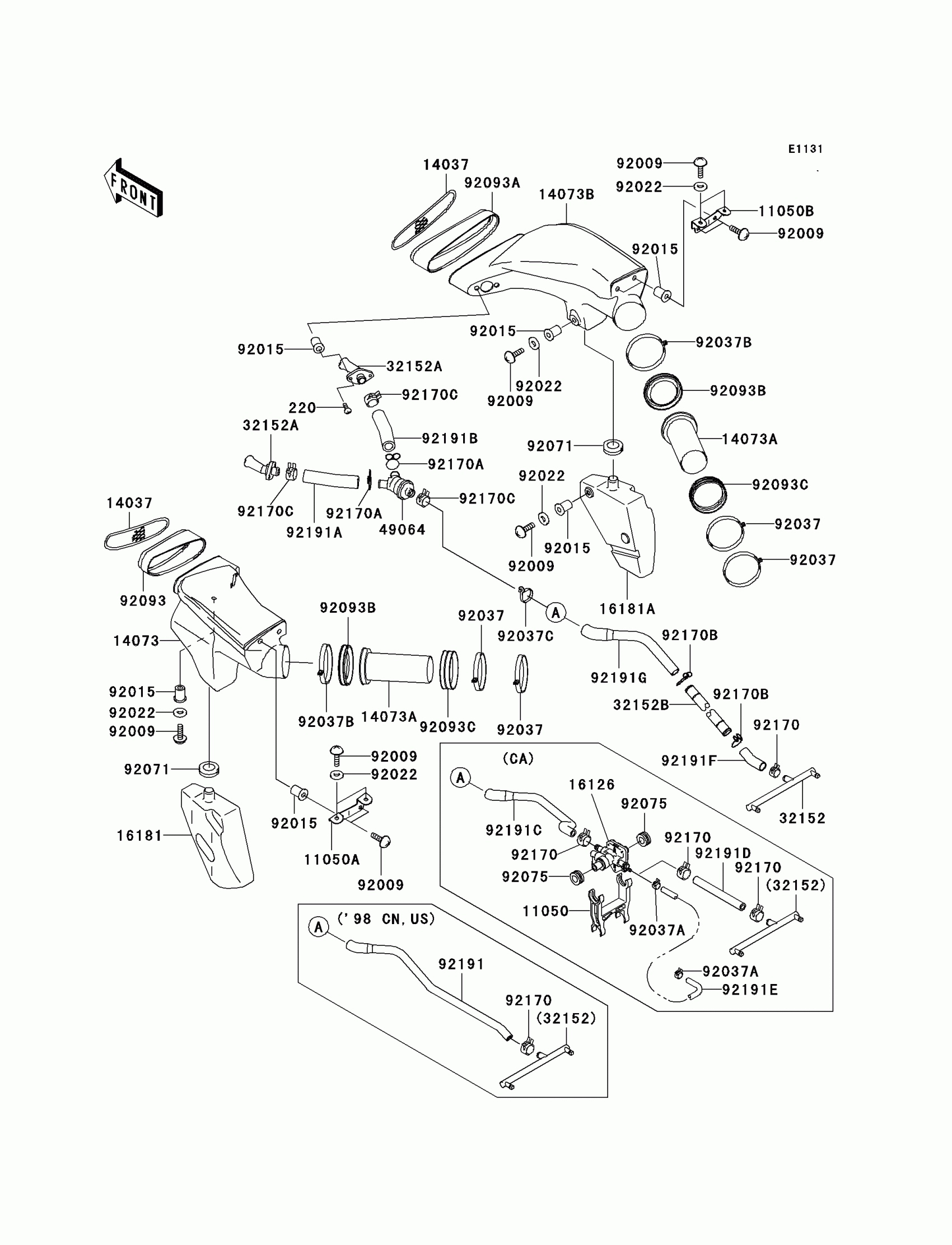

Kawasaki Ninja® ZX™-9R Air Duct Diagram

#

Description
Price

11050A

BRACKET,LH

11050-1513

Unavailable

11050B

BRACKET,RH

11050-1514

Unavailable

14037

SCREEN,AIR DUCT

14037-1246

Unavailable

14073

DUCT,AIR LH,M.F.C.GRAY

14073-1705-E4

Unavailable

14073A

DUCT,AIR FILTER

14073-1706

$32.61

14073B

DUCT,AIR RH,M.F.C.GRAY

14073-1707-E4

Unavailable

16181

TANK-RESONATOR,LH

16181-1089

$51.88

16181A

TANK-RESONATOR,RH

16181-1090

$51.88

32152

PIPE

32152-1042

$34.62

32152A

PIPE

32152-1568

Unavailable

49064

FILTER-AIR

49064-1061

$28.88

92009

SCREW,5X16,BLACK

92009-1654

$2.17

92015

NUT,WELL,5MM

92015-1757

$5.58

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$2.99

92037

CLAMP,AIR CLEANER

92037-129

$15.76

92037B

CLAMP

92037-1654

$7.04

92037C

CLAMP,SPEED,L=80.5

92037-1903

$5.99

92071

GROMMET,AIR FILTER

92071-1042

$5.55

92093

SEAL,AIR DUCT,LH

92093-1454

$19.97

92093A

SEAL,AIR DUCT,RH

92093-1455

Unavailable

92093B

SEAL,AIR FILTER DUCT

92093-1456

$9.25

92093C

SEAL

92093-1470

Unavailable

92170A

CLAMP

92170-1486

$4.10

92170C

CLAMP

92170-1909

$3.55

220

SCREW-PAN-CROSS,5X20

220D0520

Unavailable

92191A

TUBE,LH

92191-1181

Unavailable

92191B

TUBE,RH

92191-1182

$6.05

11050

BRACKET

11050-1509

$32.93

16126

VALVE

16126-1346

Unavailable

32152B

PIPE

32152-1975

Unavailable

92037A

CLAMP,TUBE

92037-1461

$2.93

92075

DAMPER,MUFFLER

92075-1621

$8.05

92170

CLAMP

92170-1118

$5.69

92170

CLAMP

92170-1118

$5.69

92170B

CLAMP

92170-1695

$2.27

92191C

TUBE

92191-1190

Unavailable

92191D

TUBE

92191-1191

$5.15

92191E

TUBE

92191-1192

$12.54

92191F

TUBE,9X15X40

92191-1341

Unavailable

92191G

TUBE,AIR VENT

92191-1342

Unavailable
