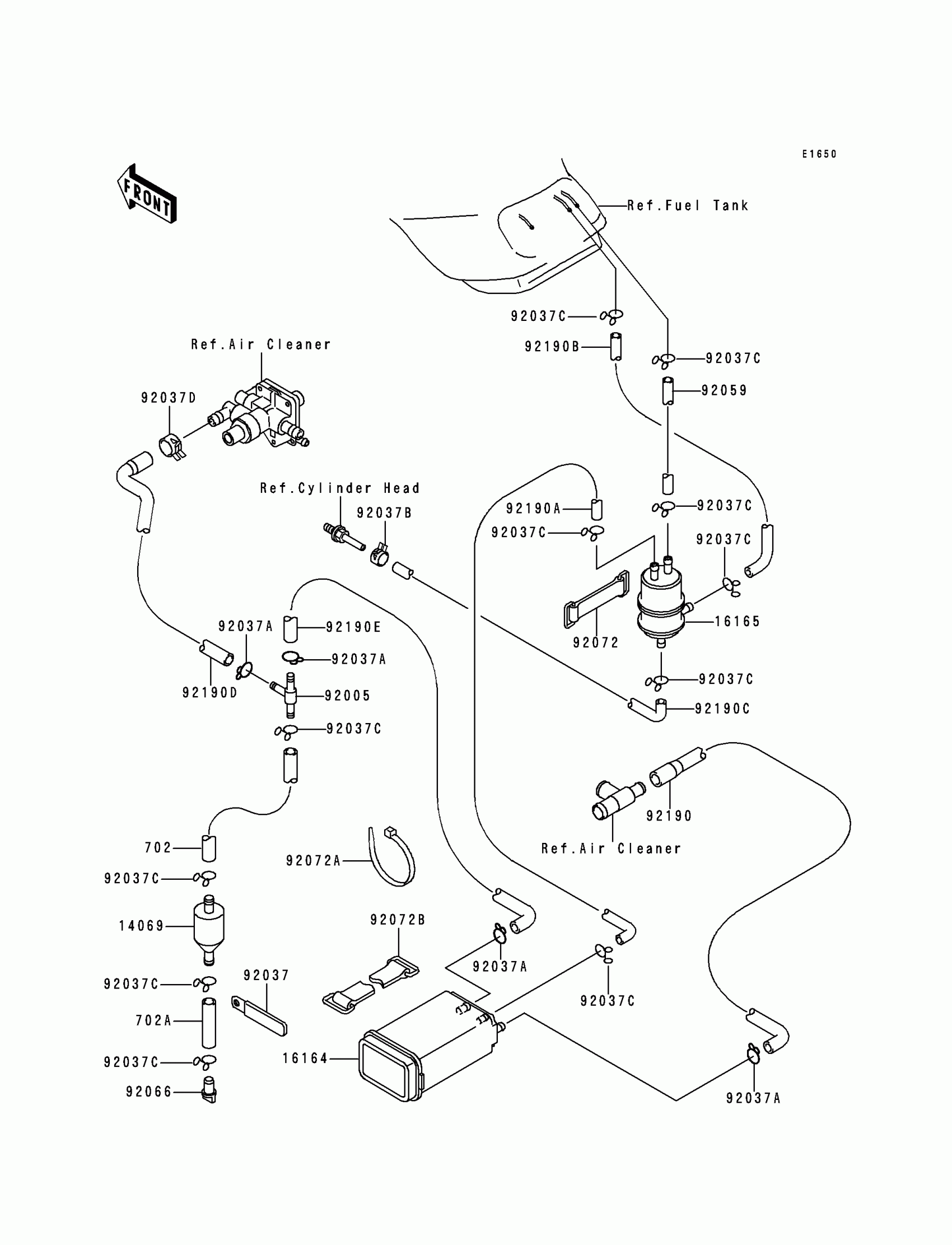

Kawasaki Ninja® ZX™-9R Fuel Evaporative System Diagram

Description

Price

702

TUBE-RUBBER,7X10X230

702A07230

$10.53

702A

TUBE-RUBBER

702A0740

Unavailable

14069

BREATHER

14069-1051

$8.09

16164

CANISTER

16164-1052

$134.03

16165

SEPARATOR

16165-1001

$81.73

92005

FITTING,T-TYPE

92005-1119

$23.15

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP-HOSE

92037-1104

$1.27

92037B

CLAMP,TUBE

92037-1461

$3.08

92037C

CLAMP,TUBE

92037-147

$5.84

92037D

CLAMP

92037-2082

$1.27

92059

TUBE,5X10X220,BLUE

92059-1525

Unavailable

92066

PLUG,DRAIN

92066-1211

$6.75

92072

BAND,L=50

92072-066

$12.72

92072A

BAND,L=202

92072-1195

$1.34

92072B

BAND,L=200

92072-1253

Unavailable

92190

TUBE,CANISTER-FITTING,GREEN

92190-1520

Unavailable

92190A

TUBE,SEPARATOR-CANISTER,BLUE

92190-1521

Unavailable

92190B

TUBE,TANK-SEPARATOR,RED

92190-1522

Unavailable

92190C

TUBE,SEPARATOR-HOLDER,WHITE

92190-1523

Unavailable

92190D

TUBE,VALVE-3WAY,YELLOW

92190-1524

Unavailable

92190E

TUBE,3WAY-CANISTER,YELLOW

92190-1525

Unavailable
