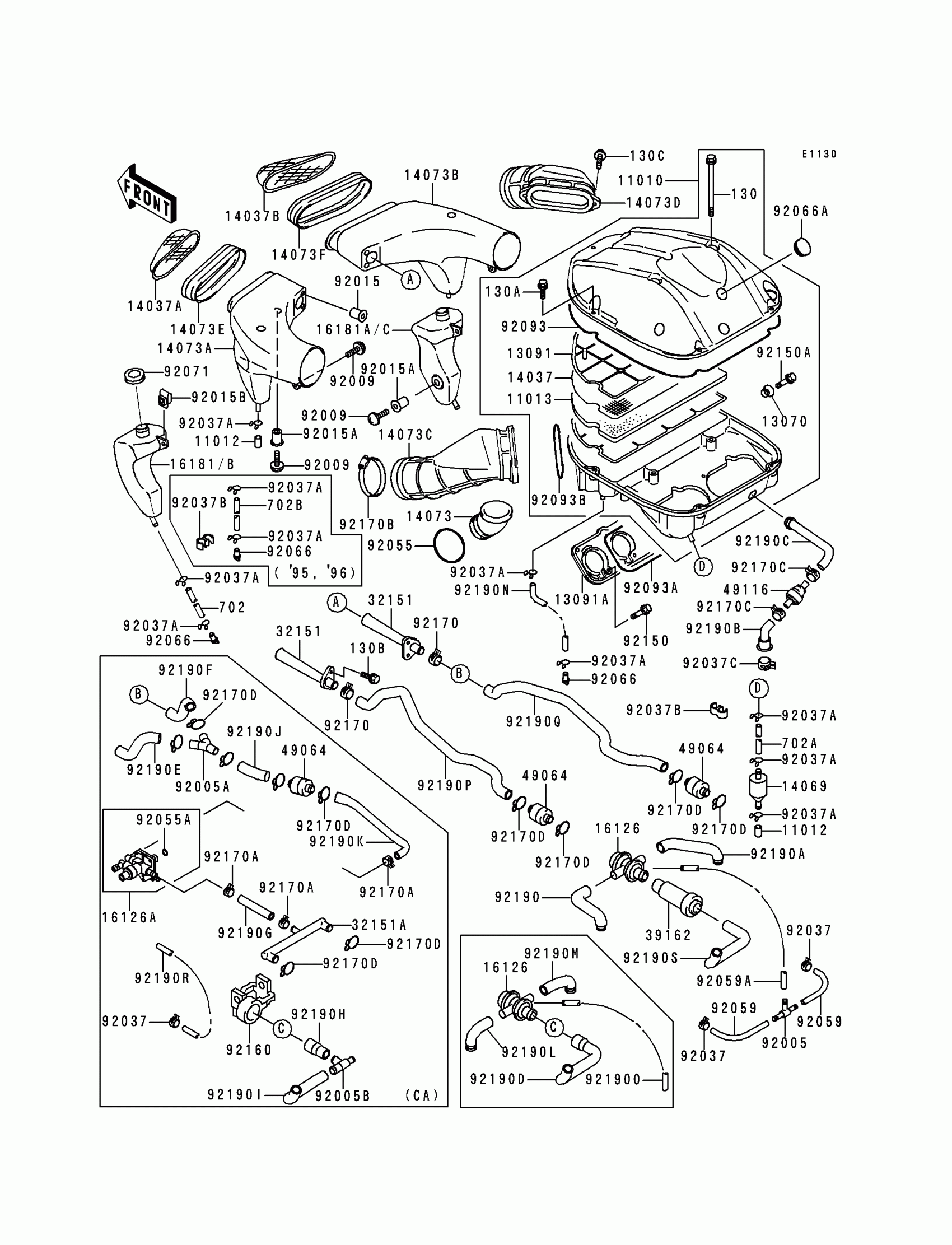

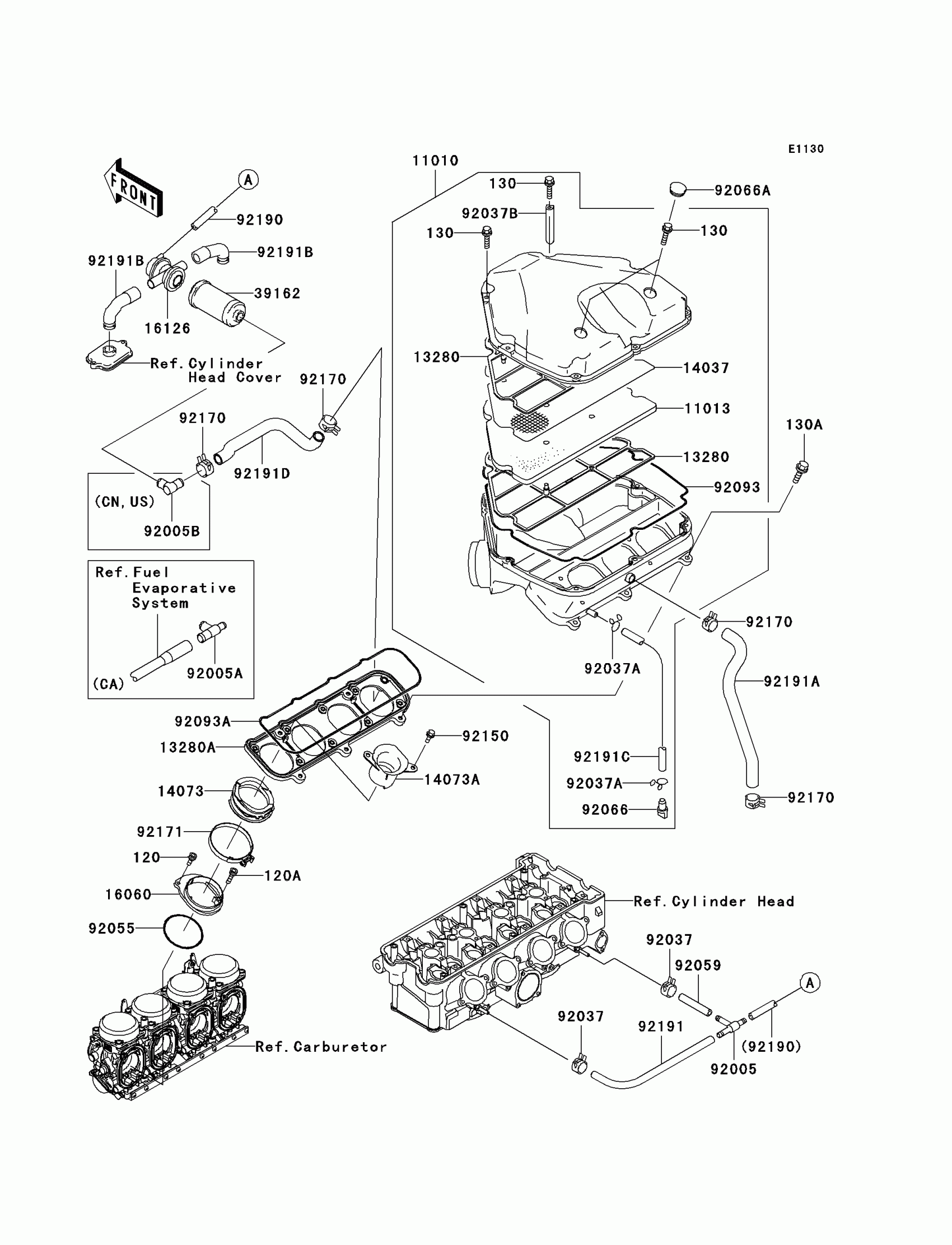

Kawasaki Ninja® ZX™-9R Air Cleaner Diagram

#

Description
Price

11010

FILTER-ASSY-AIR

11010-1511

Unavailable

11012

CAP

11012-1899

$3.66

11013

ELEMENT-AIR FILTER

11013-1232

$35.14

13070

GUIDE,AIR FILTER

13070-1230

Unavailable

13091

HOLDER

13091-1864

Unavailable

13091A

HOLDER,AIR FILTER

13091-1865

Unavailable

14037

SCREEN,AIR FILTER

14037-1182

Unavailable

14037A

SCREEN,LH

14037-1185

Unavailable

14037B

SCREEN,RH

14037-1186

Unavailable

14069

BREATHER

14069-1051

$7.76

14073

DUCT,AIR FILTER

14073-1575

$31.13

14073A

DUCT,AIR INTAKE,FR,LH

14073-1589

$123.63

14073B

DUCT,AIR INTAKE,FR,RH

14073-1590

$123.63

14073C

DUCT,AIR INTAKE,RR,LH

14073-1591

Unavailable

14073D

DUCT,AIR INTAKE,RR,RH

14073-1592

Unavailable

14073E

DUCT,AIR INTAKE,COWL,LH

14073-1595

Unavailable

14073F

DUCT,AIR INTAKE,COWL,RH

14073-1596

Unavailable

16126

VALVE,AIR SWITCH

16126-1104

$197.28

16181B

TANK-RESONATOR,LH

16181-1074

Unavailable

16181C

TANK-RESONATOR,RH

16181-1075

Unavailable

32151

PIPE

32151-1572

Unavailable

49116

VALVE-ASSY

49116-1116

Unavailable

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92009

SCREW,6X16

92009-1621

Unavailable

92015

NUT,WELL,5MM

92015-1640

$5.58

92015A

NUT

92015-1700

$6.55

92015B

NUT,CLIP,6MM

92015-1904

$4.93

92037A

CLAMP,TUBE

92037-147

$5.61

92037B

CLAMP,HOSE

92037-1603

$3.81

92037C

CLAMP

92037-1730

$8.39

92055

RING-O,67.7X3.1

92055-1434

$7.52

92059

TUBE,FUEL,4X9X140

92059-1230

$14.40

92066

PLUG,DRAIN

92066-1211

$6.48

92066A

PLUG

92066-1389

$3.25

92071

GROMMET,AIR FILTER

92071-1013

$5.61

92093

SEAL

92093-1364

Unavailable

92093A

SEAL,HOLDER

92093-1365

Unavailable

92093B

SEAL

92093-1366

Unavailable

92150

BOLT,5X16

92150-1363

$3.35

92150A

BOLT

92150-1767

Unavailable

92170

CLAMP

92170-1060

$7.93

92170B

CLAMP

92170-1307

$18.51

92170C

CLAMP,BRAKE HOSE

92170-1434

$11.81

92190B

TUBE,BREATHER

92190-1482

Unavailable

92190C

TUBE

92190-1483

Unavailable

130

BOLT-FLANGED

130H06105

Unavailable

130A

BOLT-FLANGED,6X25

130H0625

Unavailable

130B

BOLT-FLANGED

130J0520

Unavailable

130C

BOLT-FLANGED,6X30,BLACK

130J0630

Unavailable

702

TUBE-RUBBER

702A07360

Unavailable

702A

TUBE-RUBBER,7X10X400

702A07400

$10.11

702B

TUBE-RUBBER

702A07515

Unavailable

92190N

TUBE,DRAIN

92190-1549

Unavailable

16126A

VALVE,CANISTER

16126-1272

Unavailable

32151A

PIPE

32151-1598

$23.98

39162

SILENCER-INTAKE

39162-1003

$69.57

49064

FILTER-AIR

49064-1055

$21.88

49064

FILTER-AIR

49064-1055

$21.88

92005A

FITTING,Y-TIPE

92005-1250

$10.54

92005B

FITTING,T-TYPE

92005-1252

$10.63

92037

CLAMP,TUBE

92037-1461

$2.93

92037

CLAMP,TUBE

92037-1461

$2.93

92055A

RING-O

92055-1524

$4.10

92059A

TUBE,4X9X500,WHITE

92059-1533

$14.40

92160

DAMPER

92160-1489

Unavailable

92170A

CLAMP

92170-1118

$5.69

92170D

CLAMP

92170-1486

$4.10

92170D

CLAMP

92170-1486

$4.10

92190

TUBE,HEAD-AIR SWITCH,LH

92190-1197

Unavailable

92190A

TUBE,HEAD-AIR SWITCH,RH

92190-1198

Unavailable

92190E

TUBE,AIR VENT,FR,LH

92190-1505

$9.92

92190F

TUBE,AIR VENT,FR,RH

92190-1506

Unavailable

92190G

TUBE,VALVE-PIPE

92190-1507

Unavailable

92190H

TUBE,ACV-FITTING

92190-1512

Unavailable

92190I

TUBE,FITTING-AIR FILTER

92190-1513

Unavailable

92190J

TUBE,FITTING-FILTER

92190-1516

Unavailable

92190K

TUBE,FILTER-VALVE

92190-1517

Unavailable

92190L

TUBE,HEAD COVER-VALVE

92190-1543

$11.36

92190M

TUBE

92190-1544

$10.41

92190O

TUBE,3WAY-AVT

92190-1558

Unavailable

92190P

TUBE,AIR VENT,FR,LH

92190-1561

Unavailable

92190Q

TUBE,AIR VENT,FR,RH

92190-1562

Unavailable

92190R

TUBE

92190-1564

Unavailable

92190S

TUBE,SILENCER-AIR FILTER

92190-1582

Unavailable
