1997 Kawasaki Ninja® ZX™-7RR Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1997 Kawasaki Ninja® ZX™-7RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

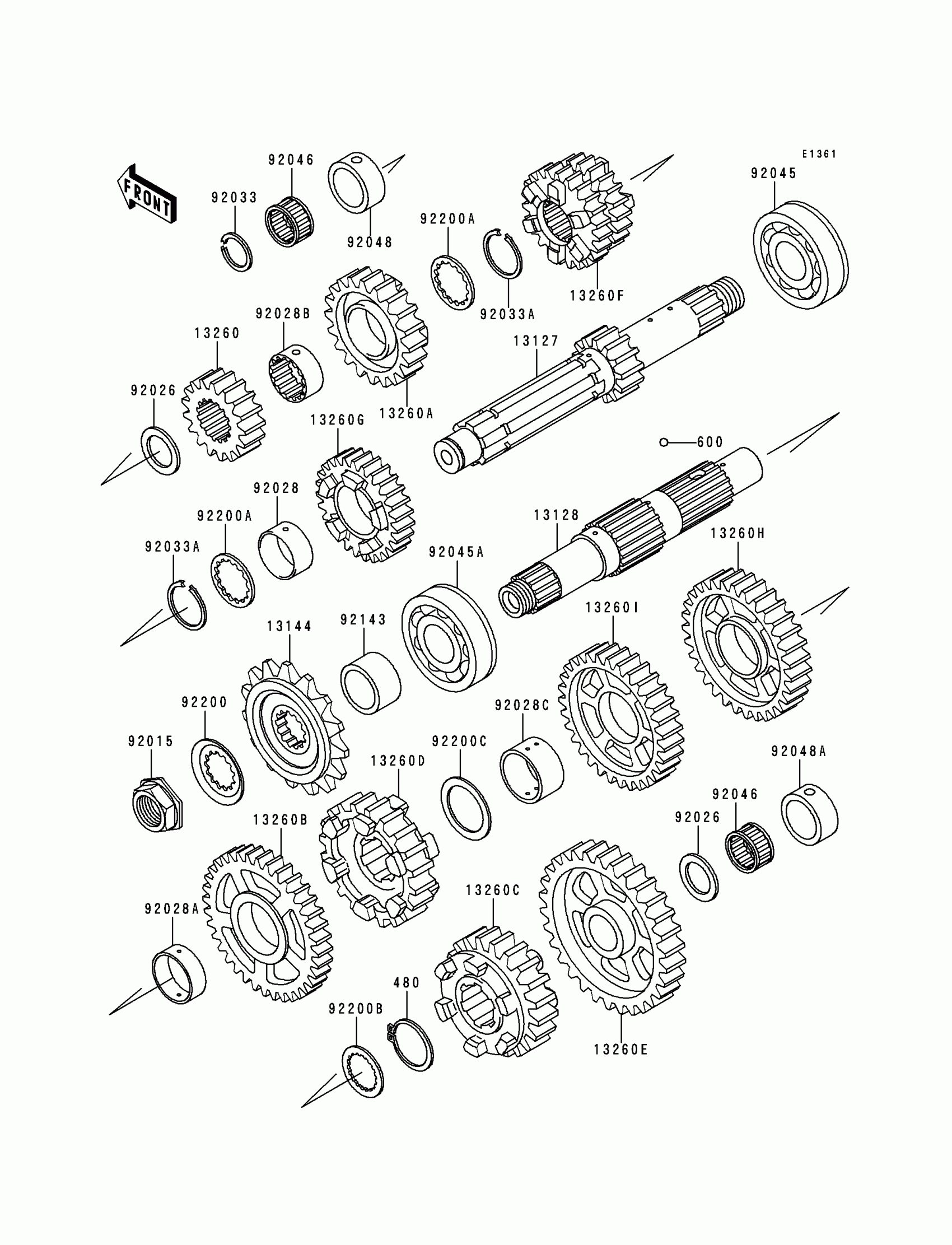

1997 Kawasaki Ninja® ZX™-7RR Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

480

CIRCLIP

480J2900

1
Out of stock

600

BALL-STEEL,5/32

600A0500

1
Out of stock

13127

SHAFT-TRANSMISSION INPUT

13127-1245

1
Out of stock

13128

SHAFT-TRANSMISSION OUTPUT

13128-1208

1
Out of stock

13144

SPROCKET-OUTPUT,16T

13144-1256

1
Out of stock

13260

GEAR,INPUT 2ND,19T

13260-1530

1
Out of stock

13260A

GEAR,INPUT TOP,25T

13260-1533

1
Out of stock

13260B

GEAR,OUTPUT 2ND,36T

13260-1534

1
Out of stock

13260C

GEAR,OUTPUT 5TH,31T

13260-1536

1
Out of stock

13260D

GEAR,OUTPUT TOP,30T

13260-1537

1
Out of stock

13260E

GEAR,OUTPUT LOW,38T

13260-1540

1
Out of stock

13260F

GEAR,INPUT 3RD&4TH,21T&22T

13260-1610

1
Out of stock

13260G

GEAR,INPUT 5TH,24T

13260-1611

1
Out of stock

13260H

GEAR,OUTPUT 3RD,34T

13260-1612

1
Out of stock

13260I

GEAR,OUTPUT 4TH,31T

13260-1614

1
Out of stock

92015

NUT,20MM

92015-1963

1
Out of stock

92026

SPACER,22X35.5X2.1

92026-1224

1
Out of stock

92028

BUSHING,INPUT GEAR

92028-1449

1
Out of stock

92028A

BUSHING,OUTPUT GEAR

92028-1707

1
Out of stock

92028B

BUSHING,INPUT TOP GEAR

92028-1752

1
Out of stock

92028C

BUSHING,OUTPUT,3RD&4TH

92028-1753

1
Out of stock

92033

RING-SNAP,20X25.5X1.2

92033-025

1
Out of stock

92033A

RING-SNAP,25.9X30.6X1.2

92033-1037

1
Out of stock

92045

BEARING-BALL,6305N2SH2

92045-1224

1
Out of stock

92045A

BEARING-BALL,5305X

92045-1323

1
Out of stock

92046

BEARING-NEEDLE,FWF-223014

92046-031

1
Out of stock

92048

RACE,NEEDLE BEARING

92048-1066

1
Out of stock

92048A

RACE,0RZ30X38X17PX1

92048-1067

1
Out of stock

92143

COLLAR,ENGINE SPROCKET

92143-1788

1
Out of stock

92200

WASHER

92200-1065

1
Out of stock

92200A

WASHER,28.5X34.0X1.5

92200-1240

1
Out of stock

92200B

WASHER,TOOTHED,28X40X2

92200-1277

1
Out of stock

92200C

WASHER,29.9X40X1.5

92200-1278

1
Out of stock
