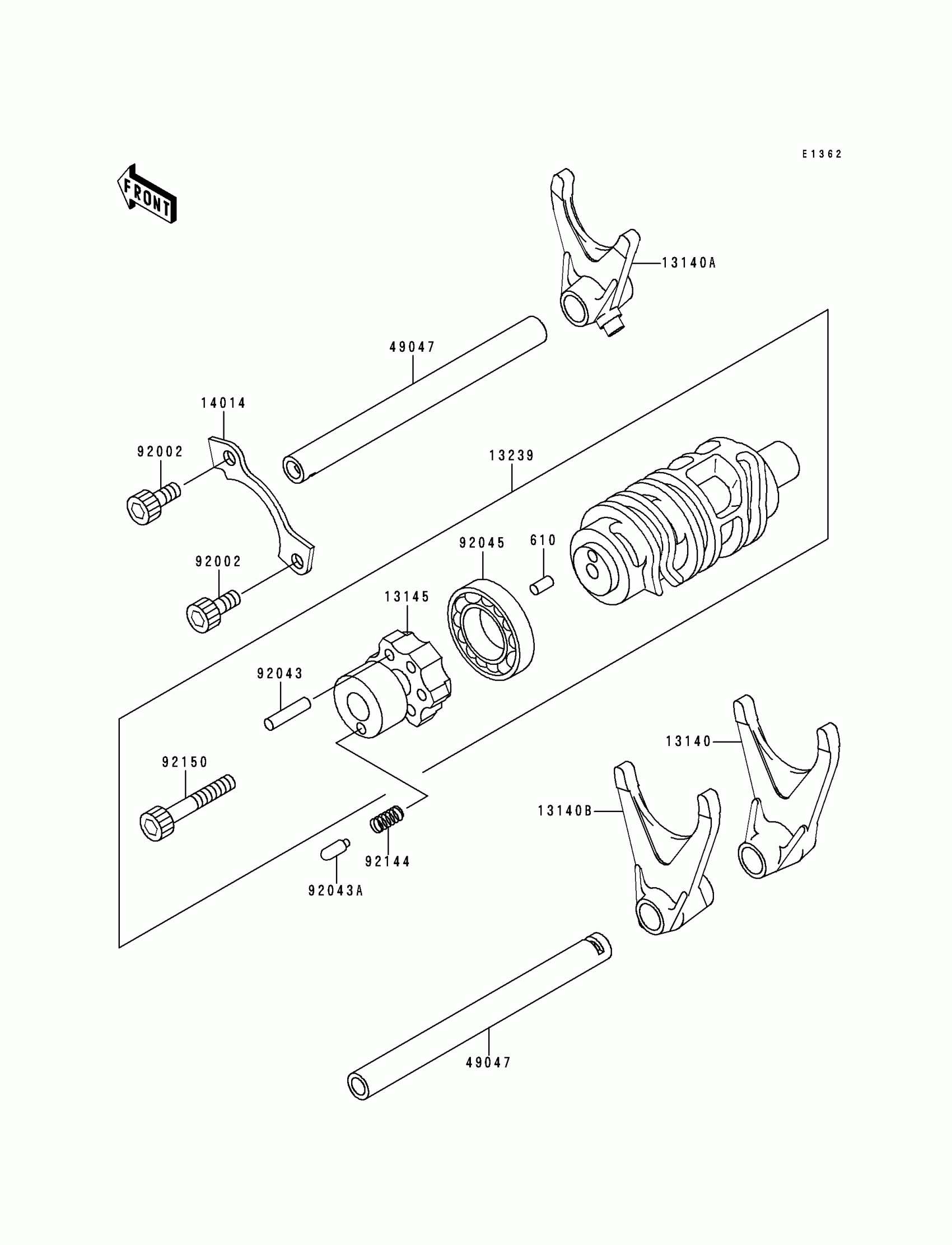

Kawasaki Ninja® ZX™-7RR Gear Change Drum/Shift Fork(s) Diagram

Description

Price

610

ROLLER,4X8

610A0408

$3.29

13140

FORK-SHIFT,OUTPUT,TOP

13140-1254

$72.26

13140A

FORK-SHIFT,INPUT,3RD&4TH

13140-1255

$72.26

13140B

FORK-SHIFT,OUTPUT,5TH

13140-1256

$83.04

13145

CAM-CHANGE DRUM

13145-1083

$54.55

13239

DRUM-ASSY-CHANGE

13239-1193

$240.36

14014

PLATE-POSITION

14014-1126

$4.41

49047

ROD-SHIFT

49047-1082

$32.81

92002

BOLT,SOCKET,6X14

92002-1192

$4.92

92043

PIN,5X21.8

92043-1518

$2.27

92043A

92043-1523

Unavailable

92045

BEARING-BALL,16005

92045-1045

$28.80

92144

SPRING

92144-1245

$3.25

92150

BOLT,SOCKET,6X40

92150-1958

$4.85
