1997 Kawasaki Ninja® ZX™-7RR Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1997 Kawasaki Ninja® ZX™-7RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

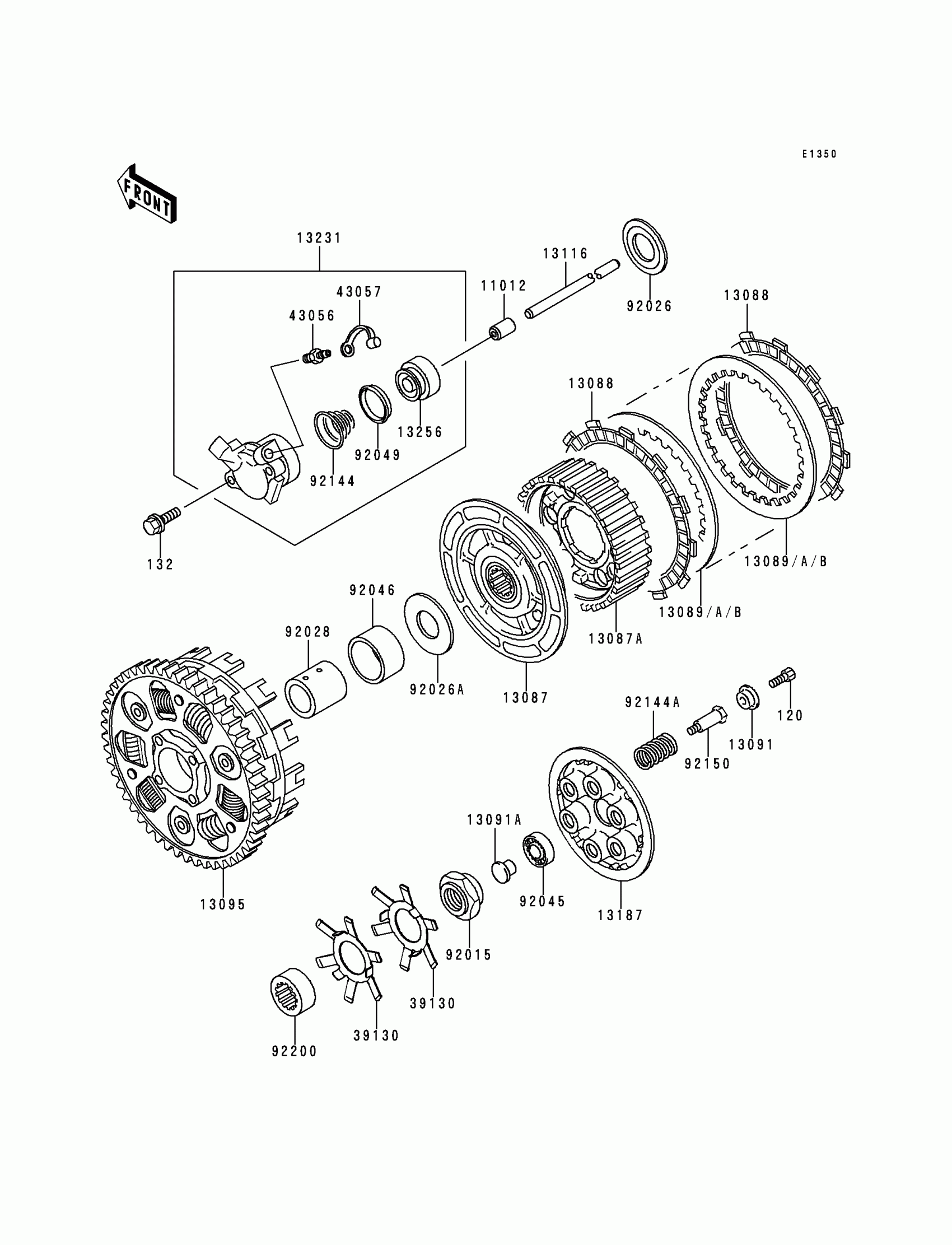

1997 Kawasaki Ninja® ZX™-7RR Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X16

120Q0616

1
Out of stock

132

BOLT-FLANGED-SMALL,6X25

132J0625

1
Out of stock

11012

CAP,PUSHROD

11012-1569

1
Out of stock

13087

HUB-CLUTCH

13087-1157

1

$234.08

In stock

13087A

HUB-CLUTCH

13087-1165

1
Out of stock

13088

PLATE-FRICTION

13088-1087

1

$18.28

In stock

13089

PLATE-CLUTCH,T=2.0

13089-026

—

$10.14

In stock

13089A

PLATE-CLUTCH,T=2.3

13089-1004

—

$10.41

In stock

13089B

PLATE-CLUTCH,T=2.6

13089-1067

—

$10.84

In stock

13091

1

$9.69

In stock

13091A

HOLDER,CLUTCH PUSH ROD

13091-1085

1
Out of stock

13095

HOUSING-COMP-CLUTCH

13095-1328

1

$570.34

In stock

13116

ROD-PUSH

13116-1151

1

$39.15

In stock

13187

1

$91.94

In stock

13231

RELEASE-ASSY-CLUTCH

13231-1065

1

$155.47

In stock

13256

PISTON

13256-1052

1
Out of stock

39130

SPRING-LEAF

39130-1071

1

$8.76

In stock

43056

BREATHER

43056-1052

1

$11.32

In stock

43057

CAP-BREATHER

43057-1001

1

$3.89

In stock

92015

NUT

92015-1929

1
Out of stock

92026

SPACER

92026-1356

1

$12.17

In stock

92026A

SPACER,25X54X3

92026-1467

1

$9.73

In stock

92028

BUSHING

92028-1783

1

$54.69

In stock

92045

1

$12.85

In stock

92046

BEARING-NEEDLE

92046-1250

1
Out of stock

92049

SEAL-OIL,PISTON

92049-1165

1
Out of stock

92144

1

$6.75

In stock

92144A

SPRING,CLUTCH

92144-1779

1

$7.90

In stock

92150

BOLT,CLUTCH

92150-1477

1

$6.44

In stock

92200

WASHER

92200-1205

1
Out of stock
