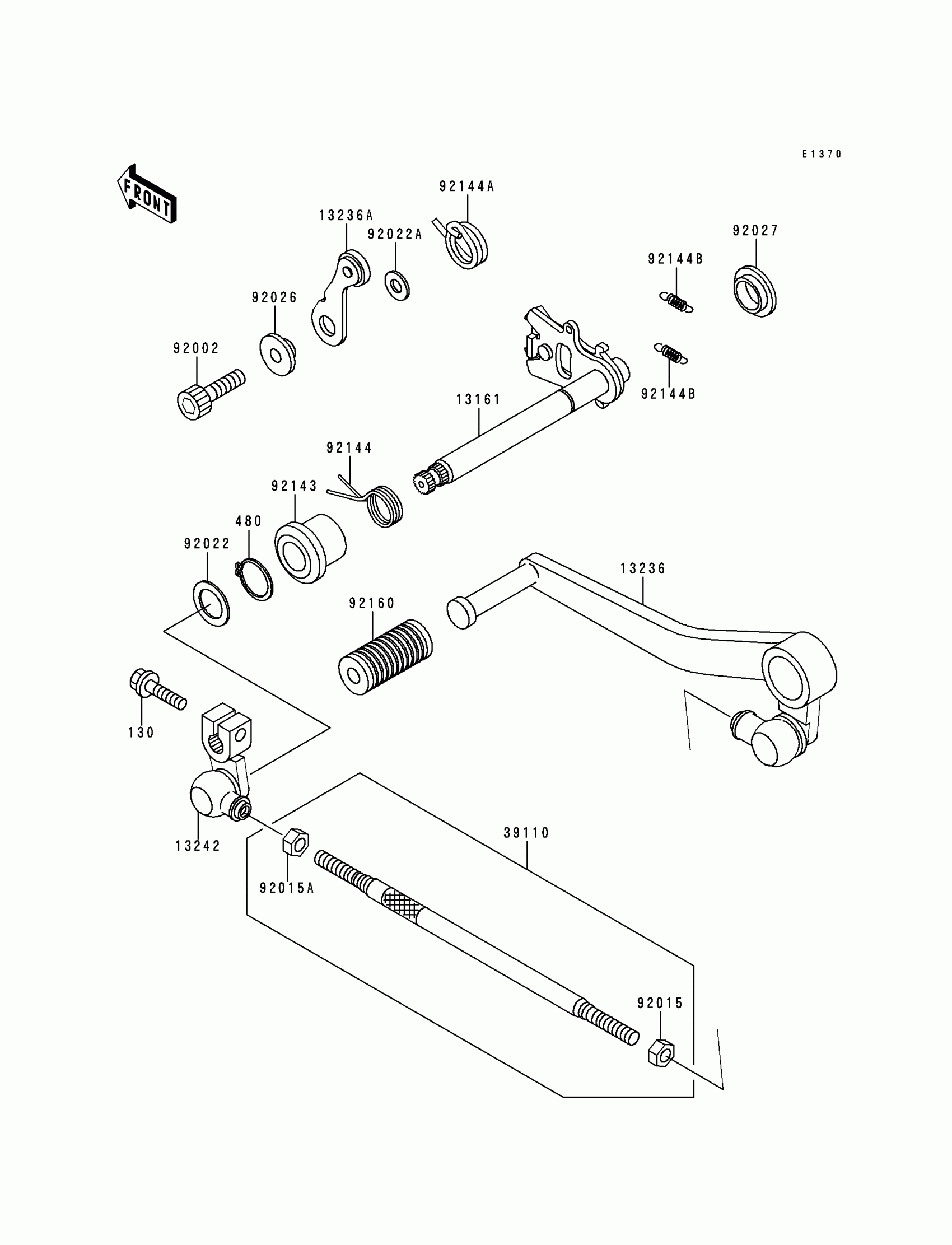

Kawasaki Ninja® ZX™-7RR Gear Change Mechanism Diagram

Description

Price

130

BOLT-FLANGED,6X20

130S0620

Unavailable

480

CIRCLIP-TYPE-C,13MM

480J1300

$2.99

13161

LEVER-COMP-CHANGE SHAFT

13161-1223

$84.33

13236

LEVER-COMP,CHANGE PEDAL

13236-1204

$66.46

13236A

LEVER-COMP,POSITION

13236-1253

$10.54

13242

LEVER-ASSY-CHANGE,LINK

13242-1278

$53.33

39110

ROD-ASSY-TIE

39110-1100

$16.78

92002

BOLT,SOCKET,6X16

92002-1778

$3.81

92015

NUT,6MM

92015-1443

$2.99

92015A

NUT,LEFT HANDED,6MM

92015-1444

$3.57

92022

WASHER,13.3X20X1

92022-1496

$2.99

92022A

WASHER,6X12.8X1.2

92022-1827

$3.57

92026

SPACER

92026-1217

$4.18

92027

COLLAR,CHANGE SHAFT,L=5.5

92027-1512

Unavailable

92143

COLLAR,RETURN SPRING

92143-1498

$8.10

92144

SPRING,CHANGE SHAFT RETURN

92144-1628

$9.14

92144A

SPRING,LEVER POSITION

92144-1873

$7.63

92144B

SPRING,CHANGE LEVER

92144-1975

$4.80

92160

DAMPER,CHANGE PEDAL

92160-1036

$3.85
