1997 Kawasaki Ninja® ZX™-7RR Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 1997 Kawasaki Ninja® ZX™-7RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

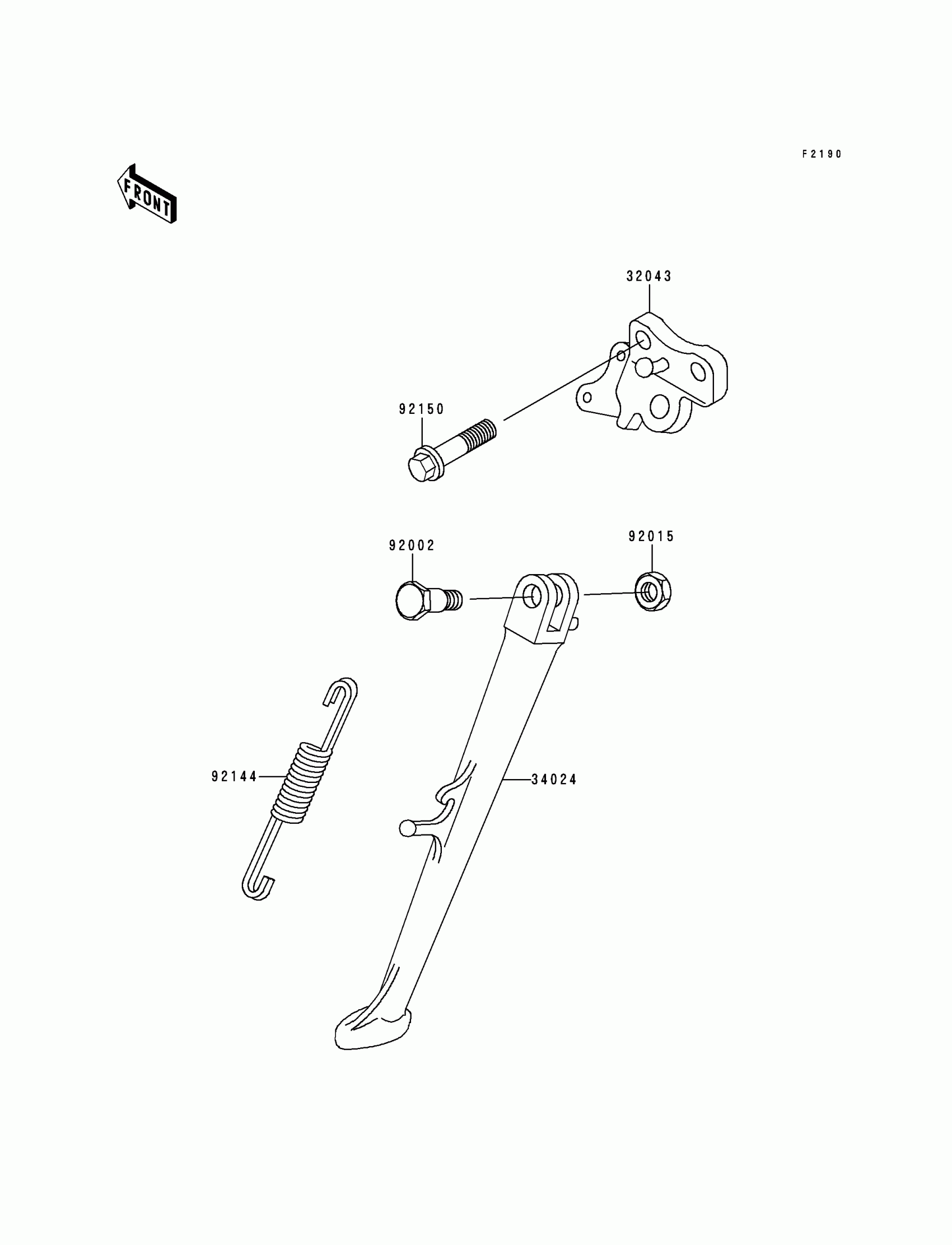

1997 Kawasaki Ninja® ZX™-7RR Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32043

BRACKET-STAND,SIDE

32043-1407

1
Out of stock

34024

STAND-SIDE

34024-1326

1
Out of stock

92002

BOLT,SIDE STAND

92002-1813

1
Out of stock

92015

NUT,LOCK,10MM,BLACK

92015-1188

1
Out of stock

92144

SPRING,SIDE STAND

92144-1127

1
Out of stock

92150

BOLT,FLANGED,10X35

92150-1353

1
Out of stock
