1997 Kawasaki Ninja® ZX™-7RR Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1997 Kawasaki Ninja® ZX™-7RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

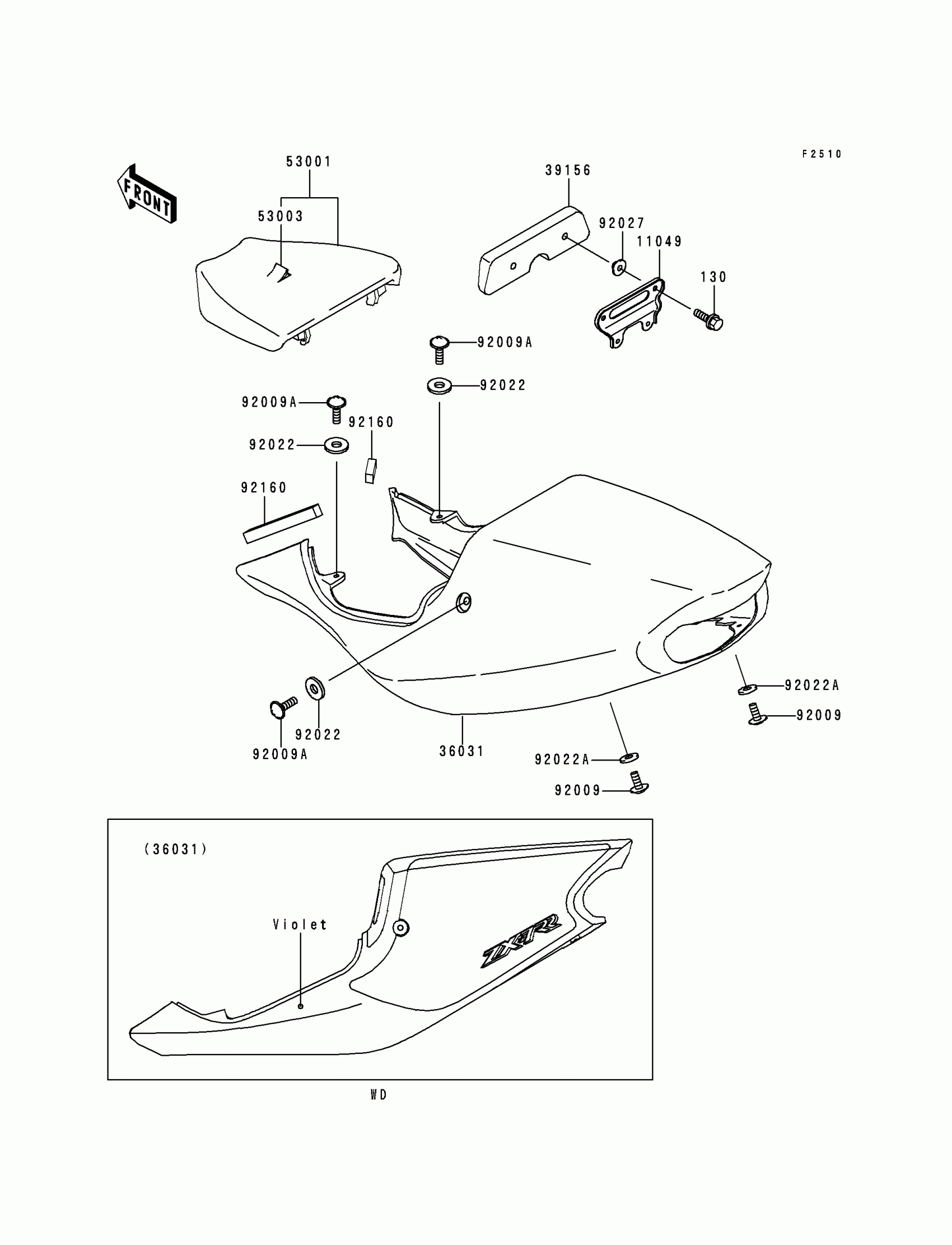

1997 Kawasaki Ninja® ZX™-7RR Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130J0620

1
Out of stock

11049

BRACKET,SEAT PAD

11049-1361

1
Out of stock

36031

COVER-SIDE,J.S.VIOLET

36031-5071-23

1
Out of stock

39156

PAD,SEAT COVER,BLACK

39156-1228-MA

1

$227.76

In stock

53001

SEAT-ASSY,FR,BLACK

53001-1792-MA

1

$367.70

In stock

53003

LEATHER,FRONT SEAT,BLACK

53003-1345-MA

1

$158.21

In stock

92009

SCREW,5X16,BLACK

92009-1654

1
Out of stock

92009A

SCREW,6X18

92009-1663

1
Out of stock

92022

WASHER,6.5X16X1

92022-1143

1
Out of stock

92022A

WASHER,NYLON,5.3X11.5X1.5

92022-1521

1
Out of stock

92027

COLLAR,L=7.4

92027-1848

1
Out of stock

92160

DAMPER

92160-1800

1
Out of stock
