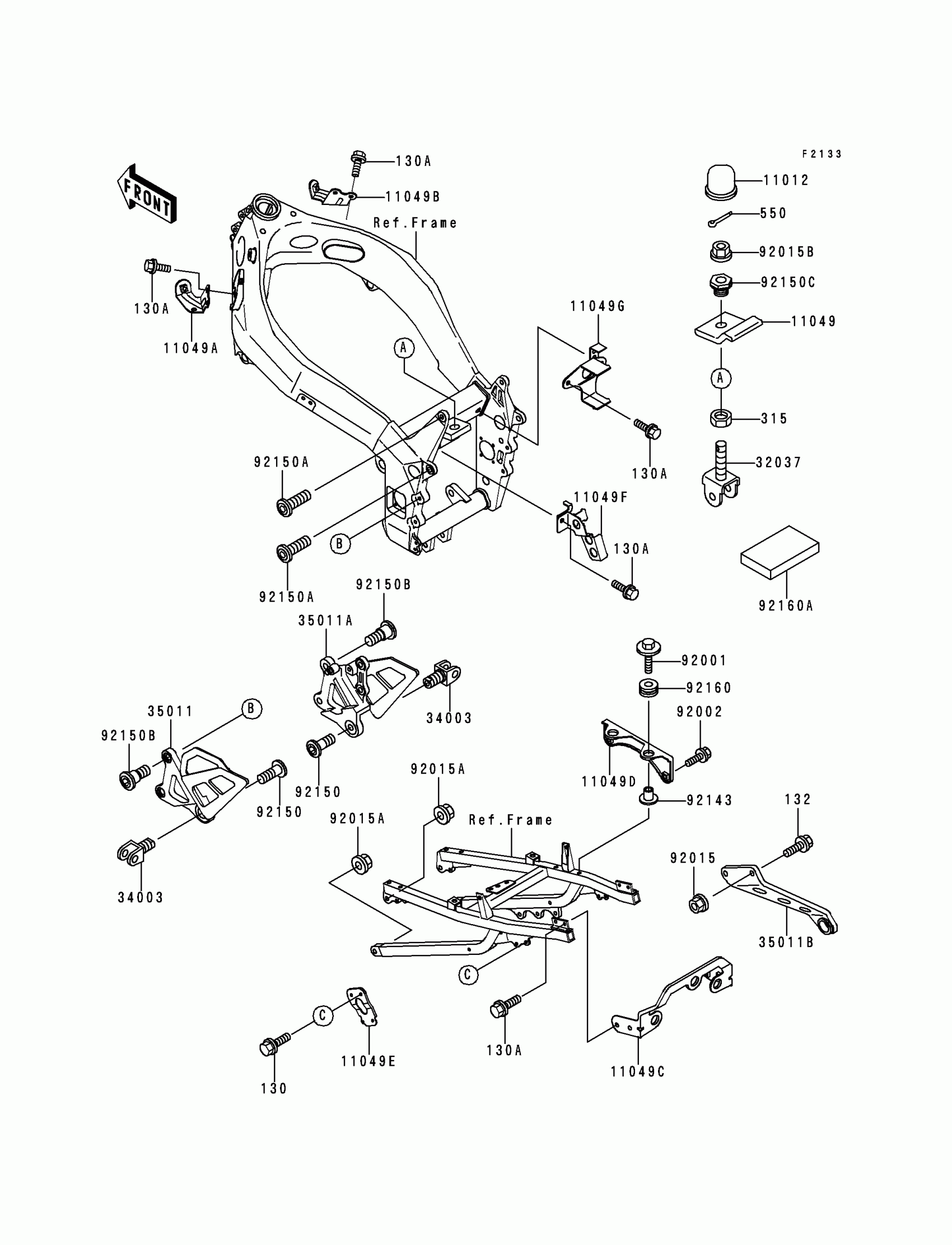

Kawasaki Ninja® ZX™-7RR Electro Bracket Diagram

#

Description
Price

130

BOLT-FLANGED,6X12

130J0612

Unavailable

130A

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

132

BOLT-FLANGED-SMALL,8X25

132E0825

$3.98

315

NUT-HEX-FINE,16MM

315B1600

Unavailable

550

PIN-COTTER,4.0X25

550D4025

Unavailable

11012

CAP

11012-1844

$9.25

11049

BRACKET,BATTERY CASE,FR

11049-1334

Unavailable

11049A

BRACKET,RADIATOR,LH

11049-1335

Unavailable

11049B

BRACKET,RADIATOR,RH

11049-1336

$14.00

11049C

BRACKET,TAIL LAMP

11049-1396

$51.23

11049D

BRACKET,IGNITER

11049-1397

$30.09

11049E

BRACKET,HELMET LOCK

11049-1409

Unavailable

11049F

BRACKET,FUEL FILTER

11049-1701

$16.63

11049G

BRACKET,FUEL PUMP

11049-1736

Unavailable

32037

BRACKET-SHOCKABSORBER

32037-1564

$49.20

34003

HOLDER-STEP

34003-1327

$37.75

35011

STAY,FR,LH

35011-1552

$147.58

35011A

STAY,FR,RH

35011-1553

$147.58

35011B

STAY,MUFFLER

35011-1779

$104.08

92001

BOLT,6X30

92001-1776

$4.25

92002

BOLT,6X14

92002-1656

$4.17

92015

NUT,FLANGED,8MM

92015-1406

$3.39

92015A

NUT,FLANGED,10MM

92015-1415

$3.57

92015B

NUT,FLANGED,16MM

92015-1881

$21.63

92143

COLLAR

92143-1353

$6.54

92150

BOLT,SOCKET,10X25

92150-1268

$4.67

92150A

BOLT,10X35

92150-1295

$9.49

92150B

BOLT,SOCKET,8X20

92150-1839

$1.57

92150C

BOLT,22X17

92150-1974

Unavailable

92160

DAMPER

92160-1162

$3.81

92160A

DAMPER,BATTERY

92160-1284

$16.71
