1997 Kawasaki Ninja® ZX™-7RR Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 1997 Kawasaki Ninja® ZX™-7RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

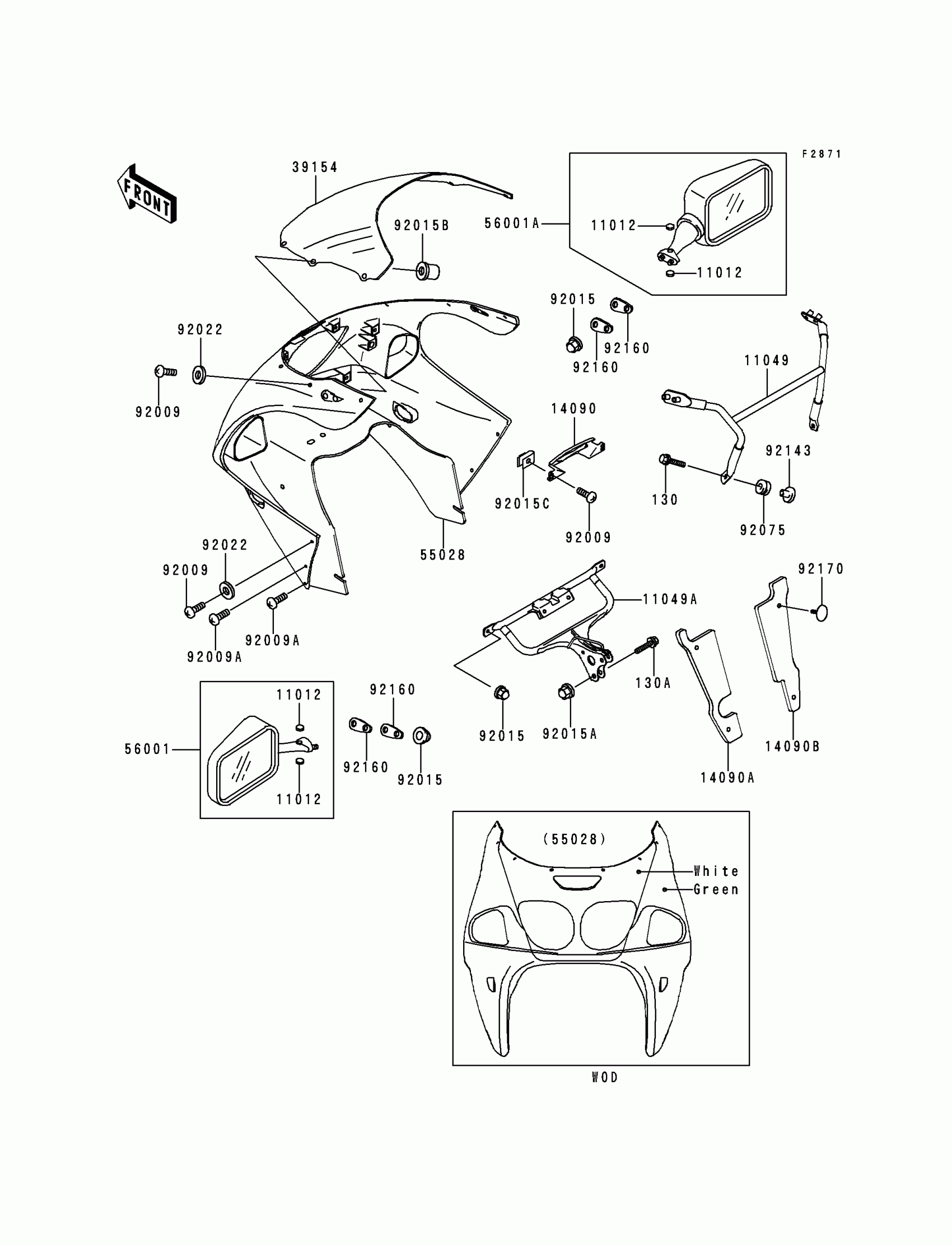

1997 Kawasaki Ninja® ZX™-7RR Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X25

130J0625

1
Out of stock

130A

BOLT-FLANGED,8X30

130J0830

1
Out of stock

11012

CAP,MIRROR

11012-1818

1

$2.75

In stock

11049

BRACKET,MIRROR

11049-1327

1
Out of stock

11049A

BRACKET,UPP COWLING

11049-1328

1

$329.51

In stock

14090

COVER,POSITION LAMP,WHITE

14090-1404-R1

1
Out of stock

14090A

COVER,HEAT GUARD,LH

14090-1649

1
Out of stock

14090B

COVER,HEAT GUARD,RH

14090-1650

1

$20.76

In stock

39154

WINDSHIELD

39154-1132

1
Out of stock

55028

COWLING,UPP,GREEN/WHITE

55028-1343-CK

1

$1,168.50

In stock

56001

MIRROR-ASSY,LH,EBONY

56001-1376-6C

1
Out of stock

56001A

MIRROR-ASSY,RH,EBONY

56001-1377-6C

1

$85.41

In stock

92009

SCREW,5X16,BLACK

92009-1654

1
Out of stock

92009A

SCREW,5X20,BLACK

92009-1656

1
Out of stock

92015

NUT,CAP,6MM,BLACK

92015-1170

1
Out of stock

92015A

NUT,CAP,8MM,BLACK

92015-1174

1
Out of stock

92015B

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92015C

NUT,5MM

92015-1798

1

$5.45

In stock

92022

1

$3.12

In stock

92075

DAMPER,RUBBER

92075-1123

1

$3.97

In stock

92143

COLLAR

92143-1353

1

$6.81

In stock

92160

DAMPER,MIRROR

92160-1089

1

$6.06

In stock

92170

CLAMP

92170-1442

1

$3.76

In stock
