1997 Kawasaki Ninja® ZX™-7RR Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1997 Kawasaki Ninja® ZX™-7RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

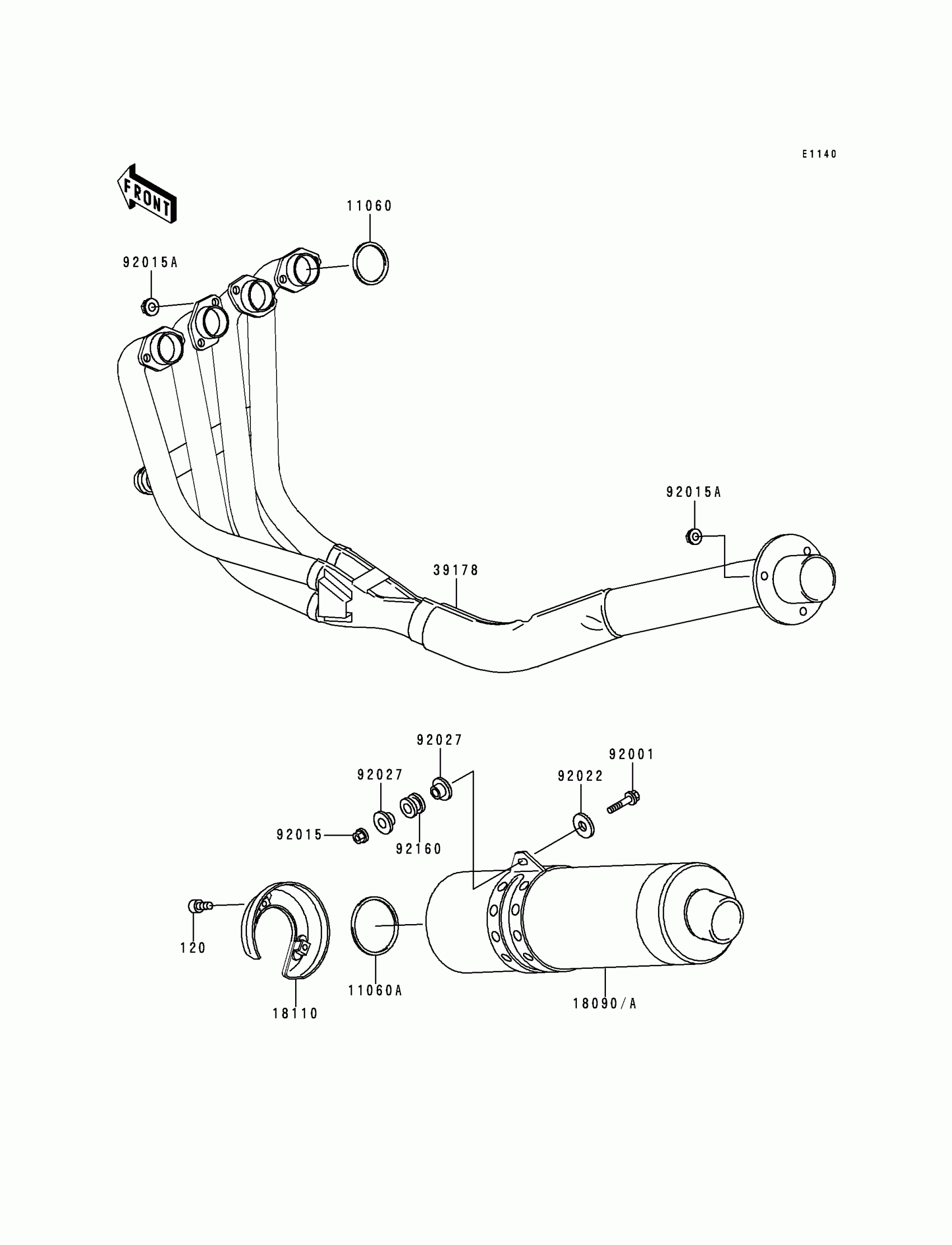

1997 Kawasaki Ninja® ZX™-7RR Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X10

120S0610

1
Out of stock

11060

GASKET,EXHAUST PIPE HOLDER

11060-1103

1
Out of stock

11060A

GASKET,MUFFLER CONNECTING

11060-1213

1
Out of stock

18090A

BODY-COMP-MUFFLER

18090-1535

1
Out of stock

18110

BODY END-MUFFLER

18110-1110

1
Out of stock

39178

1

$1,457.20

In stock

92001

BOLT,FLANGED,8X35

92001-1910

1
Out of stock

92015

NUT,8MM

92015-1143

1
Out of stock

92015A

NUT,LOCK,8MM

92015-1380

1
Out of stock

92022

WASHER,8.5X19X1.2

92022-3730

1
Out of stock

92027

COLLAR,FLANGED,8.8X10.6

92027-1653

1
Out of stock

92160

DAMPER,MUFFLER MOUNT

92160-1116

1
Out of stock
