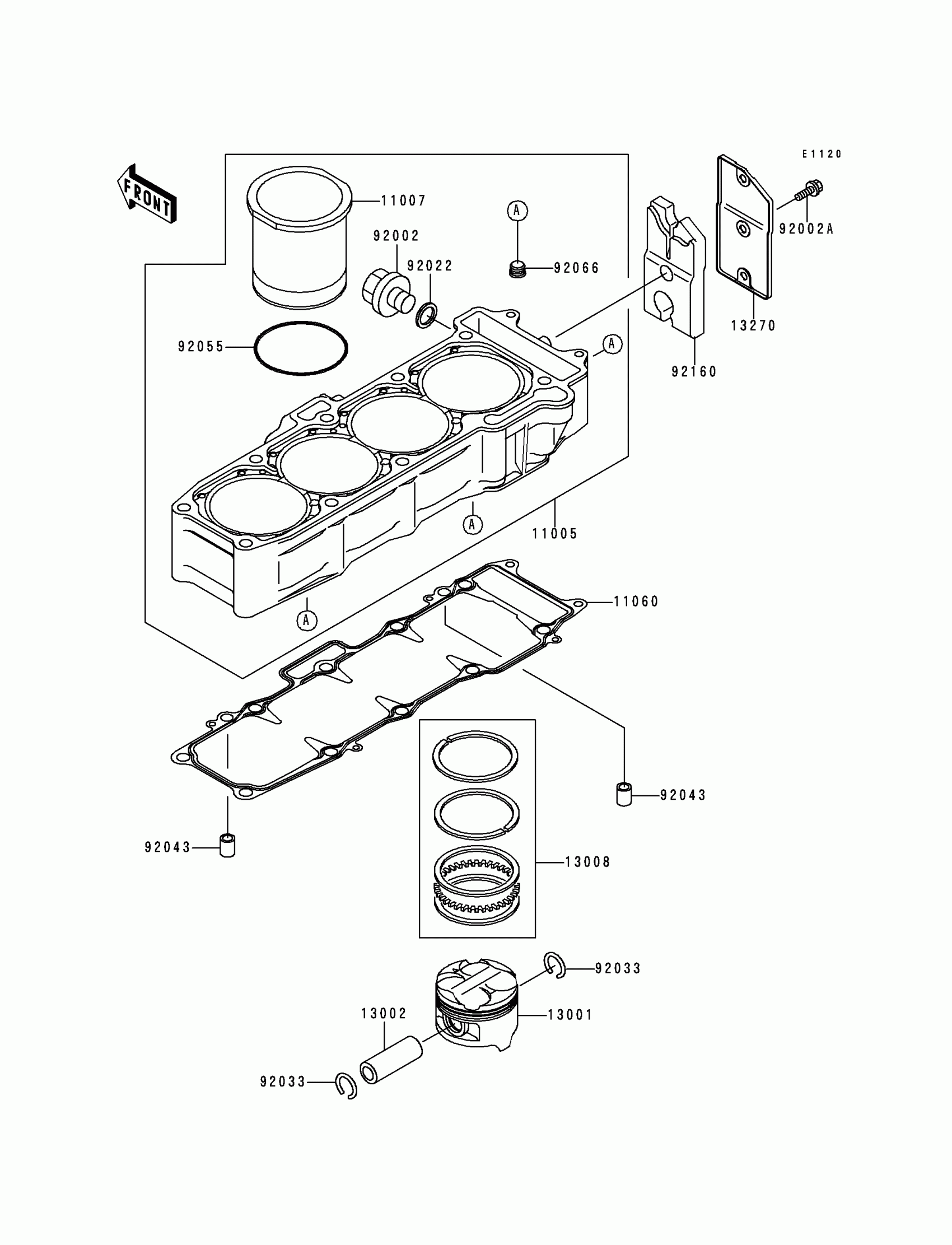

Kawasaki Ninja® ZX™-7RR Cylinder/Piston(s) Diagram

Description

Price

11005

CYLINDER-ENGINE

11005-1837

$1,506.12

11007

LINER-CYLINDER

11007-1139

$130.33

11060

GASKET,CYLINDER BASE,T=0.2

11060-1705

$57.69

13001

PISTON-ENGINE,STD

13001-1447

$104.67

13002

PIN-PISTON

13002-1086

$25.14

13008

RING-SET-PISTON,STD

13008-1168

$78.89

13270

PLATE

13270-1502

$10.80

92002

BOLT,16X10

92002-1238

$8.58

92002A

BOLT,6X8

92002-1604

Unavailable

92022

WASHER,16XX22X1.0

92022-1812

$4.15

92033

RING-SNAP,20.5X1.2

92033-1099

$0.55

92043

PIN,DOWEL,10X14

92043-1037

$0.66

92055

RING-O,78.9X2.0

92055-1526

$5.22

92066

PLUG,PT1/4X8.9

92066-1260

$3.81

92160

DAMPER

92160-1813

$31.02
