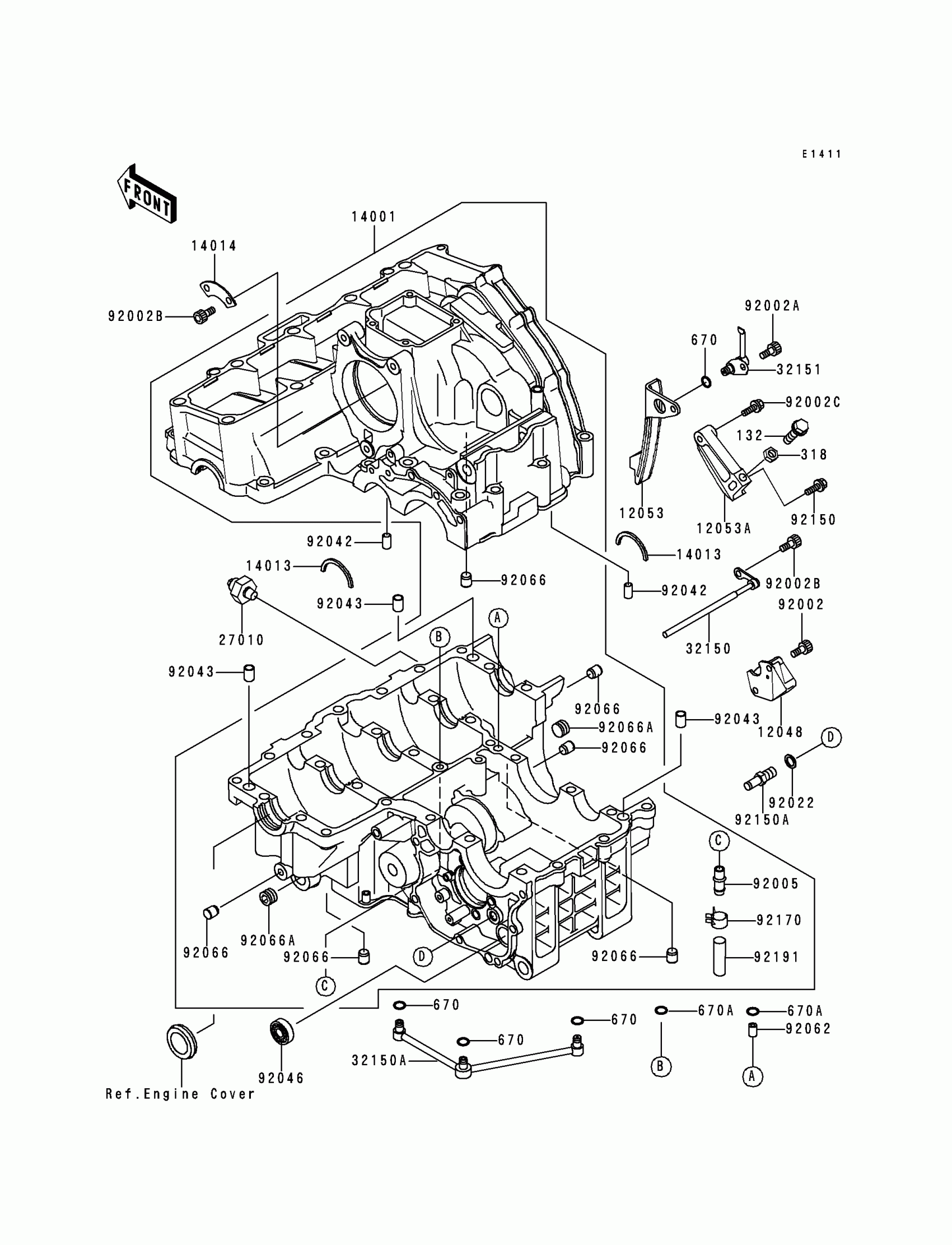

Kawasaki Ninja® ZX™-7RR Crankcase Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,8X20

132G0820

Unavailable

318

NUT-HEX-SMALL,8MM

318B0800

$0.54

670

O RING

670D1505

$3.29

670A

O RING,8MM

670D1508

$3.29

12048

TENSIONER-ASSY

12048-1109

$155.47

12053

GUIDE-CHAIN

12053-1281

$70.03

12053A

GUIDE-CHAIN

12053-1285

$70.03

14001

SET-CRANKCASE

14001-1208

$2,052.14

14013

RING-POSITION,T=1.98

14013-1004

$3.78

14014

PLATE-POSITION

14014-1056

$13.39

27010

SWITCH,OIL PRESSURE

27010-1313

$35.72

32150

PIPE

32150-1795

$66.71

32150A

PIPE

32150-1796

$70.03

32151

PIPE

32151-1492

$54.69

92002

BOLT,SOCKET,6X25

92002-1696

$1.43

92002A

BOLT,SOCKET,6X16

92002-1778

$3.81

92002B

BOLT,SOCKET,6X12

92002-1796

$3.57

92002C

BOLT,6X30

92002-1797

$5.71

92005

FITTING,BREATHER PIPE

92005-1161

$11.12

92022

WASHER,10X15X1.0

92022-1973

$4.17

92042

PIN,DOWEL,6X16

92042-016

$3.81

92043

PIN,DOWEL,10X14

92043-1037

$0.66

92046

BEARING-NEEDLE,HK1312

92046-1148

$14.13

92062

NOZZLE

92062-1074

$11.29

92066

PLUG,OIL LINE,7.2X8

92066-1012

$4.65

92066A

PLUG,PT3/8X10

92066-1262

$2.66

92150

BOLT,6X25

92150-1799

$5.22

92150A

BOLT,RETURN SPRING

92150-1803

$9.22

92170

CLAMP

92170-1167

$5.42

92191

TUBE

92191-1016

$4.12
