1997 Kawasaki Ninja® ZX™-7RR Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 1997 Kawasaki Ninja® ZX™-7RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

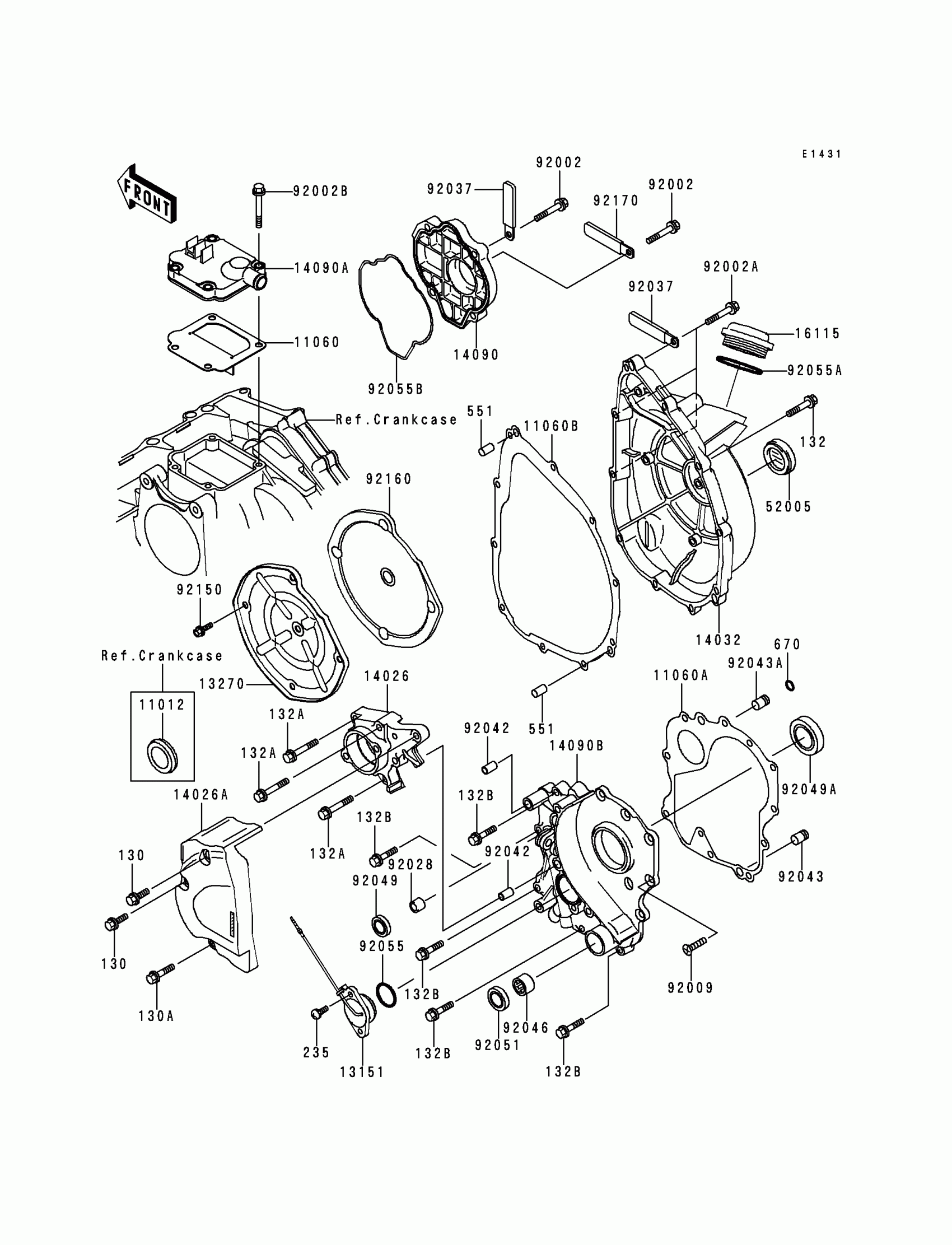

1997 Kawasaki Ninja® ZX™-7RR Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X16,BLACK

130J0616

1
Out of stock

130A

BOLT-FLANGED,6X25

130J0625

1
Out of stock

132

BOLT-FLANGED-SMALL,6X25

132J0625

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X35

132J0635

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X25

132Y0625

1
Out of stock

235

SCREW-PAN-WP-CROS

235C0516

1
Out of stock

551

PIN-DOWEL,8X14

551A0814

1
Out of stock

670

O RING,5MM

670B1505

1
Out of stock

11012

CAP,LH

11012-1770

1
Out of stock

11060

GASKET,BREATHER COVER

11060-1702

1
Out of stock

11060A

GASKET,TRANSMISSION COVER

11060-1703

1
Out of stock

11060B

GASKET,CLUTCH COVER

11060-1704

1
Out of stock

13151

SWITCH-COMP

13151-1081

1
Out of stock

13270

PLATE,CLUTCH COVER

13270-1580

1

$14.81

In stock

14026

COVER-CHAIN,FR

14026-1228

1
Out of stock

14026A

COVER-CHAIN,RR

14026-1229

1

$147.69

In stock

14032

COVER-CLUTCH

14032-1427

1

$304.01

In stock

14090

COVER,PULSING

14090-1630

1
Out of stock

14090A

COVER,BREATHER

14090-1631

1
Out of stock

14090B

COVER,TRANSMISSION

14090-1632

1
Out of stock

16115

CAP-OIL FILLER

16115-1064

1
Out of stock

52005

GAUGE,OIL LEVEL

52005-1057

1
Out of stock

92002

BOLT,6X20

92002-1343

1
Out of stock

92002A

BOLT,6X30

92002-1534

1
Out of stock

92002B

BOLT,FLANGED,6X25

92002-1582

1
Out of stock

92009

SCREW,6X16

92009-1360

1
Out of stock

92028

BUSHING,8X12X10

92028-1750

1
Out of stock

92037

CLAMP

92037-1877

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92043A

PIN

92043-1456

1
Out of stock

92046

BEARING-NEEDLE,HK1312

92046-1148

1
Out of stock

92049

SEAL-OIL,SD-8187

92049-1017

1
Out of stock

92049A

SEAL-OIL,TC32488

92049-1361

1
Out of stock

92051

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92055

RING-O,27.7X2.4

92055-091

1
Out of stock

92055A

RING-O,38MM

92055-1295

1
Out of stock

92055B

RING-O,PULSING COVER

92055-1543

1
Out of stock

92150

BOLT,5X8

92150-1406

1
Out of stock

92160

DAMPER,CLUTCH COVER

92160-1702

1
Out of stock

92170

CLAMP

92170-1514

1

$3.43

In stock
