1992 Kawasaki Ninja® ZX™-7R Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1992 Kawasaki Ninja® ZX™-7R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

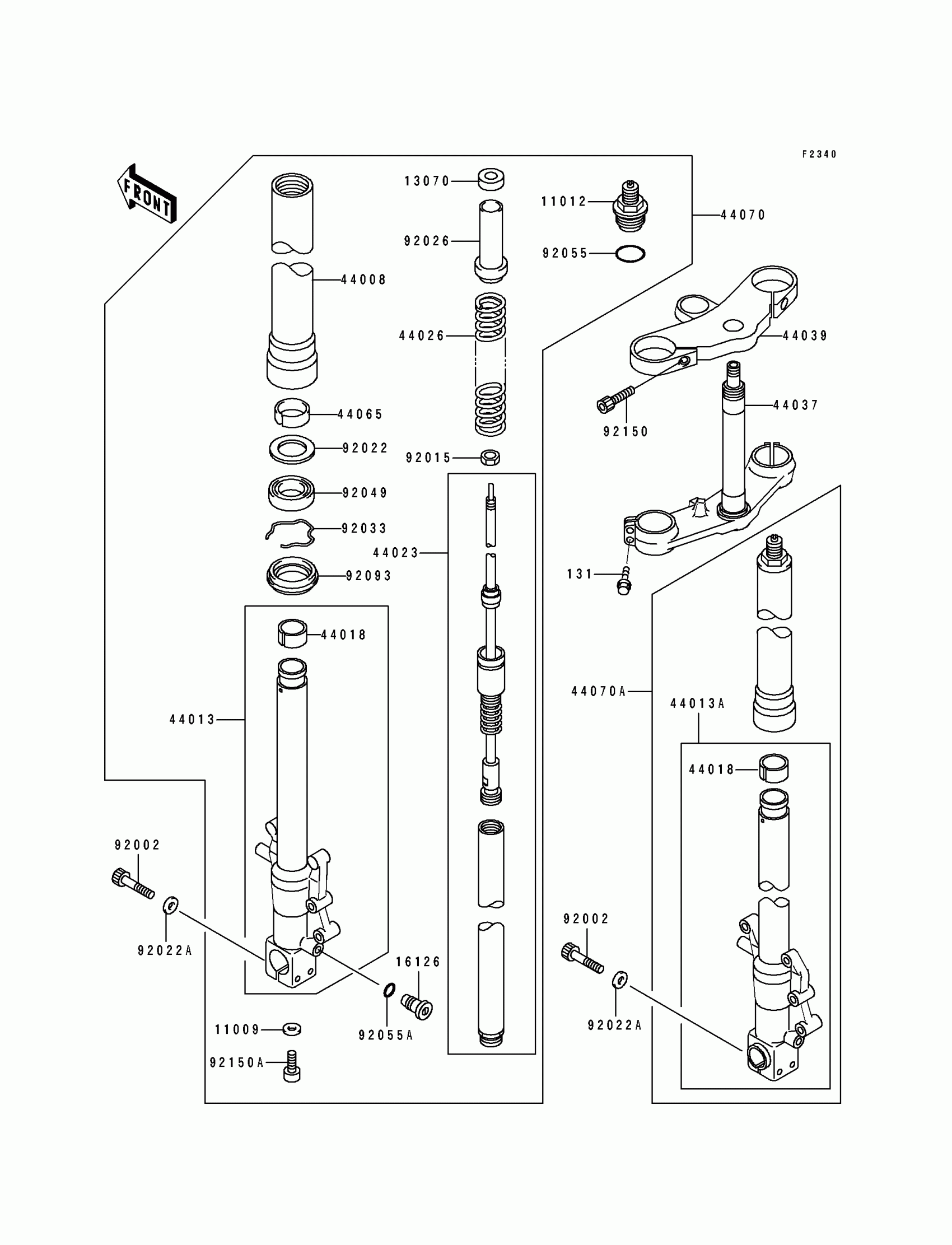

1992 Kawasaki Ninja® ZX™-7R Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$4.12

In stock

11012

CAP,FORK TOP

11012-1791

1
Out of stock

13070

GUIDE,FORK

13070-1236

1
Out of stock

16126

VALVE,FORK

16126-1261

1

$149.61

In stock

44008

PIPE-FORK OUTER,BROWN

44008-1017-JS

1
Out of stock

44013

1

$641.88

In stock

44013A

1

$641.88

In stock

44018

PISTON-FORK

44018-1054

1

$49.24

In stock

44023

CYLINDER-COMP-FORK

44023-1079

1

$273.46

In stock

44026

SPRING-FRONT FORK

44026-1500

1

$76.82

In stock

44037

HOLDER-FORK UNDER

44037-1295

1

$661.25

In stock

44039

HOLDER-FORK UPPER

44039-1222

1

$319.35

In stock

44065

1

$25.63

In stock

44070

1

$1,234.86

In stock

44070A

1

$1,234.86

In stock

92002

BOLT,SOCKET,8X45

92002-1847

1
Out of stock

92015

NUT

92015-1795

1

$4.85

In stock

92022

1

$6.82

In stock

92022A

WASHER

92022-1598

1

$8.20

In stock

92026

SPACER,FORK

92026-1410

1
Out of stock

92033

RING-SNAP

92033-1036

1

$5.15

In stock

92049

SEAL-OIL,FORK OUTER TUBE

92049-1347

1
Out of stock

92055

RING-O

92055-1115

1

$8.04

In stock

92055A

1

$2.58

In stock

92093

1

$20.09

In stock

92150

BOLT,SOCKET,8X25

92150-1172

1

$1.55

In stock

92150A

BOLT,12X22

92150-1398

1

$8.95

In stock

131

BOLT-FLANGED,8X40

131G0840

1
Out of stock
