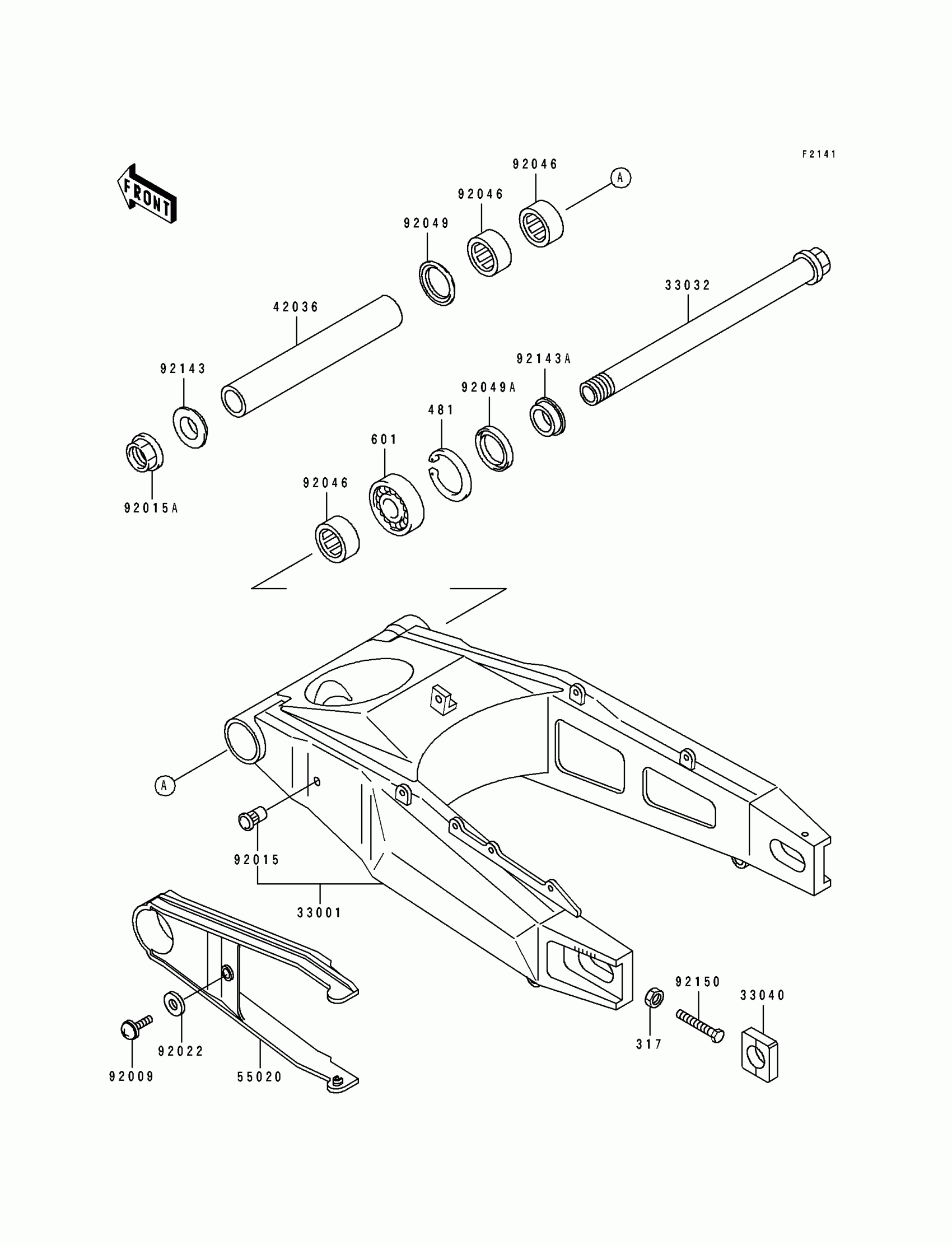

Kawasaki Ninja® ZX™-7R Swing Arm Diagram

Description

Price

33001

ARM-COMP-SWING,SILVER NO.30

33001-1378-KF

$1,393.66

33032

SHAFT-SWING ARM

33032-1164

Unavailable

33040

ADJUSTER-CHAIN,RH

33040-1114

$15.15

42036

SLEEVE,SWING ARM,L=228

42036-1284

Unavailable

55020

GUARD,DRIVE CHAIN

55020-1390

Unavailable

92009

SCREW,6X18

92009-1663

Unavailable

92015

NUT,POP,6MM,L=16.5

92015-1792

$3.72

92015A

NUT,FLANGED,25MM

92015-1845

$23.68

92022

WASHER,6.5X16X1

92022-1143

$3.12

92046

BEARING-NEEDLE,BM3520

92046-1205

$30.93

92049

SEAL-OIL,MHA 35 42 5.7F

92049-1380

$10.37

92049A

SEAL-OIL,MHA 35X47X5

92049-1381

$13.00

92143

COLLAR,SWING ARM,LH,L=11.5

92143-1480

Unavailable

92143A

COLLAR,SWING ARM,L=12.5

92143-1481

$31.44

92150

BOLT,8X55

92150-1350

$1.81

317

NUT-HEX-SMALL,8MM

317G0800

Unavailable

481

CIRCLIP-TYPE-C,47MM

481J4700

$3.36

601

BEARING-BALL,#6005U

601B6005U

$25.56
