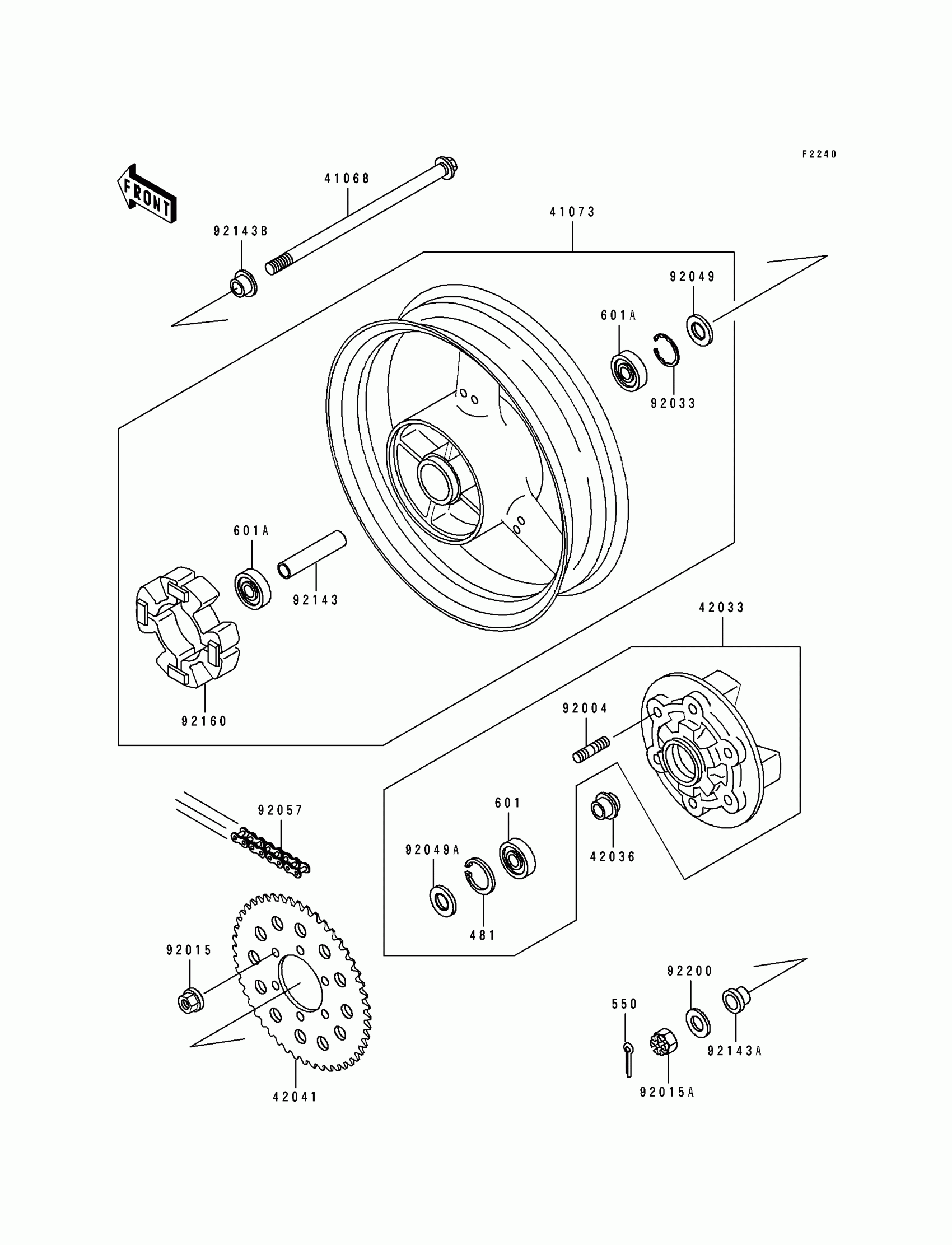

Kawasaki Ninja® ZX™-7R Rear Hub Diagram

#

Description
Price

41068

AXLE,RR

41068-1326

$100.40

41073

WHEEL-ASSY,RR,L.GREEN

41073-1495-CJ

$1,014.50

42033

COUPLING-ASSY,RR HUB

42033-1144

$253.53

42036

SLEEVE,RR HUB,L=22

42036-1279

$26.53

42041

SPROCKET-HUB,42T

42041-1387

$120.12

92004

STUD,10X19

92004-1151

$7.09

92015

NUT,10MM

92015-1720

$4.16

92015A

NUT,CASTLE,24MM

92015-1844

$10.77

92033

RING-SNAP,52MM

92033-1043

$6.41

92049

SEAL-OIL,RR HUB

92049-1375

$18.58

92049A

SEAL-OIL,PJN 40 55 8

92049-1376

$14.11

92057

CHAIN,DRIVE,EK50MV-XX108L

92057-1332

$380.75

92143

COLLAR,RR HUB,L=133

92143-1473

Unavailable

92143A

COLLAR,RR AXLE,LH,L=20

92143-1474

Unavailable

92143B

COLLAR,RR AXLE,RH,L=26

92143-1475

$49.20

92160

DAMPER,SHOCK,RR HUB

92160-1203

$87.84

92200

WASHER,25.5X38X4.5

92200-1081

Unavailable

481

CIRCLIP

481J5500

Unavailable

550

PIN-COTTER,4.0X40

550D4040

$1.10

601

BEARING-BALL,#6006G

601B6006G

$26.55

601A

BEARING-BALL,#6205UG

601B6205UG

$34.04
