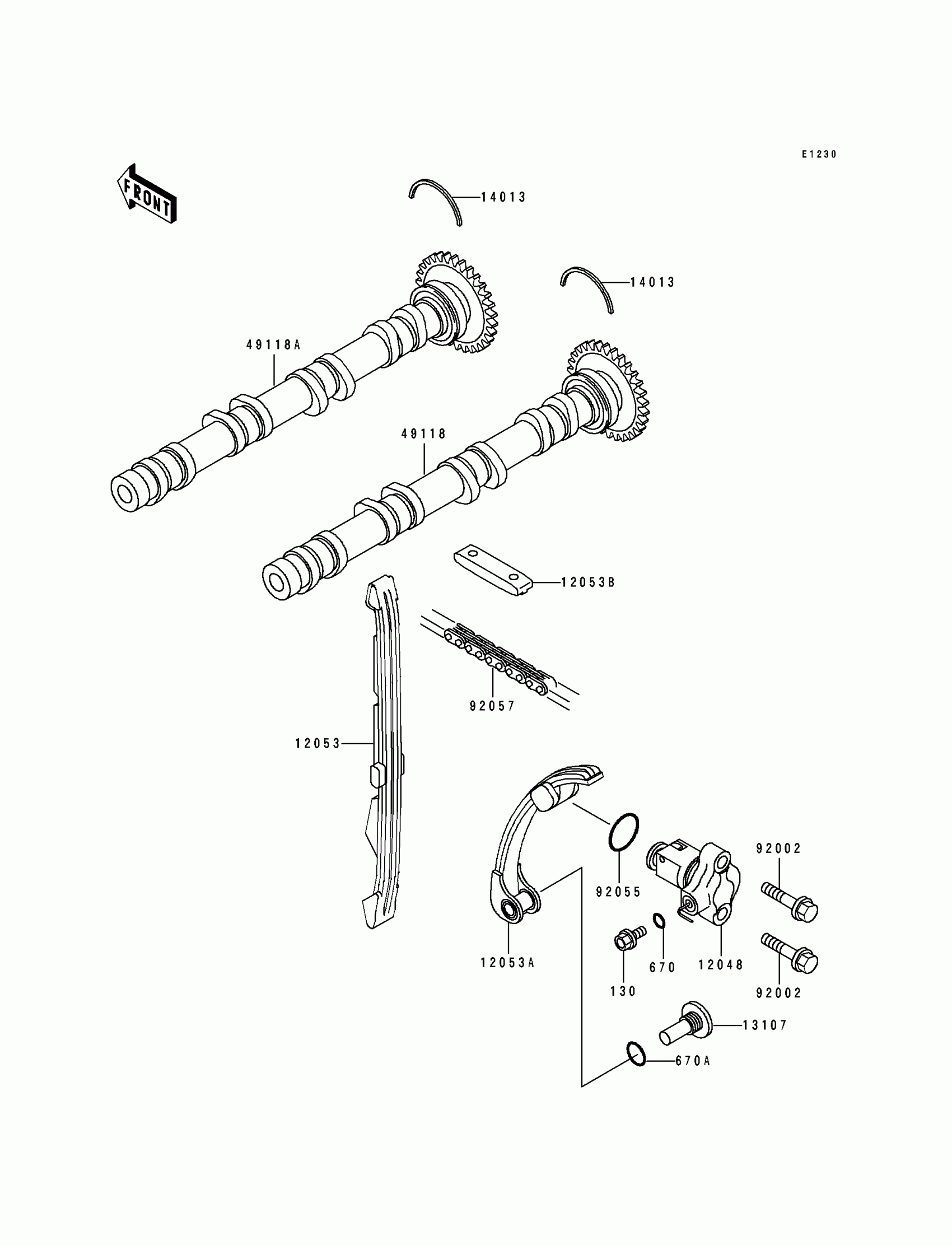

Kawasaki Ninja® ZX™-7R Camshaft/Tensioner Diagram

Description

Price

12048

TENSIONER-ASSY

12048-1112

Unavailable

12053

GUIDE-CHAIN

12053-1282

Unavailable

12053A

GUIDE-CHAIN

12053-1283

Unavailable

12053B

GUIDE-CHAIN

12053-1286

Unavailable

13107

SHAFT

13107-1280

Unavailable

14013

RING-POSITION,CAMSHAFT

14013-1057

$5.15

49118

CAMSHAFT-COMP,INTAKE

49118-1083

Unavailable

49118A

CAMSHAFT-COMP,EXHAUST

49118-1084

Unavailable

92002

BOLT,6X25

92002-1612

$4.46

92055

RING-O,18.8X1.9

92055-086

$3.43

92057

CHAIN,CAMSHAFT,BF05MA

92057-1323

$138.57

130

BOLT-FLANGED,5X8

130G0508

Unavailable

670

O RING,6MM

670B1506

$1.14

670A

O RING,14MM

670D2014

$4.37
