2003 Kawasaki Ninja® ZX™-6RR Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 2003 Kawasaki Ninja® ZX™-6RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

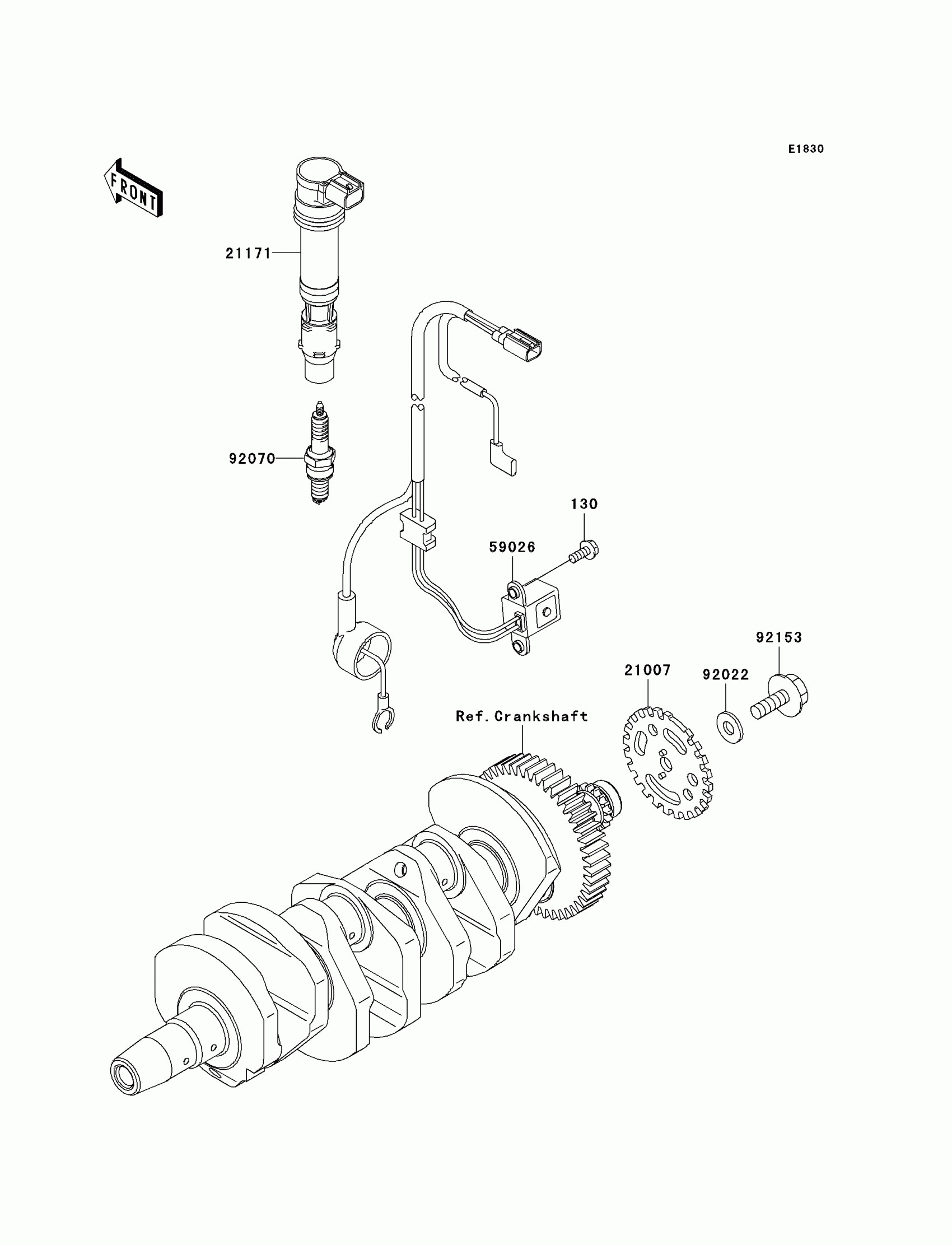

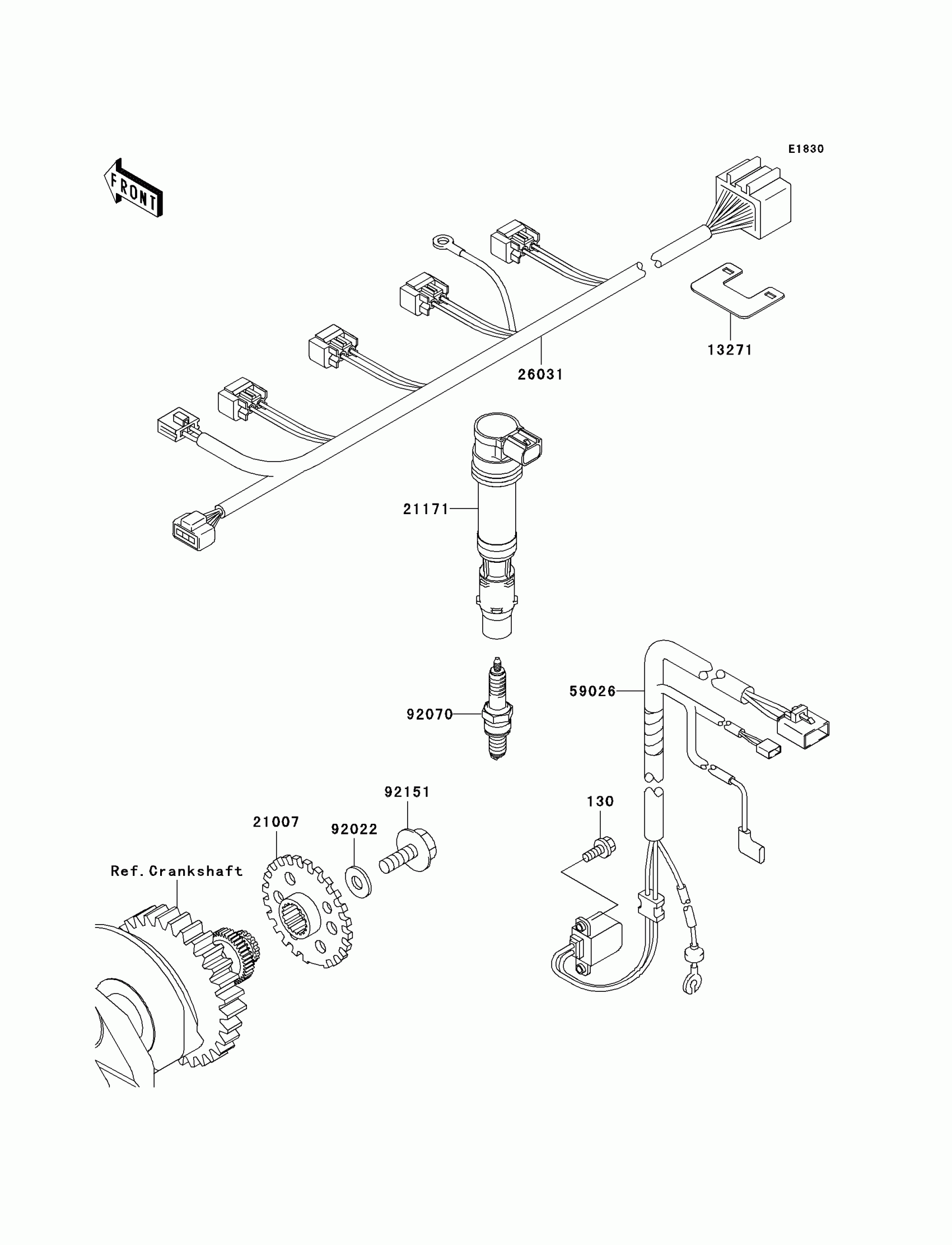

2003 Kawasaki Ninja® ZX™-6RR Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X12

130G0512

1
Out of stock

13271

PLATE

13271-0055

1
Out of stock

21007

ROTOR,PULSING

21007-0009

1
Out of stock

21171

COIL-ASSY-IGNITION

21171-1282

1
Out of stock

26031

HARNESS

26031-0007

1
Out of stock

59026

COIL-PULSING

59026-1161

1
Out of stock

92022

WASHER,8.2X19X2

92022-1533

1
Out of stock

92070

PLUG-SPARK,CR9E(NGK)

92070-1266

1
Out of stock

92151

BOLT,8X23

92151-1308

1
Out of stock
