2003 Kawasaki Ninja® ZX™-6RR Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2003 Kawasaki Ninja® ZX™-6RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

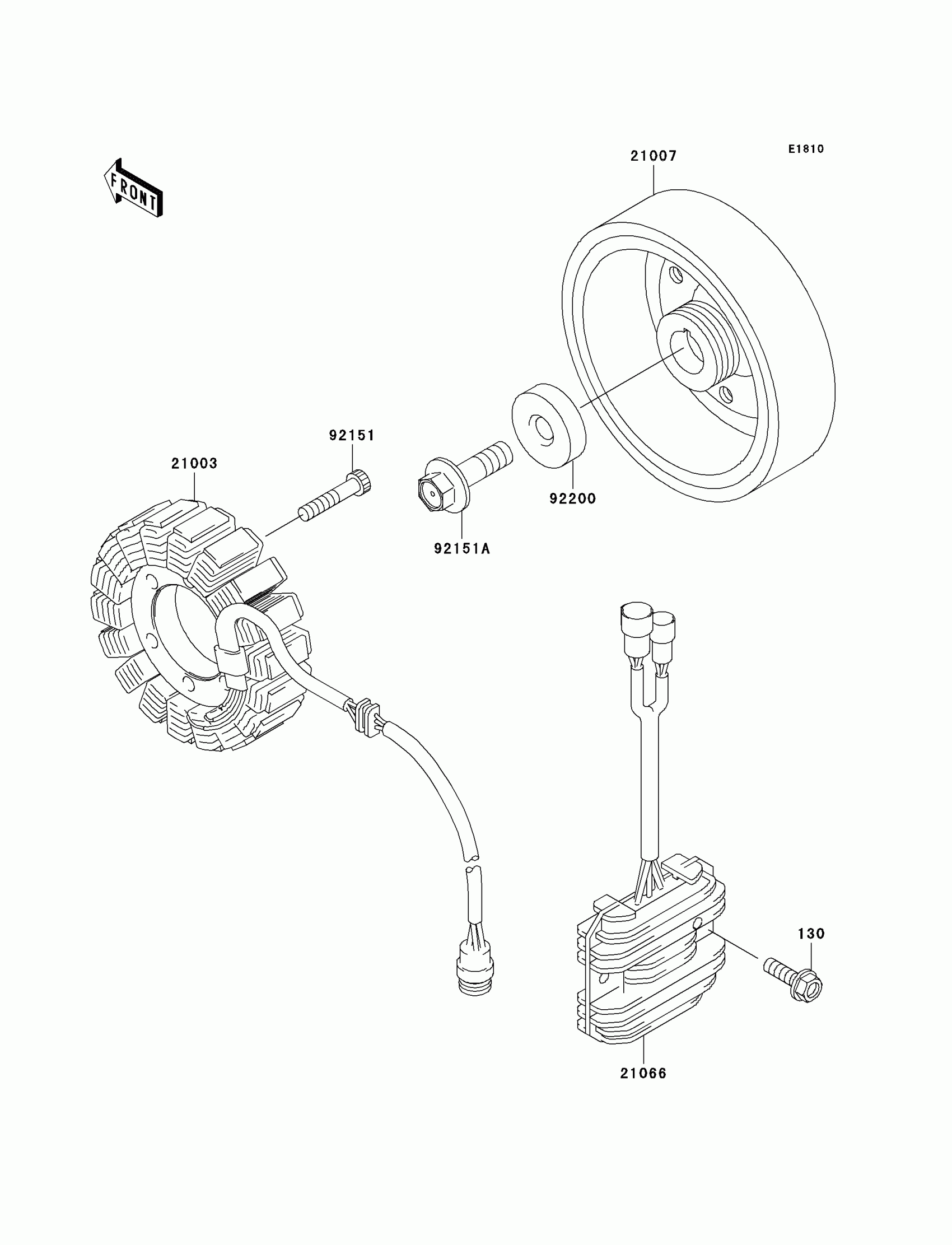

2003 Kawasaki Ninja® ZX™-6RR Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130H0620

1
Out of stock

21003

STATOR

21003-0001

1

$658.27

In stock

21007

ROTOR

21007-0001

1

$622.61

In stock

21066

REGULATOR-VOLTAGE

21066-0002

1
Out of stock

92151

BOLT,6X30

92151-1626

1

$2.25

In stock

92151A

BOLT,10X40

92151-1653

1

$3.31

In stock

92200

WASHER

92200-1667

1
Out of stock
