2003 Kawasaki Ninja® ZX™-6RR Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 2003 Kawasaki Ninja® ZX™-6RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

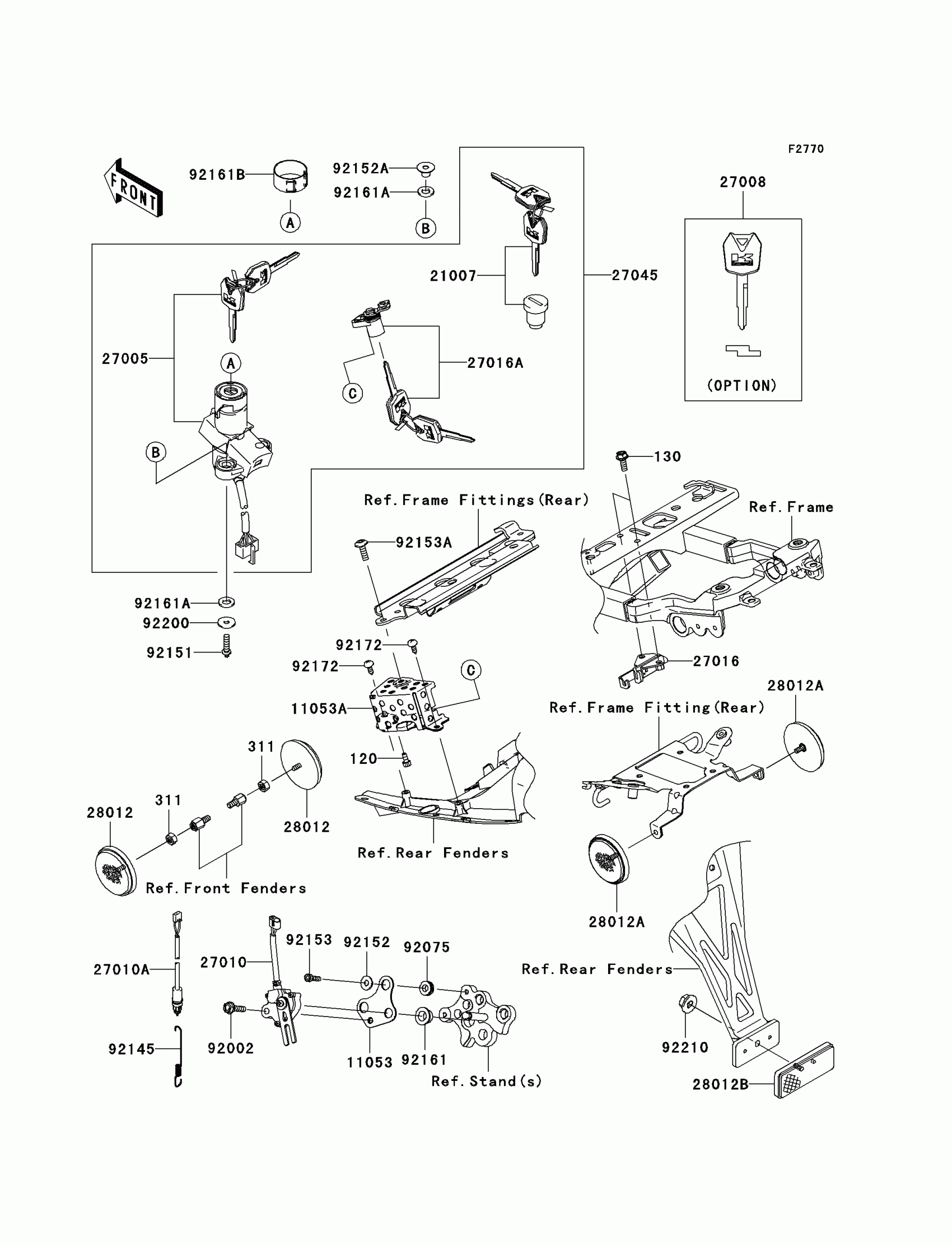

2003 Kawasaki Ninja® ZX™-6RR Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X16

130L0616

1
Out of stock

311

NUT-HEX

311L0500

1
Out of stock

461

WASHER-SPRING

461L0600

1
Out of stock

11053

BRACKET,SIDE STAND SWITCH

11053-0056

1
Out of stock

11053A

BRACKET,SEAT LOCK

11053-1132

1
Out of stock

21007

ROTOR,LOCK,TANK CAP

21007-5042

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-5126

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1189

1
Out of stock

27010

SWITCH,SIDE STAND

27010-1463

1
Out of stock

27010A

SWITCH,REAR BRAKE

27010-1479

1
Out of stock

27016

LOCK-ASSY,SEAT STRIKER

27016-1115

1
Out of stock

27016A

LOCK-ASSY,SEAT

27016-5261

1
Out of stock

27045

SWITCH-ASSY

27045-5199

1
Out of stock

28012

REFLECTOR-REFLEX,FR

28012-016

1
Out of stock

28012A

REFLECTOR-REFLEX

28012-1077

1
Out of stock

92002

BOLT,FLANGED,6X25

92002-1582

1
Out of stock

92015

NUT,FLANGED,5MM

92015-1259

1
Out of stock

92074

PLUG,7X2

92074-028

1
Out of stock

92075

DAMPER

92075-161

1
Out of stock

92145

SPRING,REAR BRAKE SWITCH

92145-0057

1
Out of stock

92151

BOLT,TORX,6X16

92151-1911

1
Out of stock

92152

COLLAR

92152-0017

1
Out of stock

92153

BOLT,SOCKET,5X18

92153-0414

1
Out of stock

92161

DAMPER

92161-0016

1
Out of stock

92172

SCREW,5X12

92172-1084

1
Out of stock
