1997 Kawasaki Ninja® ZX™-6R Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 1997 Kawasaki Ninja® ZX™-6R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

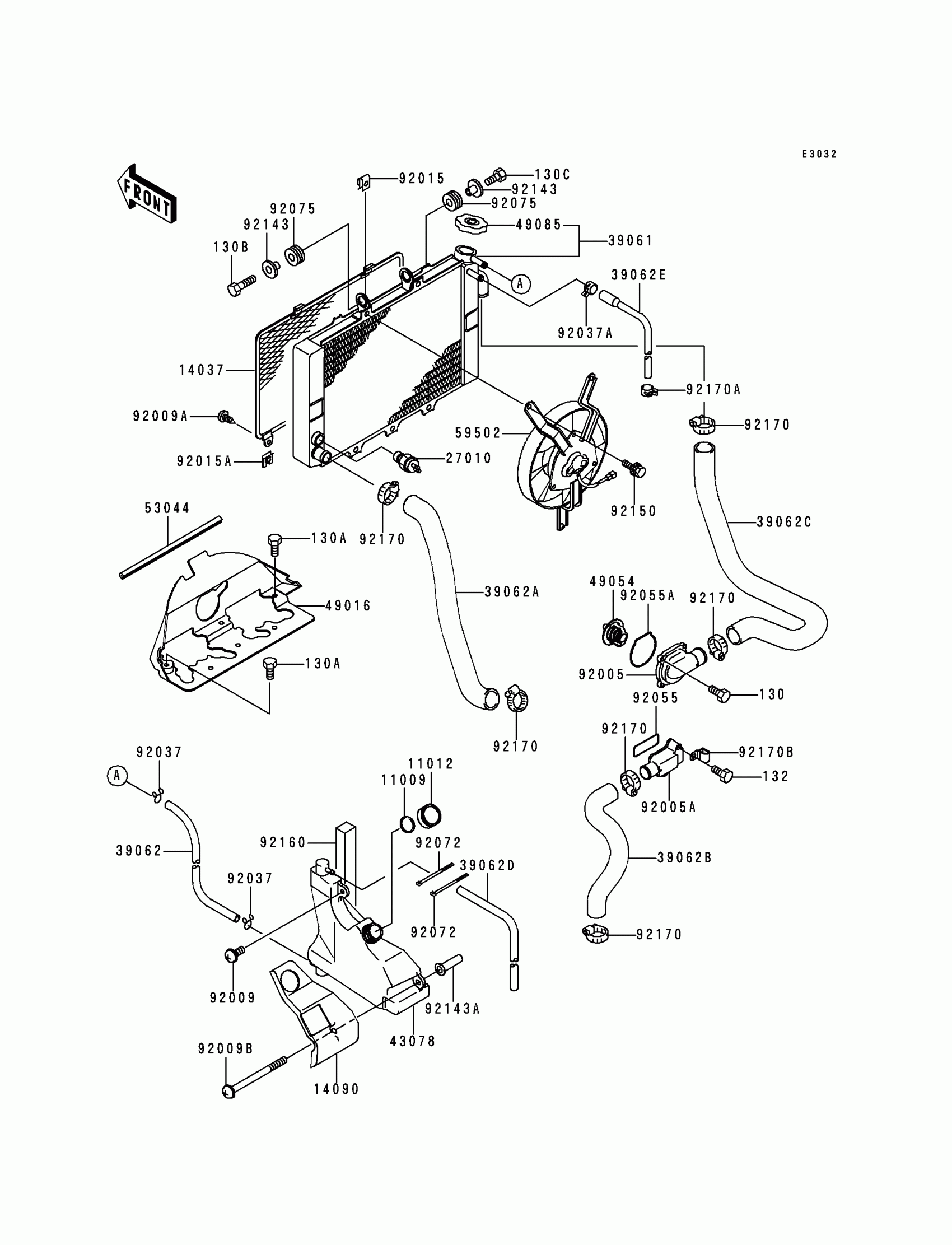

1997 Kawasaki Ninja® ZX™-6R Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X14

130J0514

1
Out of stock

130A

BOLT-FLANGED,6X12

130J0612

1
Out of stock

11009

1

$1.25

In stock

11012

CAP

11012-1084

1

$1.31

In stock

14037

SCREEN,RADIATOR

14037-1196

1
Out of stock

14090

COVER,RESERVEIR

14090-1598

1
Out of stock

27010

SWITCH,THERMOSTAT

27010-1304

1

$91.29

In stock

39061

RADIATOR-ASSY

39061-1219

1

$932.32

In stock

39062

1

$14.44

In stock

39062A

HOSE-COOLING,RADIATOR-PUMP

39062-1631

1
Out of stock

39062B

1

$44.86

In stock

39062C

HOSE-COOLING,HEAD-RADIATOR

39062-1634

1
Out of stock

39062D

HOSE-COOLING

39062-1637

1
Out of stock

39062E

HOSE-COOLING,HEAD-RADIATOR

39062-1659

1
Out of stock

43078

RESERVOIR

43078-1147

1
Out of stock

49016

COVER-SEAL,HEAT

49016-1188

1
Out of stock

49054

THERMOSTAT

49054-1067

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-1067

1

$48.74

In stock

53044

TRIM,L=40

53044-1174

1

$3.85

In stock

59502

FAN-ASSY

59502-1112

1
Out of stock

92005

FITTING,THERMO CAP

92005-1275

1
Out of stock

92005A

FITTING

92005-1276

1
Out of stock

92009

SCREW,6X14

92009-1288

1
Out of stock

92009A

SCREW,TAPPING,6X16

92009-1436

1
Out of stock

92009B

SCREW,6X55

92009-1754

1
Out of stock

92015

NUT

92015-1487

1

$3.80

In stock

92015A

NUT,6MM

92015-1758

1

$5.45

In stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92037A

CLAMP,TUBE

92037-1505

1

$3.78

In stock

92055

RING-O

92055-1402

1

$6.24

In stock

92055A

1

$7.20

In stock

92072

BAND,L=202

92072-1195

1

$1.34

In stock

92075

DAMPER,RUBBER

92075-1123

1

$3.97

In stock

92143

COLLAR

92143-1353

1

$6.81

In stock

92143A

COLLAR

92143-1428

1

$15.71

In stock

92150

BOLT,6X12

92150-1186

1

$2.92

In stock

92160

DAMPER,RESERVOIR

92160-1621

1

$4.12

In stock

92170

CLAMP,COOLING HOSE

92170-1284

1

$6.51

In stock

92170A

CLAMP

92170-1493

1

$3.97

In stock

92170B

CLAMP

92170-1577

1

$3.03

In stock

130B

BOLT-FLANGED

130J0620

1
Out of stock

130C

BOLT-FLANGED,6X25

130J0625

1
Out of stock

132

BOLT-FLANGED-SMALL,6X30

132J0630

1
Out of stock
