1997 Kawasaki Ninja® ZX™-6R Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 1997 Kawasaki Ninja® ZX™-6R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

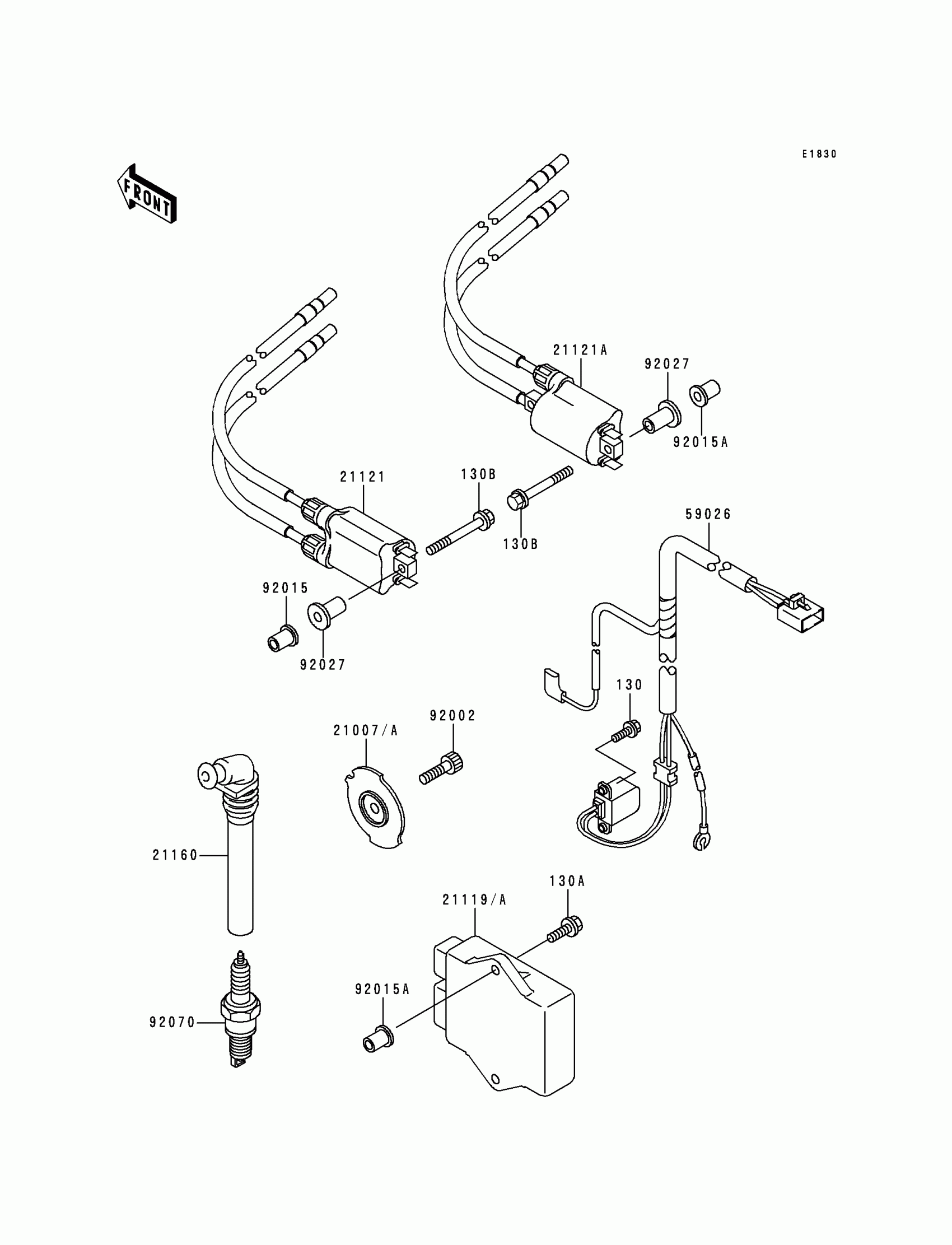

1997 Kawasaki Ninja® ZX™-6R Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X12

130G0512

1
Out of stock

130A

BOLT-FLANGED

130J0620

1
Out of stock

130B

BOLT-FLANGED,6X50,BLACK

130J0650

1
Out of stock

21121

COIL-IGNITION

21121-1241

1
Out of stock

21121A

COIL-IGNITION

21121-1242

1
Out of stock

21160

CAP-ASSY-PLUG

21160-1088

1
Out of stock

59026

COIL-PULSING

59026-1129

1
Out of stock

92002

BOLT,SOCKET,8X25

92002-1442

1
Out of stock

92015

NUT,RUBBER,6MM

92015-1692

1
Out of stock

92015A

NUT

92015-1700

1
Out of stock

92027

COLLAR

92027-195

1
Out of stock

92070

PLUG-SPARK,CR9E(NGK)

92070-1143

1
Out of stock

21007

ROTOR,PULSING

21007-1275

1
Out of stock

21007A

ROTOR,PULSING

21007-1278

1
Out of stock

21119

IGNITER

21119-1433

1
Out of stock

21119A

IGNITER

21119-1434

1
Out of stock
