1997 Kawasaki Ninja® ZX™-6R Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 1997 Kawasaki Ninja® ZX™-6R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

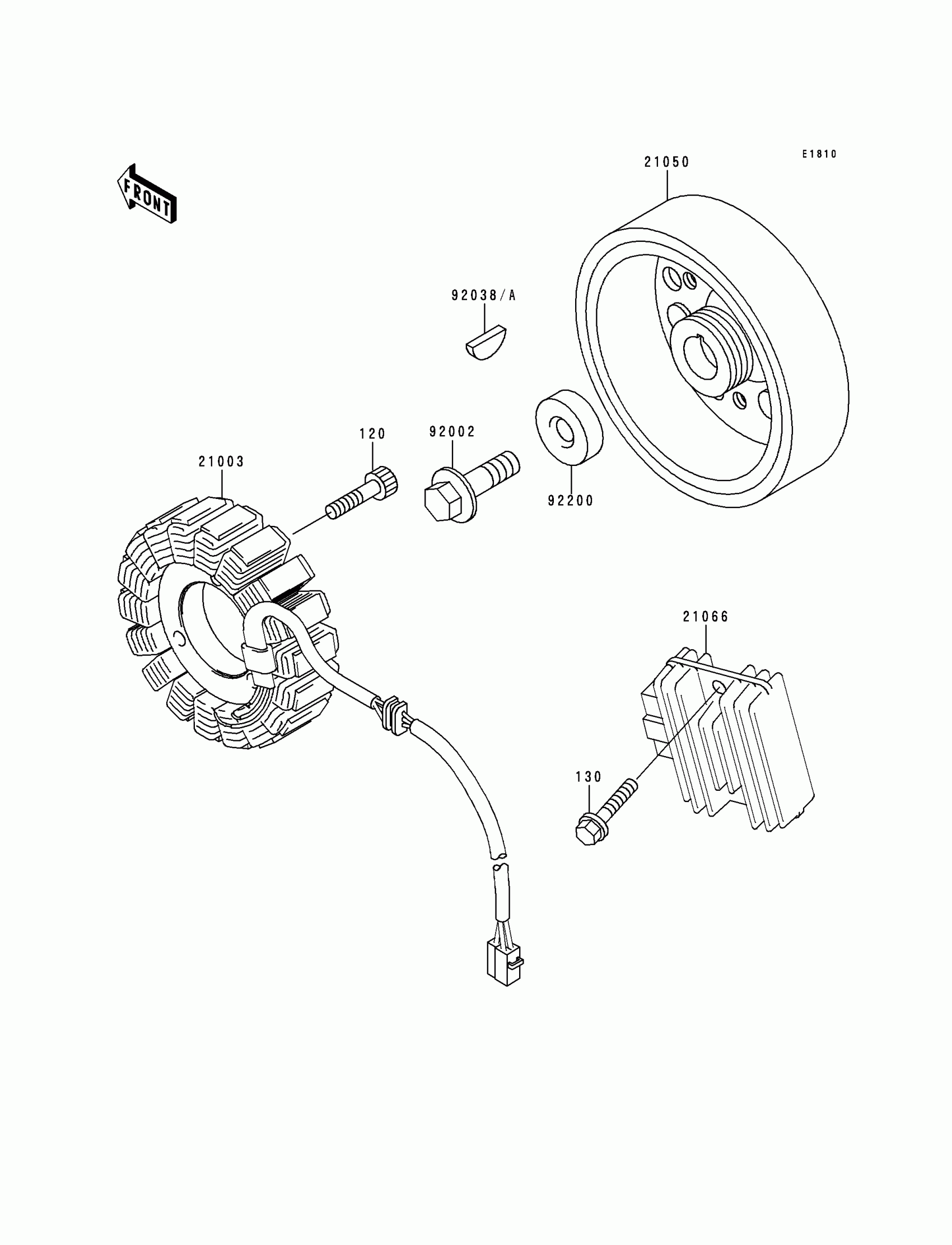

1997 Kawasaki Ninja® ZX™-6R Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X25

120P0625

1
Out of stock

130

BOLT-FLANGED,6X25

130H0625

1
Out of stock

21003

STATOR

21003-1214

1

$658.25

In stock

21050

FLYWHEEL

21050-1146

1

$606.62

In stock

21066

REGULATOR-VOLTAGE

21066-1089

1

$273.17

In stock

92002

BOLT,FLANGED,10X40

92002-1296

1

$8.44

In stock

92038A

KEY

92038-1060

1

$7.63

In stock

92200

WASHER

92200-1241

1
Out of stock
