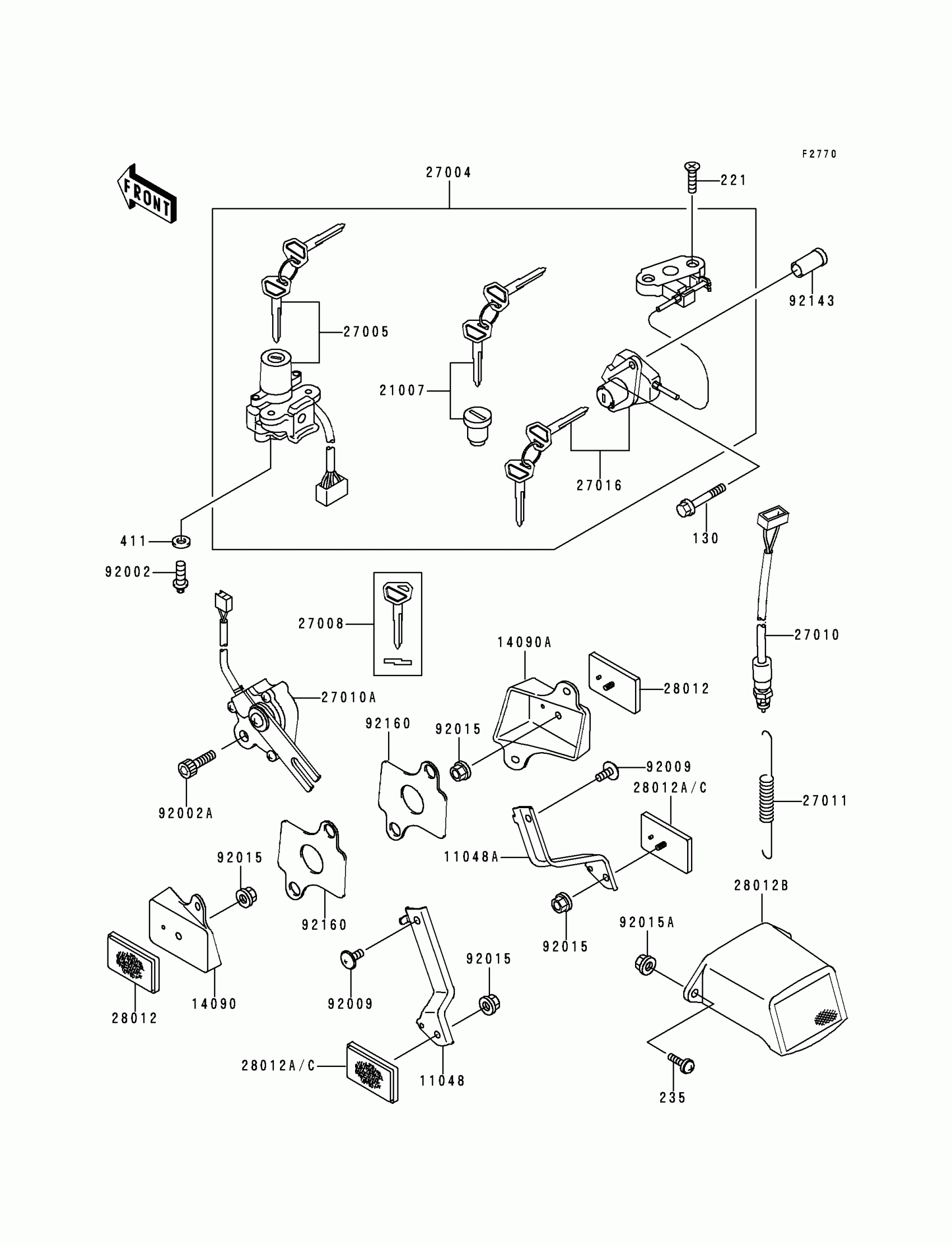

Kawasaki Ninja® ZX™-6R Ignition Switch/Locks/Reflectors Diagram

Description

Price

130

BOLT-FLANGED,6X55,BLACK

130J0655

Unavailable

221

SCREW-CSK-CROS,6X28

221B0628

Unavailable

235

SCREW-PAN-WP-CROS,6X20

235C0620

Unavailable

411

WASHER-PLAIN,6MM

411E0600

$1.03

11048

BRACKET,REFLECTOR,RR,LH

11048-1942

Unavailable

11048A

BRACKET,REFLECTOR,RR,RH

11048-1943

Unavailable

14090

COVER,REFLECTOR,FR,LH

14090-1377

Unavailable

14090A

COVER,REFLECTOR,FR,RH

14090-1378

Unavailable

21007

ROTOR,LOCK,TANK CAP

21007-5035

$60.27

27004

SWITCH-ASSY

27004-5473

$500.07

27005

SWITCH-ASSY-IGNITION

27005-1180

$277.00

27008

KEY-LOCK,BLANK

27008-1170

$13.56

27010

SWITCH,BRAKE LAMP

27010-1093

$26.58

27010A

SWITCH,SIDE STAND

27010-1344

$120.30

27011

SPRING,BRAKE LAMP SWITCH

27011-011

$6.48

27016

LOCK-ASSY,SEAT

27016-5219

$85.73

28012

REFLECTOR-REFLEX

28012-1003

$17.85

28012B

REFLECTOR-REFLEX,RR

28012-1066

$36.58

28012C

REFLECTOR-REFLEX,RR

28012-1078

$18.15

92002

BOLT,TORX,6X16

92002-1333

$1.85

92002A

BOLT,FLANGED,6X25

92002-1582

$4.17

92009

SCREW,6X14

92009-1662

$2.99

92015

NUT,FLANGED,5MM

92015-1259

$2.99

92015A

NUT,FLANGED,6MM

92015-1367

$2.53

92143

COLLAR

92143-1764

Unavailable

92160

DAMPER,REFLECTOR

92160-1486

Unavailable
