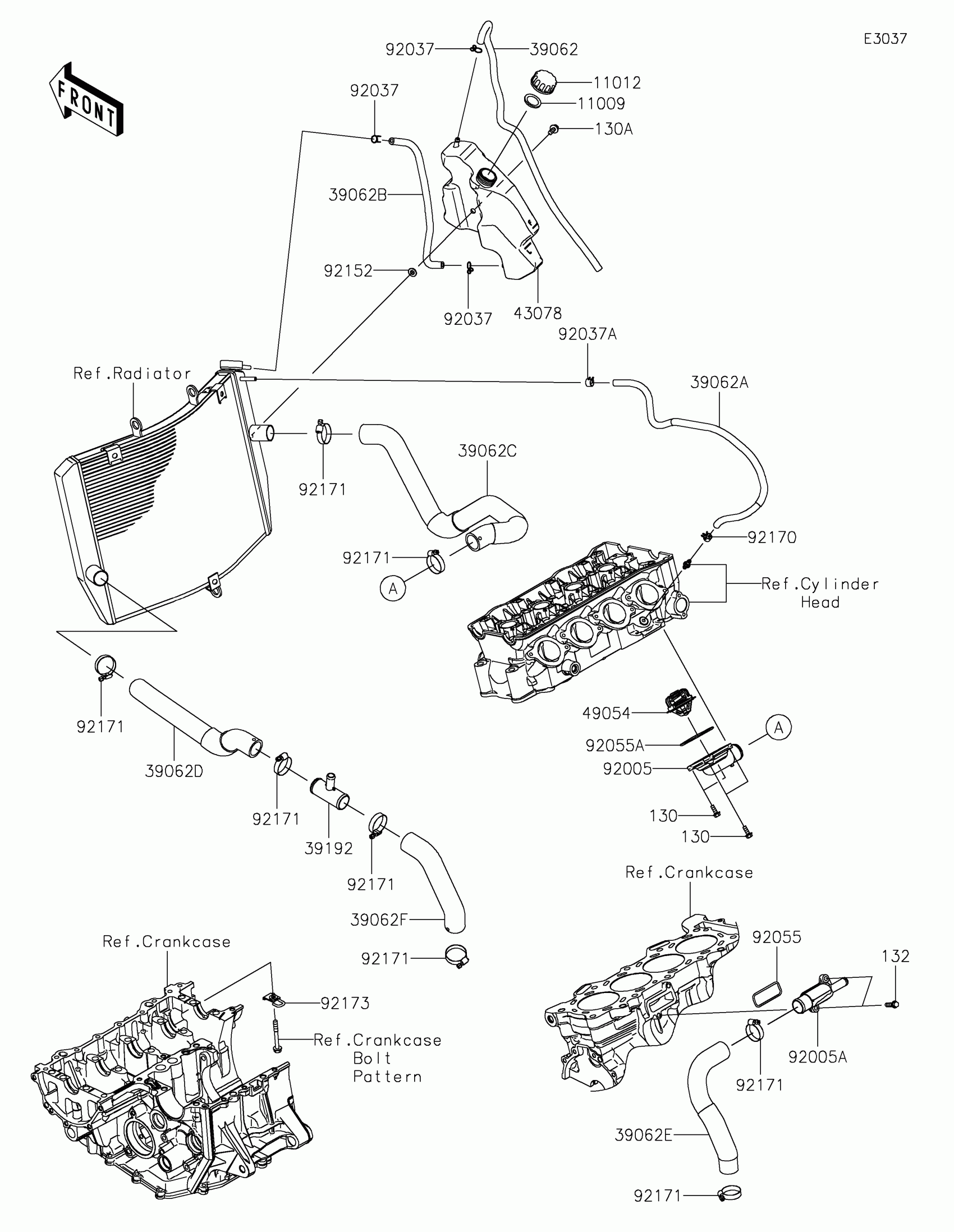

Kawasaki Ninja ZX-6R (CA) Water Pipe Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

39062

HOSE-COOLING,OVERFLOW

39062-0618

$10.39

39062A

HOSE-COOLING,RAD.-HEAD

39062-0628

$19.71

39062B

HOSE-COOLING,RETURN

39062-0817

$7.27

39062C

HOSE-COOLING,HEAD-RAD.

39062-0990

$72.47

39062D

HOSE-COOLING,RAD.-WATER PIPE

39062-0991

$40.45

39062E

HOSE-COOLING,W.PUMP-CYLINDER

39062-0992

$68.51

39062F

HOSE-COOLING,PIPE-W.PUMP

39062-0993

$19.25

39192

PIPE-WATER

39192-0100

$9.92

43078

RESERVOIR

43078-0598

$65.53

49054

THERMOSTAT

49054-0004

$51.97

92005

FITTING,THERMO CAP

92005-0814

$70.91

92005A

FITTING

92005-0817

$39.39

92037

CLAMP,TUBE

92037-147

$5.61

92037A

CLAMP,TUBE

92037-1505

$3.63

92055

RING-O

92055-1402

$5.99

92055A

RING-O,THERMOSTAT CAP

92055-1699

$6.91

92152

COLLAR

92152-1414

$5.82

92170

CLAMP

92170-1493

$3.81

92171

CLAMP

92171-0179

$6.25

92173

CLAMP

92173-2029

$12.71

130

BOLT-FLANGED,5X14

130BA0514

$1.49

130A

BOLT-FLANGED,6X14

130BA0614

$0.97

132

BOLT-FLANGED-SMALL,6X20

132BB0620

$3.05
