2023 Kawasaki Ninja ZX-6R (CA) Crankcase Bolt Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt Pattern diagram for your 2023 Kawasaki Ninja ZX-6R (CA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

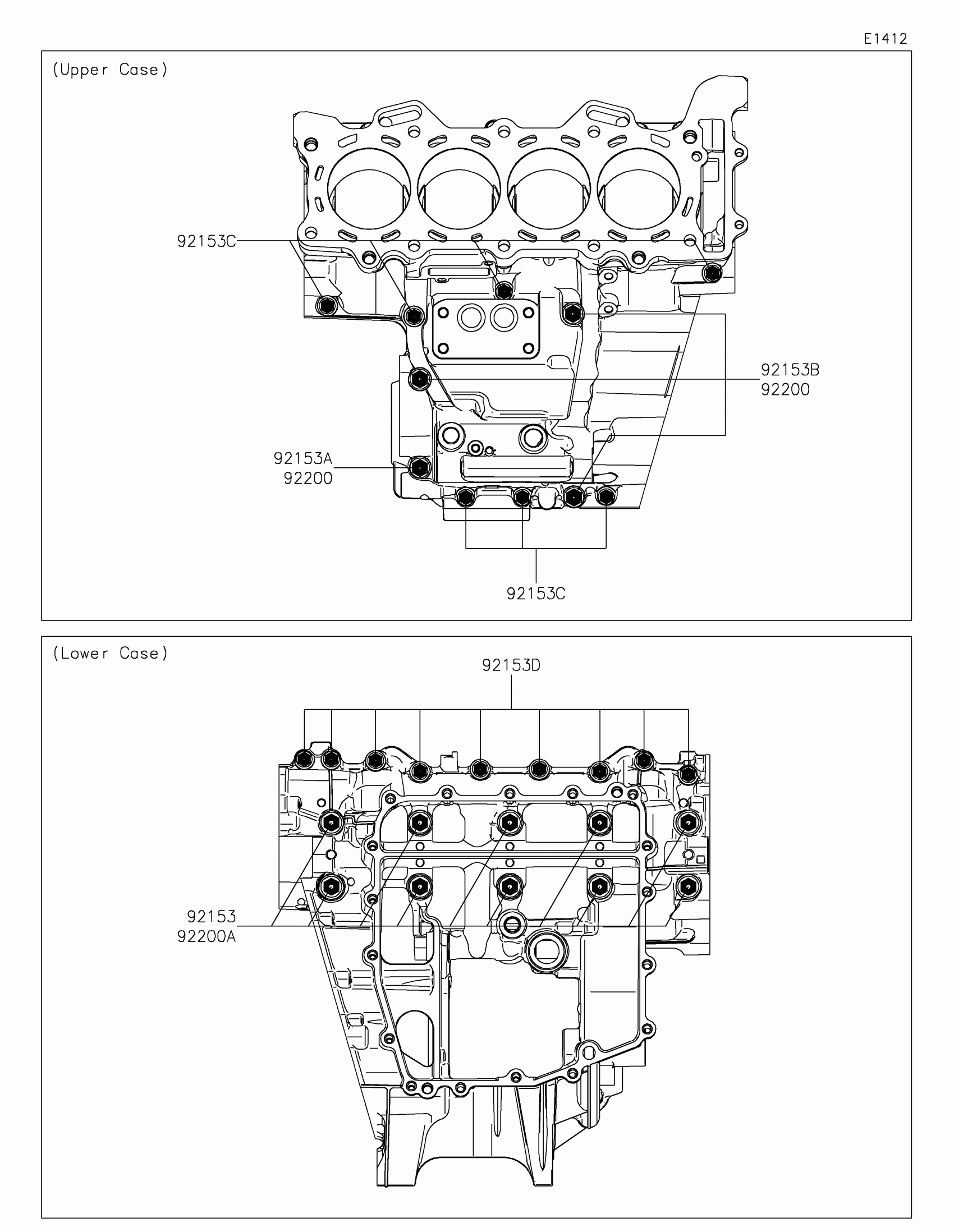

2023 Kawasaki Ninja ZX-6R (CA) Crankcase Bolt Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92153

BOLT,FLANGED,8X95

92153-1631

1
Out of stock

92153A

BOLT,FLANGED,8X90

92153-1632

1
Out of stock

92153B

BOLT,FLANGED,8X75

92153-1633

1
Out of stock

92153C

BOLT,FLANGED,6X68

92153-1637

1
Out of stock

92153D

BOLT,FLANGED,6X50

92153-1638

1
Out of stock

92200

WASHER,8.2X16X1.6

92200-0047

1
Out of stock

92200A

WASHER,8.5X18X3.0

92200-0153

1
Out of stock
