2023 Kawasaki Ninja ZX-6R (CA) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2023 Kawasaki Ninja ZX-6R (CA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

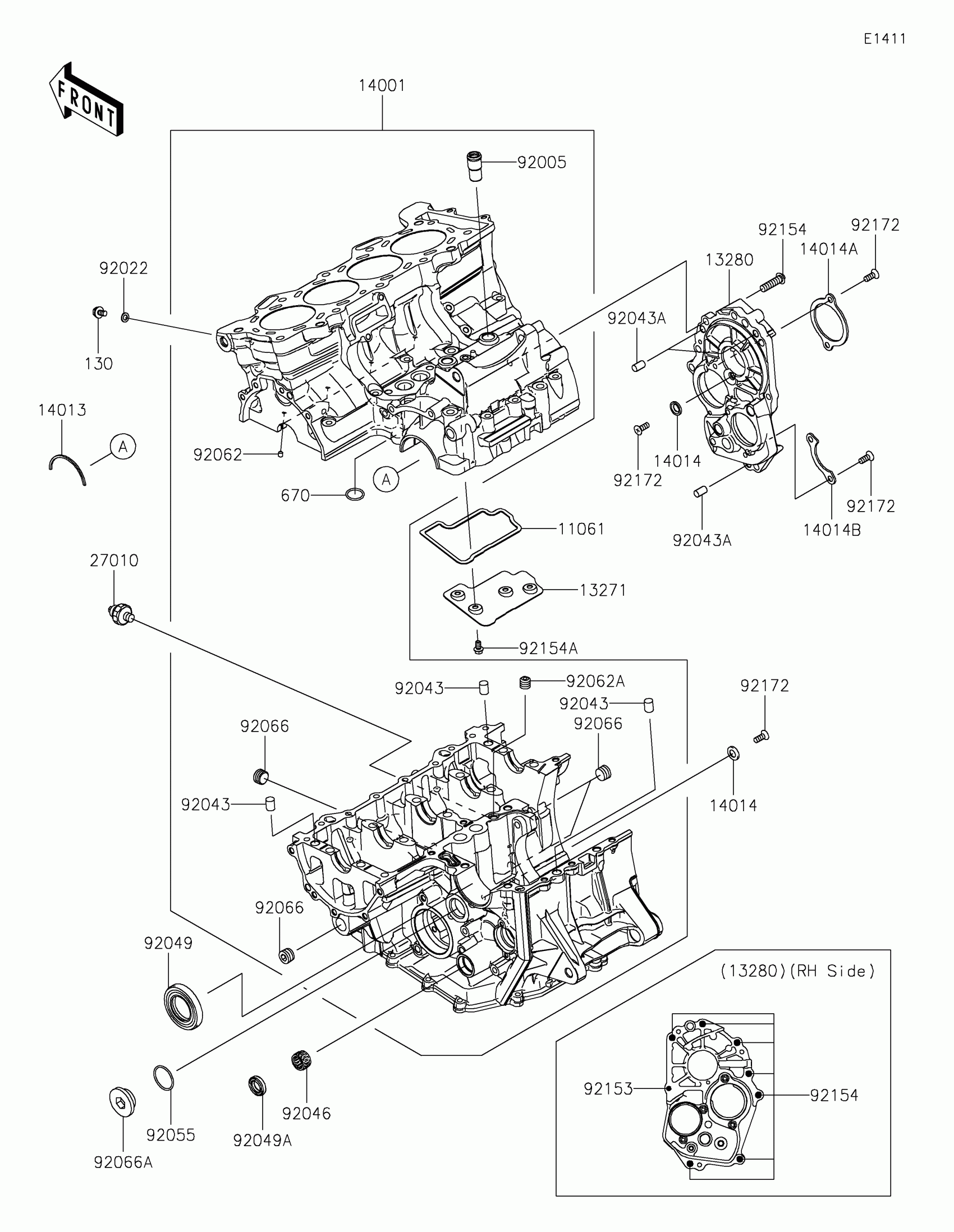

2023 Kawasaki Ninja ZX-6R (CA) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,BREATHER ROOM

11061-0291

1
Out of stock

13271

PLATE,BREATHER ROOM

13271-0795

1

$4.95

In stock

13280

HOLDER,TRANSMISSION

13280-0305

1

$229.30

In stock

14001

SET-CRANKCASE

14001-0611

1

$1,851.58

In stock

14013

RING-POSITION

14013-1051

1

$3.16

In stock

14014

1

$3.51

In stock

14014A

PLATE-POSITION

14014-0029

1

$8.46

In stock

14014B

PLATE-POSITION

14014-0030

1

$4.95

In stock

27010

SWITCH,OIL PRESSURE

27010-1313

1
Out of stock

92005

FITTING,BREATHER

92005-1238

1
Out of stock

92022

WASHER,6.2X11X1

92022-304

1
Out of stock

92043

PIN,10X14

92043-1506

1
Out of stock

92043A

PIN,8X14

92043-1567

1
Out of stock

92046

BEARING-NEEDLE,HK1412FM

92046-0043

1
Out of stock

92049

SEAL-OIL,TC32578

92049-1474

1
Out of stock

92049A

SEAL-OIL,TC14245

92049-1520

1
Out of stock

92055

RING-O,27.7X2.4

92055-091

1
Out of stock

92062

NOZZLE

92062-0019

1
Out of stock

92062A

NOZZLE

92062-1056

1
Out of stock

92066

PLUG,PT3/8X10

92066-0003

1
Out of stock

92066A

PLUG,25X8

92066-1161

1
Out of stock

92153

BOLT,TORX,6X25

92153-1640

1
Out of stock

92154

BOLT,TORX,8X28

92154-0415

1
Out of stock

92154A

BOLT,FLANGED,6X10

92154-1887

1
Out of stock

92172

SCREW,6X16

92172-0090

1
Out of stock

130

BOLT-FLANGED,6X10

130BD0610

1

$3.24

In stock

670

O RING,18MM

670D2018

1
Out of stock
