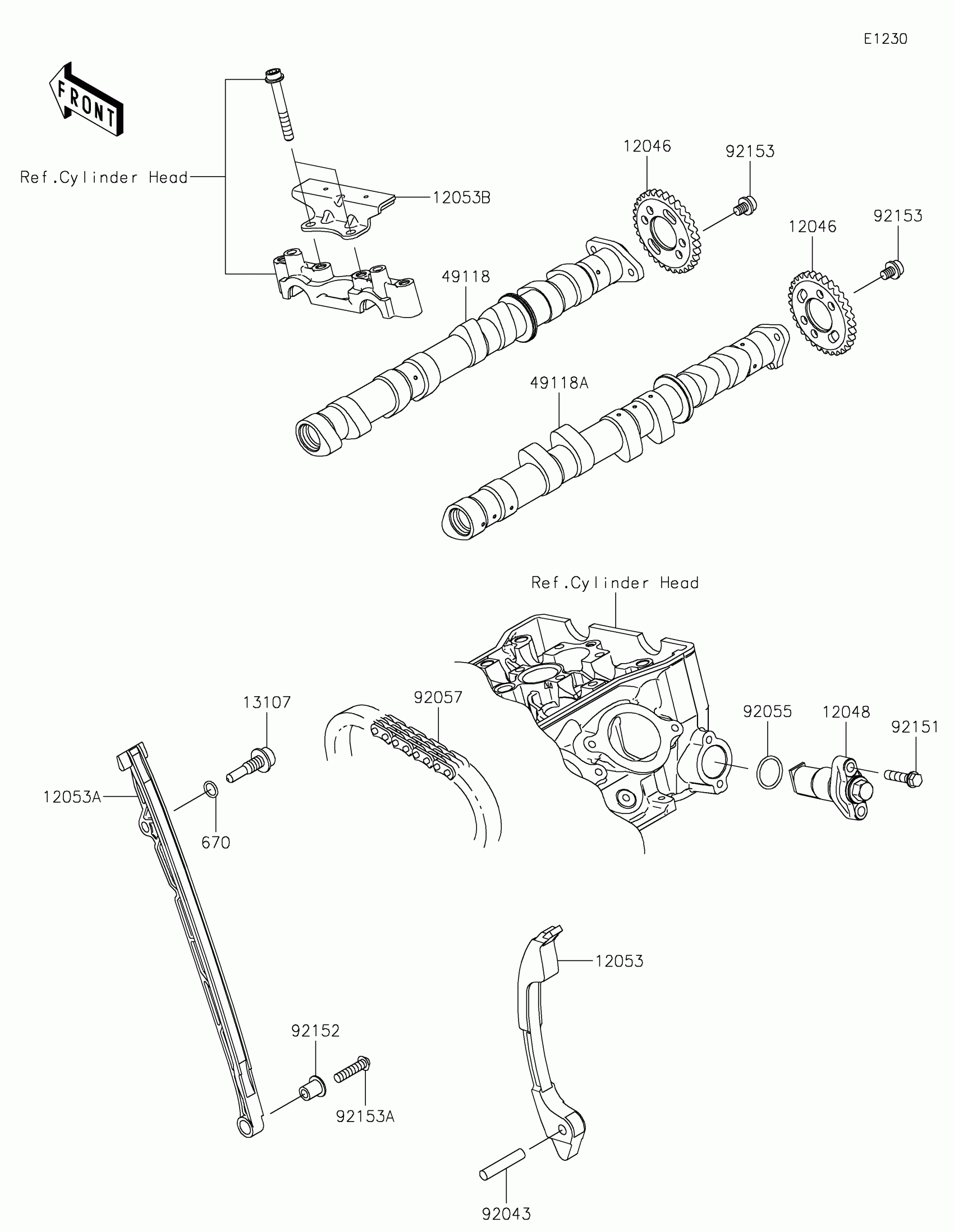

Kawasaki Ninja ZX-6R (CA) Camshaft(s)/Tensioner Diagram

Description

Price

12046

SPROCKET,32T

12046-0073

$74.16

12048

TENSIONER-ASSY

12048-1181

$116.81

12053

GUIDE-CHAIN,RR

12053-0085

$69.00

12053A

GUIDE-CHAIN,FR

12053-0158

$48.35

12053B

GUIDE-CHAIN,UPP

12053-0159

$19.91

13107

SHAFT,CHAIN GUIDE

13107-0157

$8.10

49118

CAMSHAFT-COMP,EXHAUST

49118-0752

$558.66

49118A

CAMSHAFT-COMP,INTAKE

49118-0779

$558.66

92043

PIN,7X36.4

92043-0114

$1.85

92055

RING-O,18.8X1.9

92055-086

$3.29

92057

CHAIN,CAM

92057-1531

$100.18

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

$1.98

92152

COLLAR

92152-0413

$8.46

92153

BOLT,FLANGED,6X8

92153-0455

$1.81

92153A

BOLT,TORX,6X25

92153-1640

$2.15

670

O RING,9MM

670D1509

$3.57
