2023 Kawasaki Ninja ZX-6R (CA) Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2023 Kawasaki Ninja ZX-6R (CA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

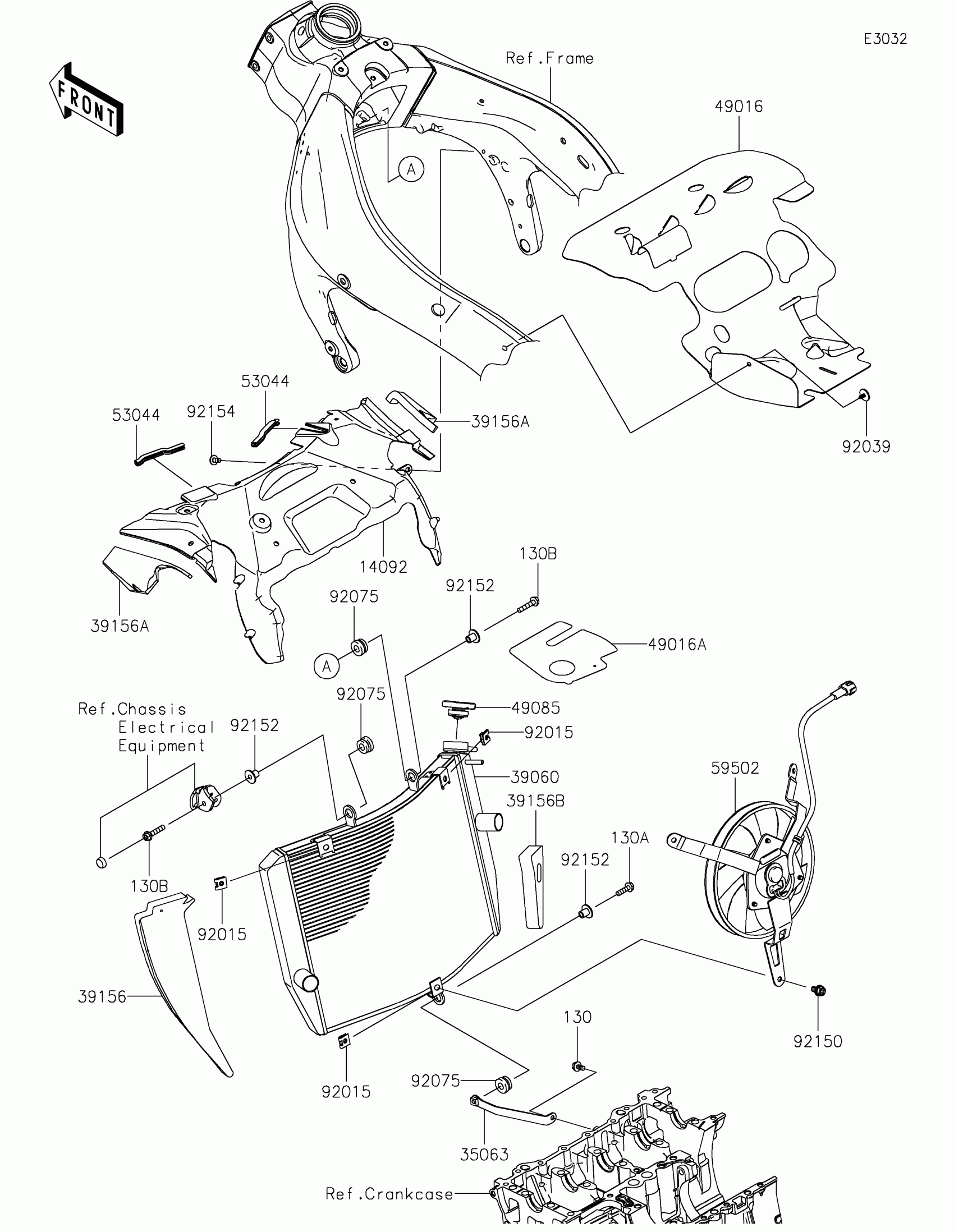

2023 Kawasaki Ninja ZX-6R (CA) Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14092

COVER,RADIATOR UPP

14092-1089

1
Out of stock

35063

STAY,RADIATOR LOW

35063-0899

1
Out of stock

39060

RADIATOR

39060-0708

1
Out of stock

39156

PAD,RADIATOR LH

39156-2332

1
Out of stock

39156A

PAD,RADIATOR-COVER SIDE(R/L)

39156-2427

1
Out of stock

39156B

PAD,RADIATOR RH

39156-2453

1
Out of stock

49016

COVER-SEAL,ENGINE RR

49016-0604

1
Out of stock

49016A

COVER-SEAL,RESERVOIR UPPER

49016-0664

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-1078

1
Out of stock

53044

TRIM

53044-0018

1

$4.14

In stock

59502

FAN-ASSY

59502-0623

1
Out of stock

92015

NUT

92015-1487

1
Out of stock

92039

RIVET

92039-0065

1
Out of stock

92075

DAMPER,RUBBER

92075-1123

1
Out of stock

92150

BOLT,6X12

92150-1186

1
Out of stock

92152

COLLAR

92152-0666

1
Out of stock

92154

BOLT,6X12

92154-1892

1
Out of stock

130

BOLT-FLANGED,6X14

130CA0614

1

$3.28

In stock

130A

BOLT-FLANGED,6X22

130CA0622

1

$2.20

In stock

130B

BOLT-FLANGED,6X30

130CA0630

1

$2.05

In stock
