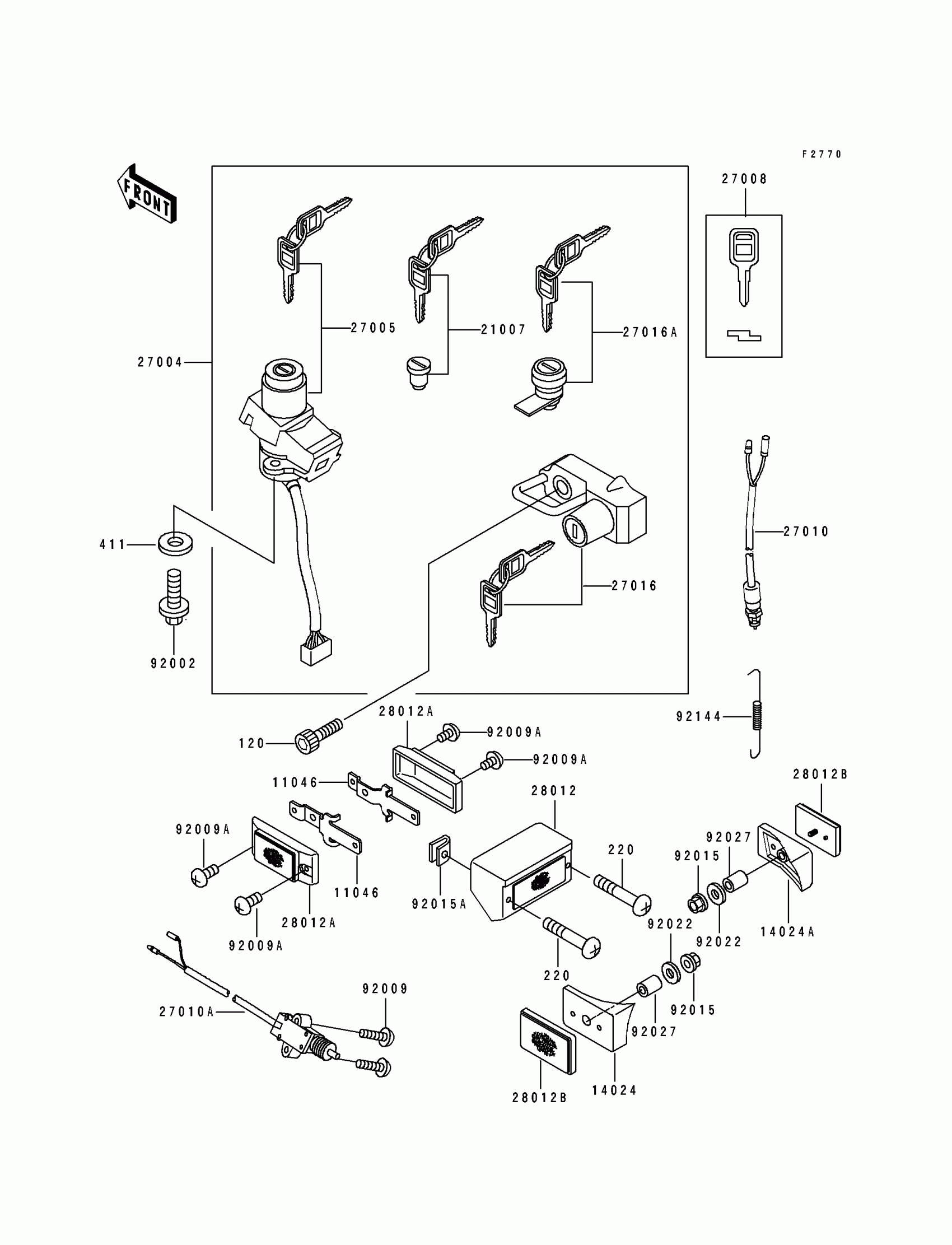

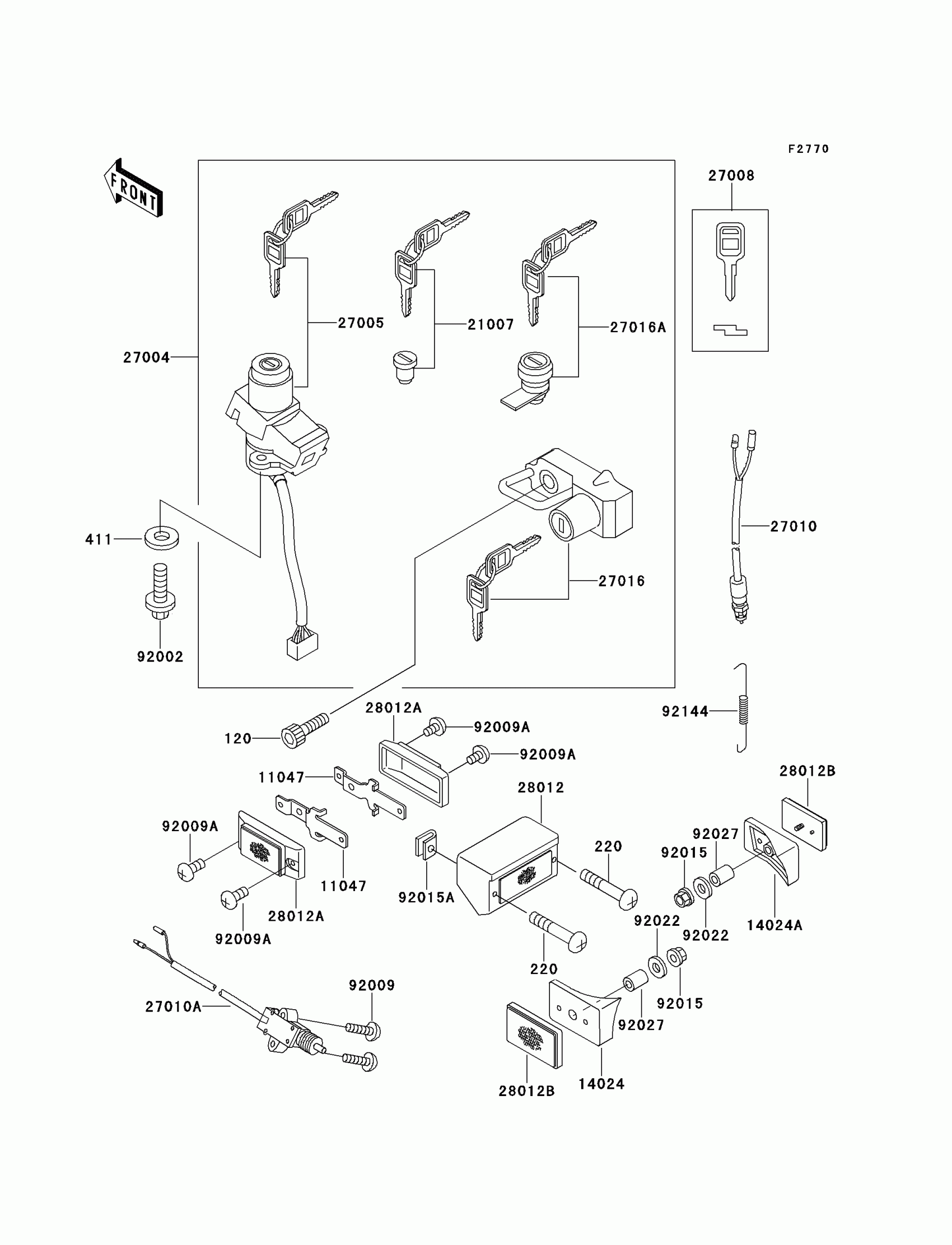

Kawasaki Ninja® ZX™-6 Ignition Switch Diagram

#

Description
Price

120

BOLT-SOCKET,6X16

120S0616

Unavailable

220

SCREW-PAN-CROS,5X55

220C0555

Unavailable

411

WASHER-PLAIN,6MM

411E0600

$1.03

11047

BRACKET,FR REFLECTOR

11046-1945

Unavailable

14024

COVER,REFLECTOR,LH

14024-1940

$13.78

14024A

COVER,REFLECTOR,RH

14024-1941

$13.78

21007

ROTOR,LOCK,TANK CAP

21007-5027

$94.15

27004

SWITCH-ASSY

27004-5386

Unavailable

27005

SWITCH-ASSY-IGNITION

27005-5081

$251.72

27008

KEY-LOCK,BLANK

27008-1103

$16.44

27010

SWITCH,BRAKE LAMP

27010-1093

$26.58

27010A

SWITCH,SIDE STAND

27010-1226

$73.52

27016

LOCK-ASSY,HELMET

27016-5163

Unavailable

27016A

LOCK-ASSY,TOOL BOX

27016-5164

$83.35

28012

REFLECTOR-REFLEX,RR

28012-1069

Unavailable

28012A

REFLECTOR-REFLEX,FR

28012-1070

Unavailable

28012B

REFLECTOR-REFLEX,RR

28012-1072

$24.61

92002

BOLT,TORX,6X16

92002-1333

$1.85

92009

SCREW,5X22

92009-1492

$4.08

92009A

SCREW,5X8

92009-1548

$4.27

92015

NUT,FLANGED,5MM

92015-1259

$2.99

92015A

NUT,5MM

92015-1798

$5.12

92022

WASHER,5.2X16X1.2

92022-263

$1.22

92027

COLLAR,5.6X8X14.5

92027-1789

$4.42

92144

SPRING,REAR BRAKE SWITCH

92144-1283

$5.47
