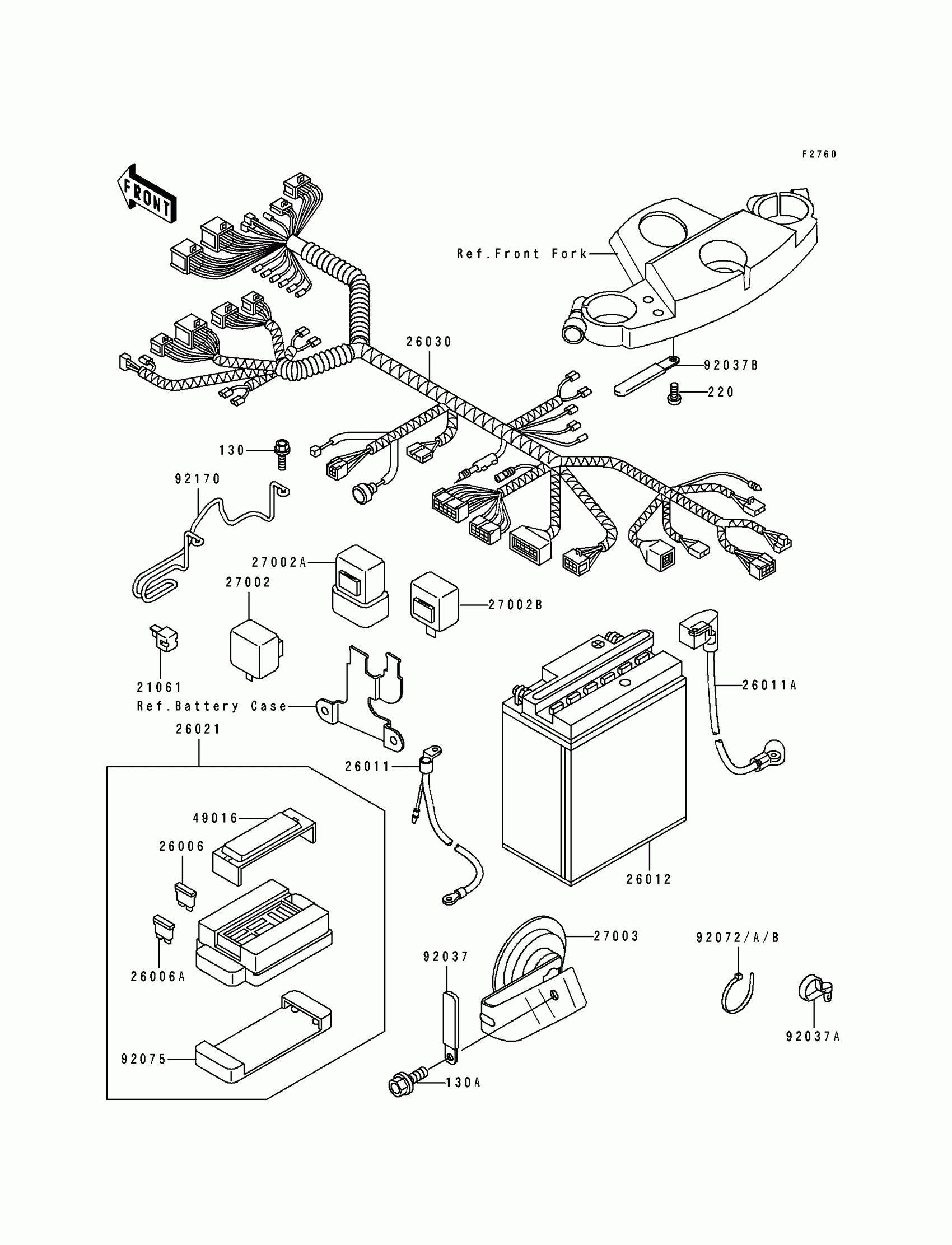

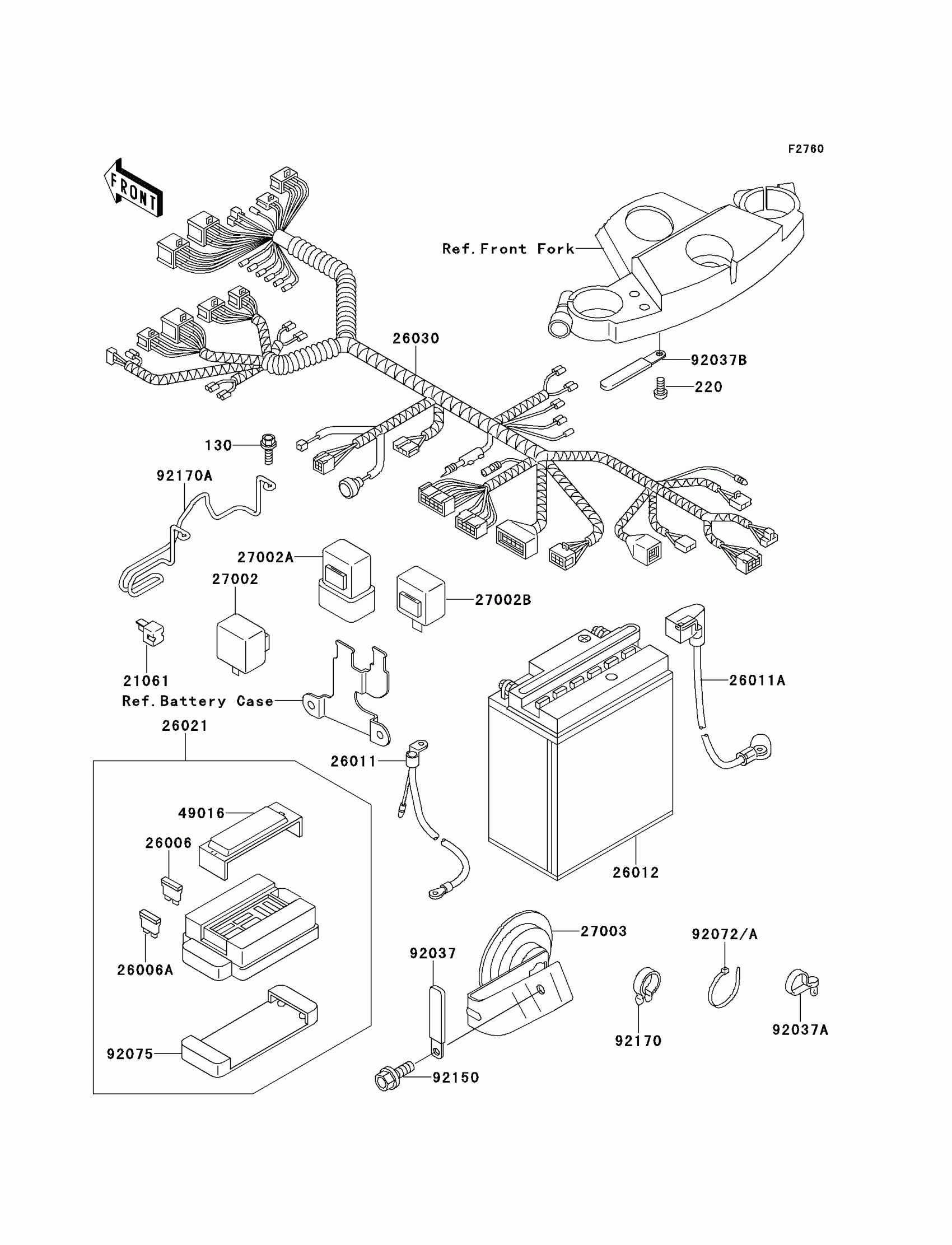

Kawasaki Ninja® ZX™-6 Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED

130J0620

Unavailable

220

SCREW-PAN-CROS,5X10

220C0510

Unavailable

21061

RECTIFIER

21061-1003

$30.17

26006

FUSE,BLADE,30A,GREEN

26006-1067

Unavailable

26006A

FUSE,10A-R

26006-1068

Unavailable

26011

WIRE-LEAD,BATTERY GROUND

26011-1195

Unavailable

26011A

WIRE-LEAD,BATTERY(+)

26011-1315

Unavailable

26012

BATTERY,FB12A-A,12V 12AH

26012-1246

$96.88

26021

JUNCTION BOX

26021-1077

$221.06

26030

HARNESS,MAIN

26030-1018

Unavailable

27002

RELAY-ASSY,TURN SIGNAL

27002-1060

$96.83

27002A

RELAY-ASSY,FUEL SENSOR

27002-1072

$87.11

27002B

RELAY-ASSY,FUEL LAMP

27002-1073

Unavailable

27003

HORN,LH

27003-1325

$84.06

49016

COVER-SEAL,FUSE

49016-1125

Unavailable

92037

CLAMP

92037-113

$4.83

92037A

CLAMP,SPEED,L=58

92037-1163

$4.93

92037B

CLAMP,L=45

92037-1539

$4.42

92072

BAND,L=202

92072-1195

$1.16

92072A

BAND,L=250

92072-1237

$1.55

92075

DAMPER,JUNCTION BOX

92075-1688

$13.64

92150

BOLT,FLANGED,8X20

92150-1224

$0.71

92170

CLAMP

92170-1067

$5.69

92170A

CLAMP

92170-1168

$20.88
