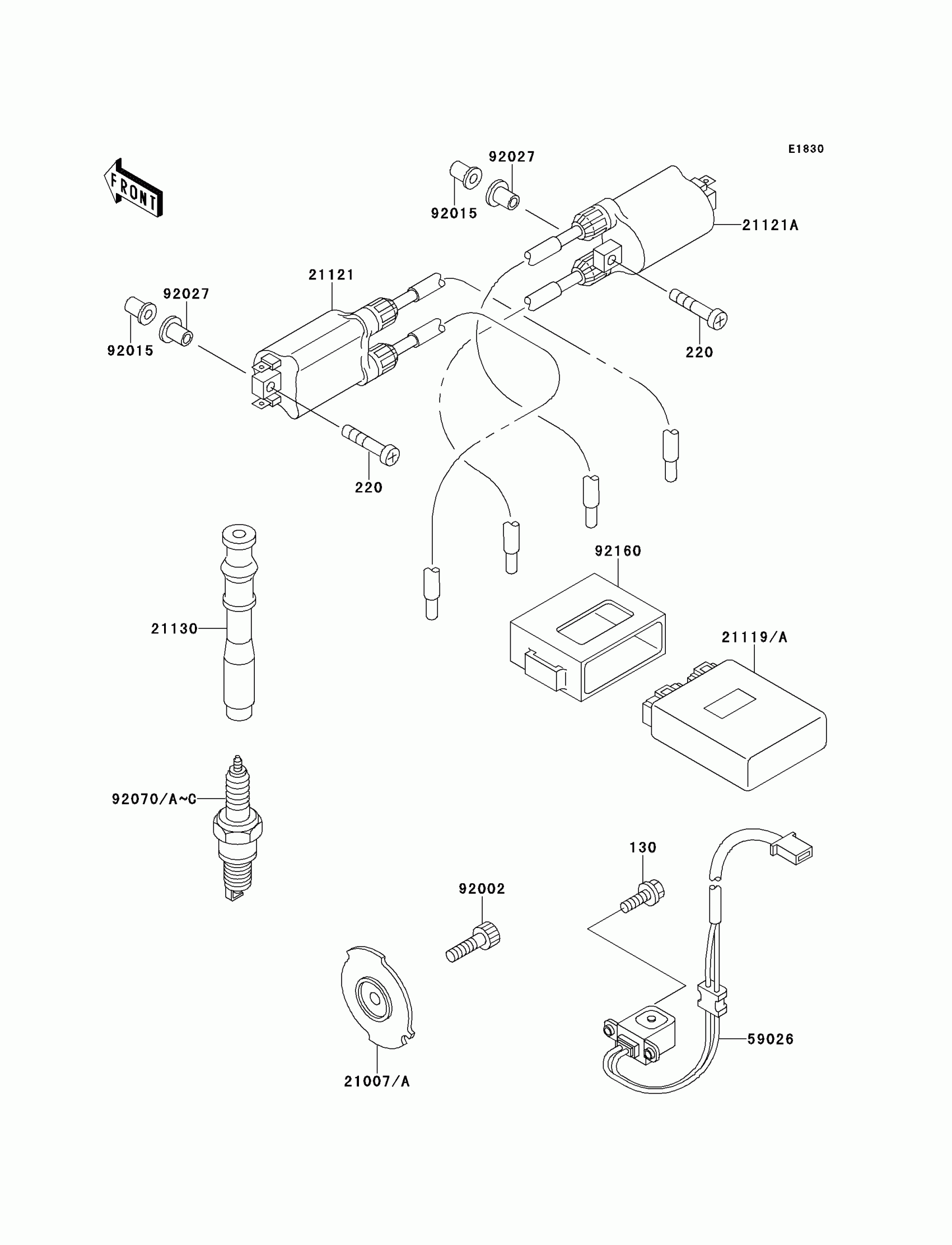

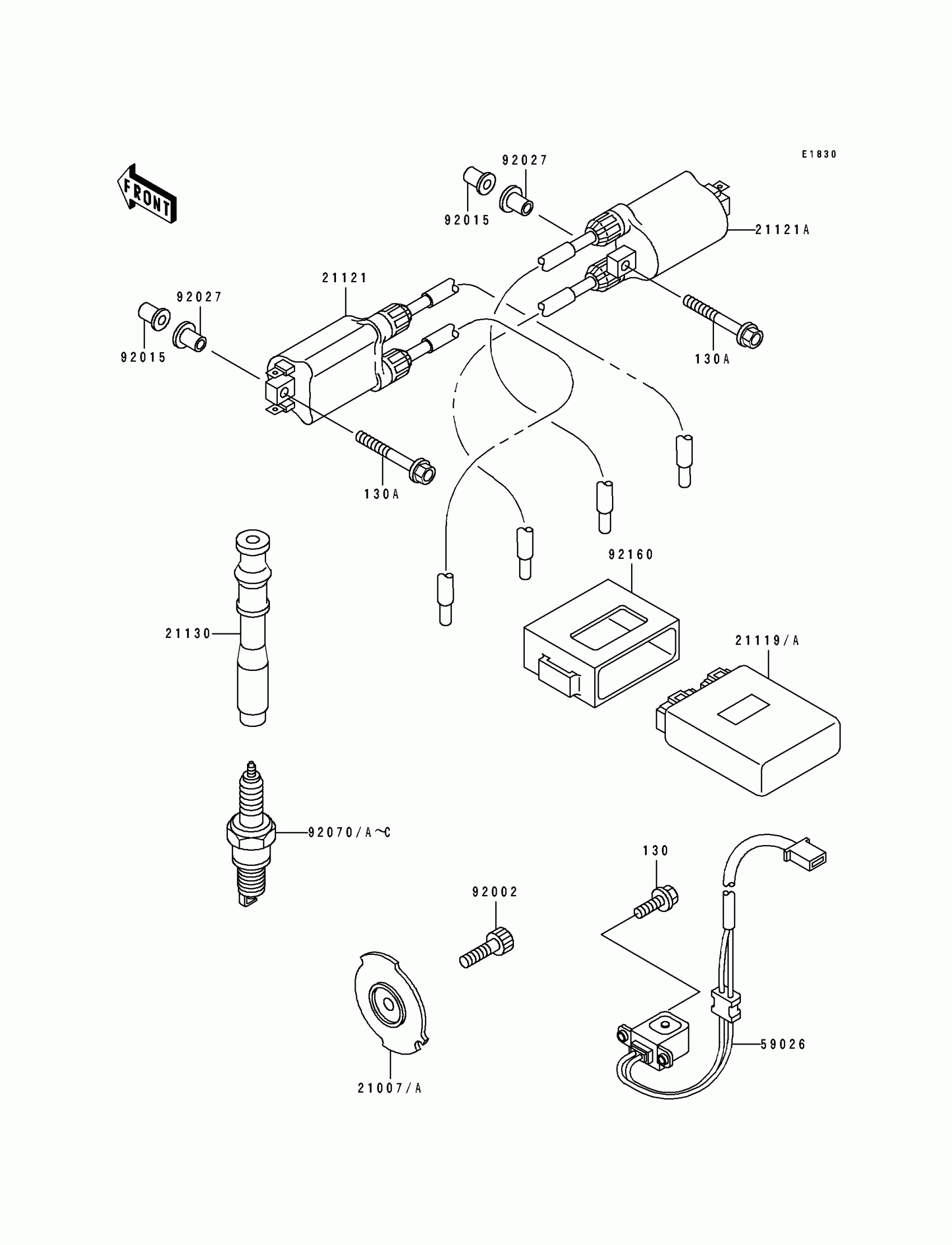

Kawasaki Ninja® ZX™-6 Ignition Coil Diagram

Description

Price

130

BOLT-FLANGED,5X12

130G0512

Unavailable

220

SCREW PAN HEAD 6X45

220B0645

$1.33

21121

COIL-IGNITION,#1

21121-1184

$151.55

21121A

COIL-IGNITION,#2

21121-1185

$184.84

21130

CAP-SPARK PLUG

21130-1065

$51.79

59026

COIL-PULSING

59026-1100

$150.54

92002

BOLT,SOCKET,8X25

92002-1442

$3.85

92015

NUT

92015-1700

$6.55

92027

COLLAR

92027-195

$4.93

92070C

____________________________ CN

L_______

Unavailable

92160

DAMPER,IGNITER

92160-1223

Unavailable

21007

ROTOR,PULSING

21007-1205

$53.39

21007A

ROTOR,PULSING

21007-1209

$49.78

21119

IGNITER

21119-1285

$752.57

21119A

IGNITER

21119-1288

$752.57

92070

PLUG-SPARK,C9E(NGK)

92070-1142

$4.54

92070A

PLUG-SPARK,CR9E(NGK)

92070-1143

$5.44

92070B

Not Available As Spare Part - Friction Washer

Unavailable
