Find the part on the Muffler diagram for your 2024 Kawasaki Ninja ZX-4RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

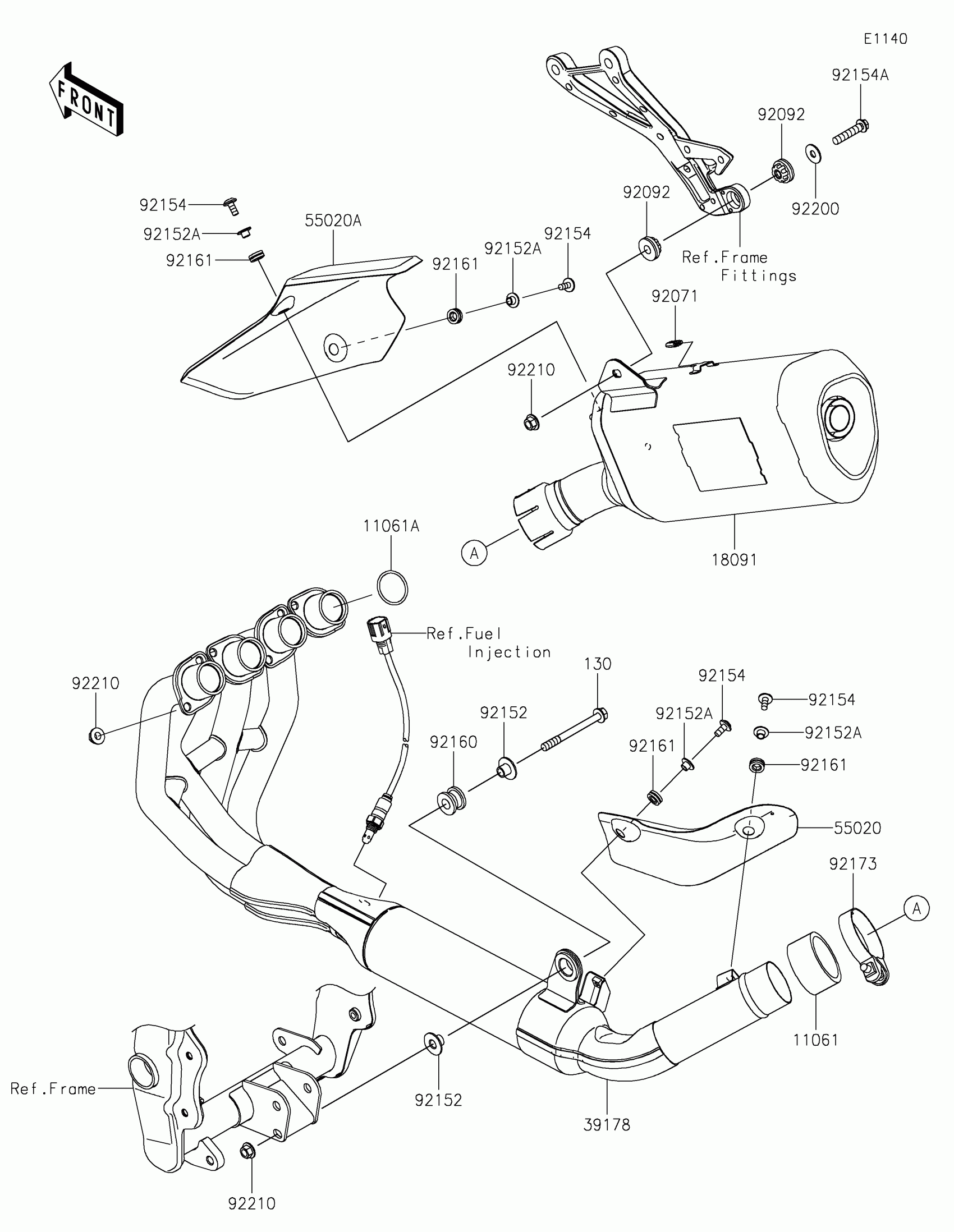

2024 Kawasaki Ninja ZX-4RR Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,50.8X62X30

11061-0447

1
Out of stock

11061A

GASKET,MANIFOLD

11061-1372

1
Out of stock

18091

BODY-COMP-MUFFLER

18091-1269

1
Out of stock

39178

MANIFOLD-COMP-EXHAUST

39178-0454

1
Out of stock

55020

GUARD,FR

55020-2391

1
Out of stock

55020A

GUARD,RR

55020-2392

1
Out of stock

92071

GROMMET

92071-0760

1
Out of stock

92092

BUSHING-RUBBER

92092-0044

1
Out of stock

92152

COLLAR

92152-2367

1
Out of stock

92152A

COLLAR,6.3X8.3X16

92152-2850

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-0907

1
Out of stock

92154A

BOLT,FLANGED,8X40

92154-4399

1
Out of stock

92160

DAMPER,MUFFLER MOUNT

92160-1116

1
Out of stock

92161

DAMPER

92161-1475

1

$4.23

In stock

92173

CLAMP

92173-2516

1
Out of stock

92200

WASHER,8.0X22.0X1.5

92200-0174

1
Out of stock

92210

NUT

92210-1312

1
Out of stock

130

BOLT-FLANGED,8X85

130CB0885

1

$4.68

In stock
