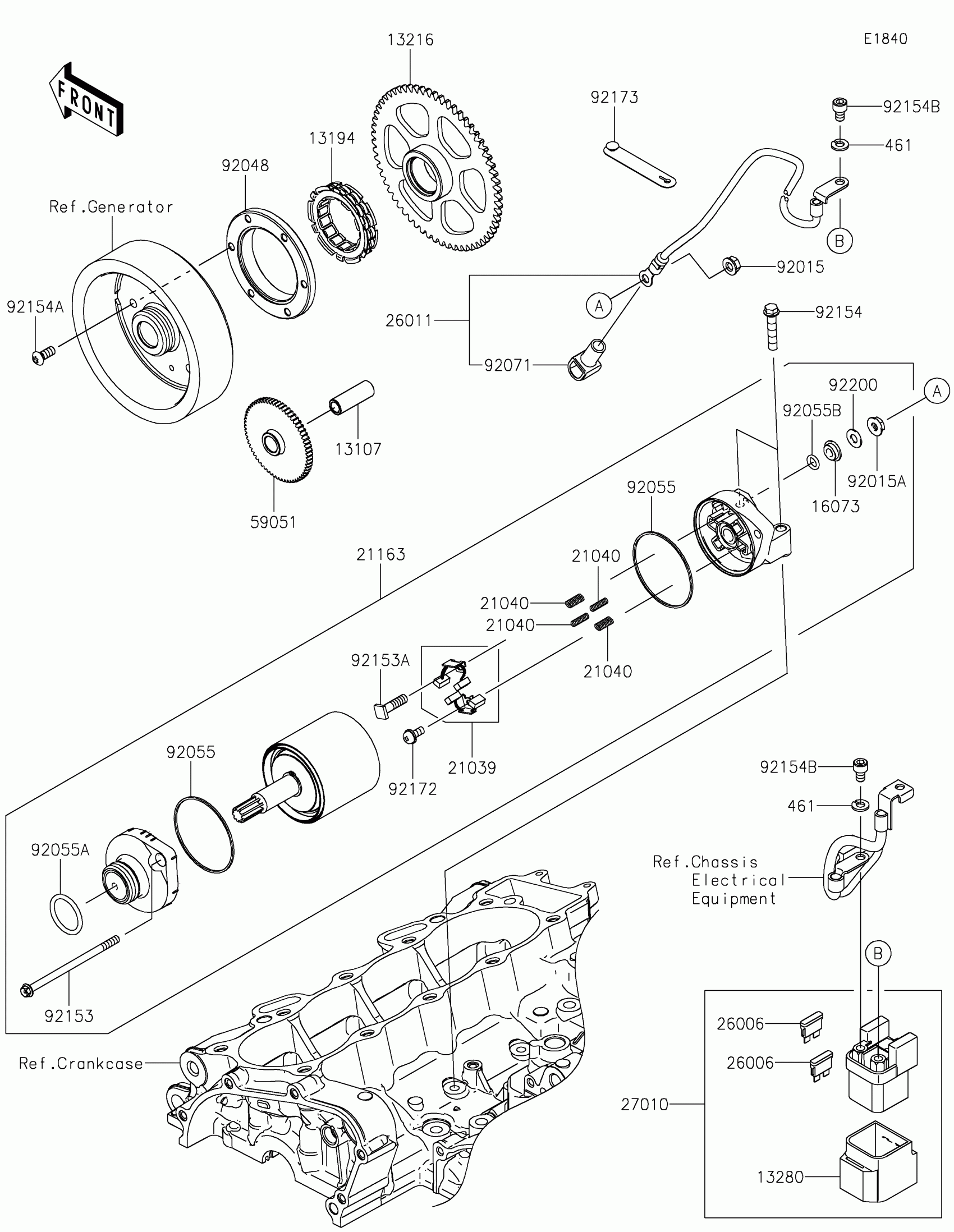

Kawasaki Ninja ZX-4R ABS Starter Motor Diagram

#

Description
Price

13107

SHAFT,IDLER

13107-0861

$11.76

13194

CLUTCH-ONEWAY

13194-1096

$108.18

13216

GEAR-COMP,ONEWAY CLUTCH

13216-0913

$195.54

13280

HOLDER

13280-0301

$13.37

16073

INSULATOR

16073-0053

$11.42

21039

BRUSH,CARBON

21039-0004

$120.17

21040

SPRING-BRUSH

21040-0003

$9.47

21163

STARTER-ELECTRIC

21163-0793

$577.91

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.39

26011

WIRE-LEAD,STARTER

26011-1942

$68.30

27010

SWITCH,MAGNETIC

27010-0099

$129.95

59051

GEAR-SPUR,IDLER

59051-0840

$124.81

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92015A

NUT,STARTER MOTOR

92015-1476

$3.85

92048

RACE

92048-0024

$57.27

92055

RING-O

92055-0136

$5.91

92055A

RING-O

92055-1276

$7.54

92055B

RING-O,4.5X2.0

92055-1370

$4.17

92071

GROMMET

92071-0024

$9.86

92153

BOLT

92153-1850

$11.42

92153A

BOLT

92153-1866

$4.14

92154

BOLT,FLANGED,6X30

92154-1080

$0.95

92154A

BOLT,TORX,6X14

92154-1225

$1.47

92154B

BOLT,SOCKET,6X10

92154-4401

$0.69

92172

SCREW

92172-0334

$4.14

92173

CLAMP

92173-2199

$1.32

92200

WASHER

92200-0386

$4.14

461

WASHER-SPRING,6MM

461DA0600

$0.66
