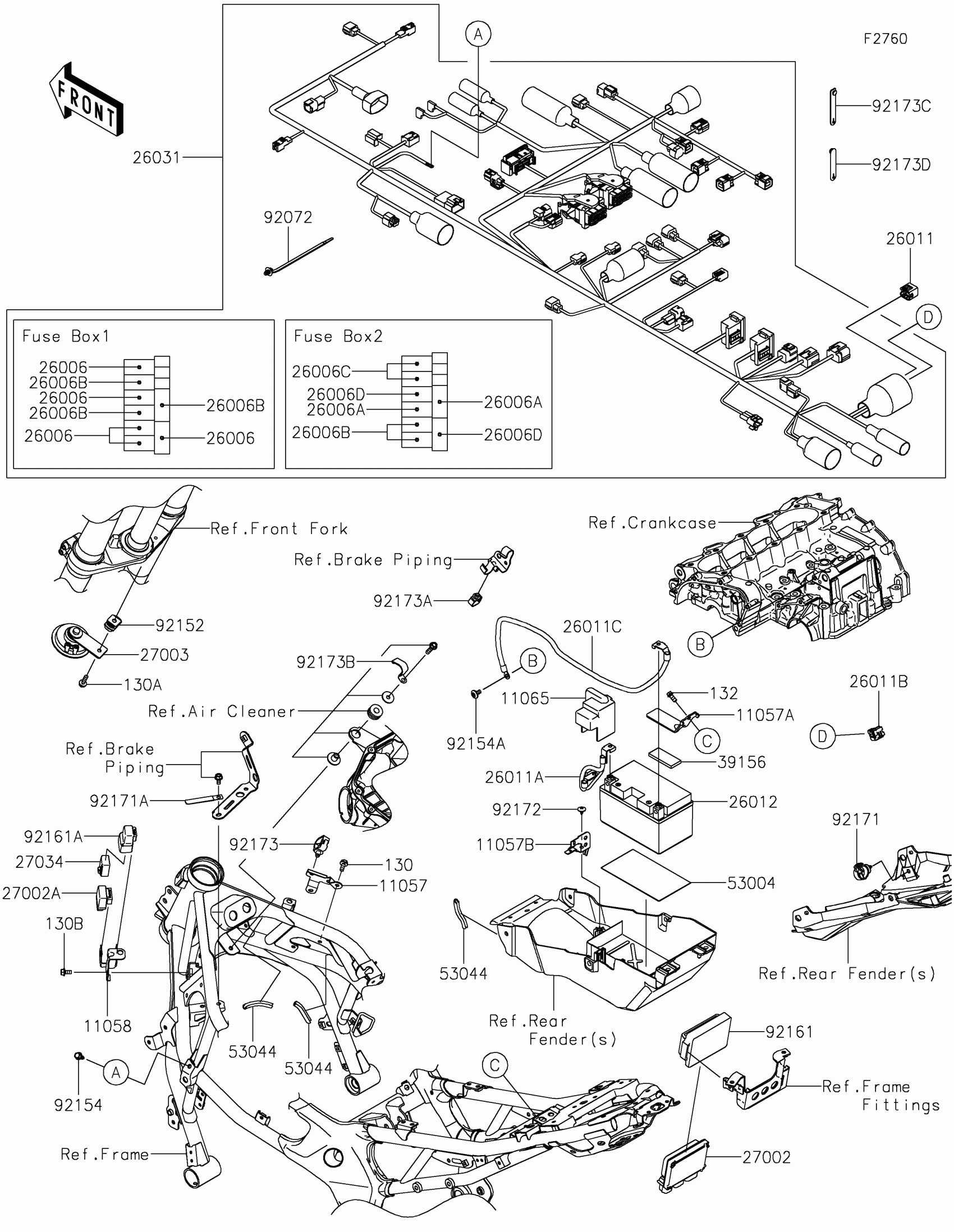

Kawasaki Ninja ZX-4R ABS Chassis Electrical Equipment Diagram

#

Description
Price

11057

BRACKET,FRAME,RH

11057-2877

$2.76

11057A

BRACKET,BATTERY MOUNT

11057-2926

$4.08

11057B

BRACKET,RR FENDER

11057-7041

$3.81

11058

BRACKET,RELAY

11058-0349

$3.83

11065

CAP,MAGNETIC SWITCH

11065-1352

$3.78

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

$5.34

26006A

FUSE,MINI BLADE,5A,TAN

26006-1077

$4.32

26006B

FUSE,MINI BLADE,10A,RED

26006-1078

$3.36

26006C

FUSE,MINI BLADE,20A,YELLOW

26006-1079

$3.71

26006D

FUSE,MINI BLADE,30A,GREEN

26006-1080

$4.32

26011

WIRE-LEAD,CONNECTOR COVER

26011-0275

$13.42

26011A

WIRE-LEAD,BATTERY(+)

26011-1896

$43.27

26011B

WIRE-LEAD,DIAG CONNECTOR

26011-1901

$33.04

26011C

WIRE-LEAD,BATTERY(-)

26011-2425

$32.46

26012

BATTERY,YTZ10,12V 8.6AH

26012-1606

$210.80

26031

HARNESS,MAIN

26031-4113

$1,235.39

27002

RELAY-ASSY

27002-0061

$171.42

27002A

RELAY-ASSY,SIGNAL LAMP

27002-0068

$84.96

27003

HORN

27003-0124

$82.72

27034

RELAY

27034-0012

$37.62

39156

PAD,56X25X5

39156-2808

$1.73

53004

MAT,BATTERY

53004-0560

$8.85

53044

TRIM

53044-0565

$2.68

92072

BAND,OS170-FT7(BLACK)

92072-1414

Unavailable

92152

COLLAR

92152-2657

$13.97

92154

BOLT,FLANGED,6X16

92154-0551

$1.44

92154A

BOLT,SOCKET,6X12

92154-2355

$1.43

92161

DAMPER,RELAY BOX

92161-0203

$10.02

92161A

DAMPER

92161-2290

$5.27

92171

CLAMP,CLIP,DIA=20

92171-0068

$2.29

92171A

CLAMP,L=60

92171-0652

$1.85

92172

SCREW,TAPPING,6X12

92172-0003

$2.29

92173

CLAMP

92173-0861

$2.11

92173A

CLAMP,HOLDER CLIP

92173-0868

$2.11

92173B

CLAMP

92173-1549

$4.61

92173C

CLAMP

92173-2194

$1.56

92173D

CLAMP

92173-2199

$1.32

130

BOLT-FLANGED,6X14

130BA0614

$0.97

130A

BOLT-FLANGED,6X20

130BA0620

$1.28

130B

BOLT-FLANGED,6X12

130CA0612

$3.02

132

BOLT-FLANGED-SMALL,6X14

132BC0614

$0.76
