2025 Kawasaki Ninja ZX-4R ABS Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2025 Kawasaki Ninja ZX-4R ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

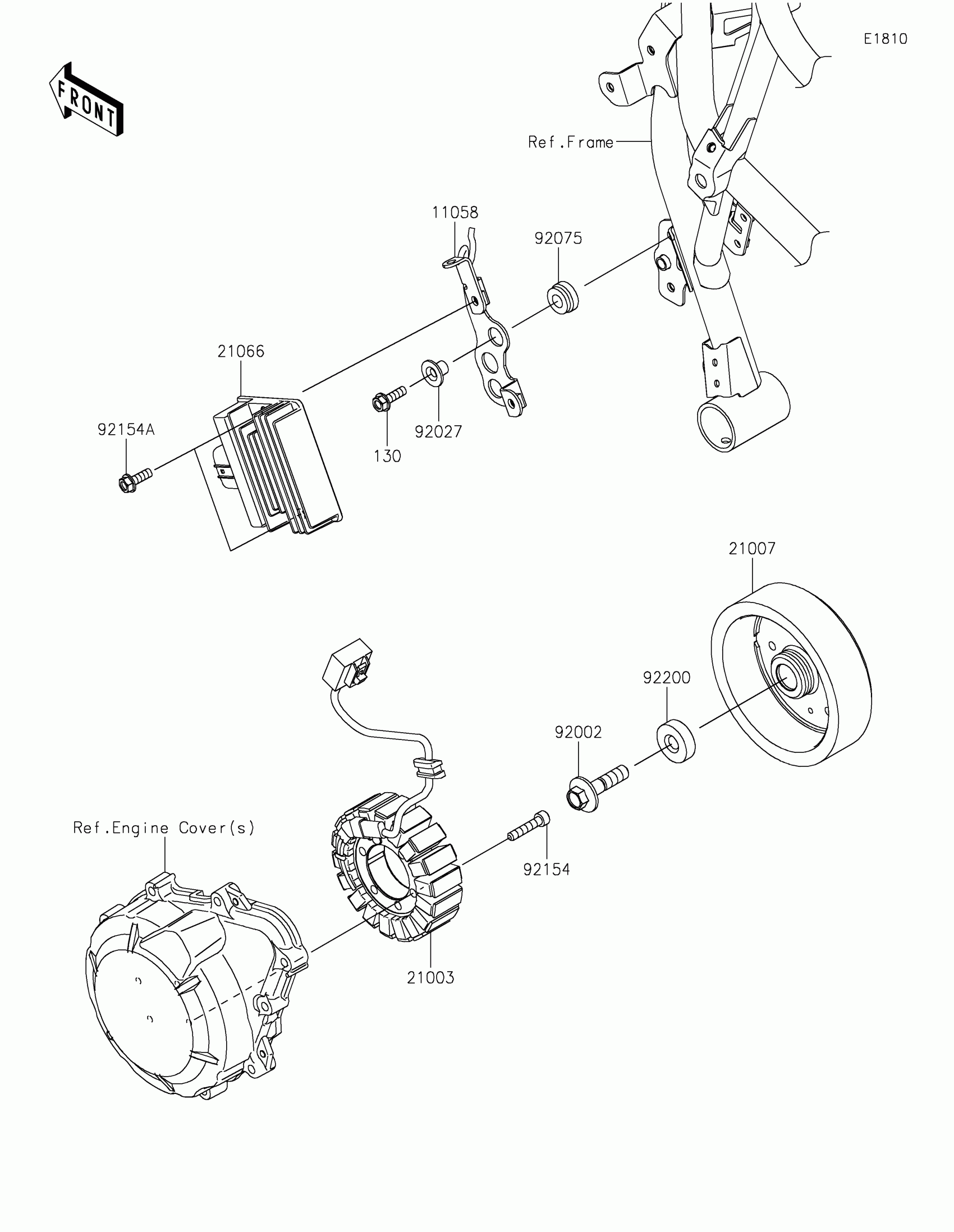

2025 Kawasaki Ninja ZX-4R ABS Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,REGULATOR

11058-0544

1
Out of stock

21003

STATOR

21003-0195

1
Out of stock

21007

ROTOR

21007-0690

1
Out of stock

21066

REGULATOR-VOLTAGE

21066-0761

1
Out of stock

92002

BOLT,FLANGED,10X40

92002-1296

1
Out of stock

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

1
Out of stock

92075

DAMPER

92075-277

1
Out of stock

92154

BOLT,SOCKET,6X30

92154-2820

1
Out of stock

92154A

BOLT,FLANGED,6X18

92154-7033

1
Out of stock

92200

WASHER,10X30X9

92200-0790

1
Out of stock

130

BOLT-FLANGED,6X20

130BC0620

1
Out of stock
