2014 Kawasaki Ninja® ZX™-14R ABS Throttle Diagram

← All diagrams

Find the part on the Throttle diagram for your 2014 Kawasaki Ninja® ZX™-14R ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

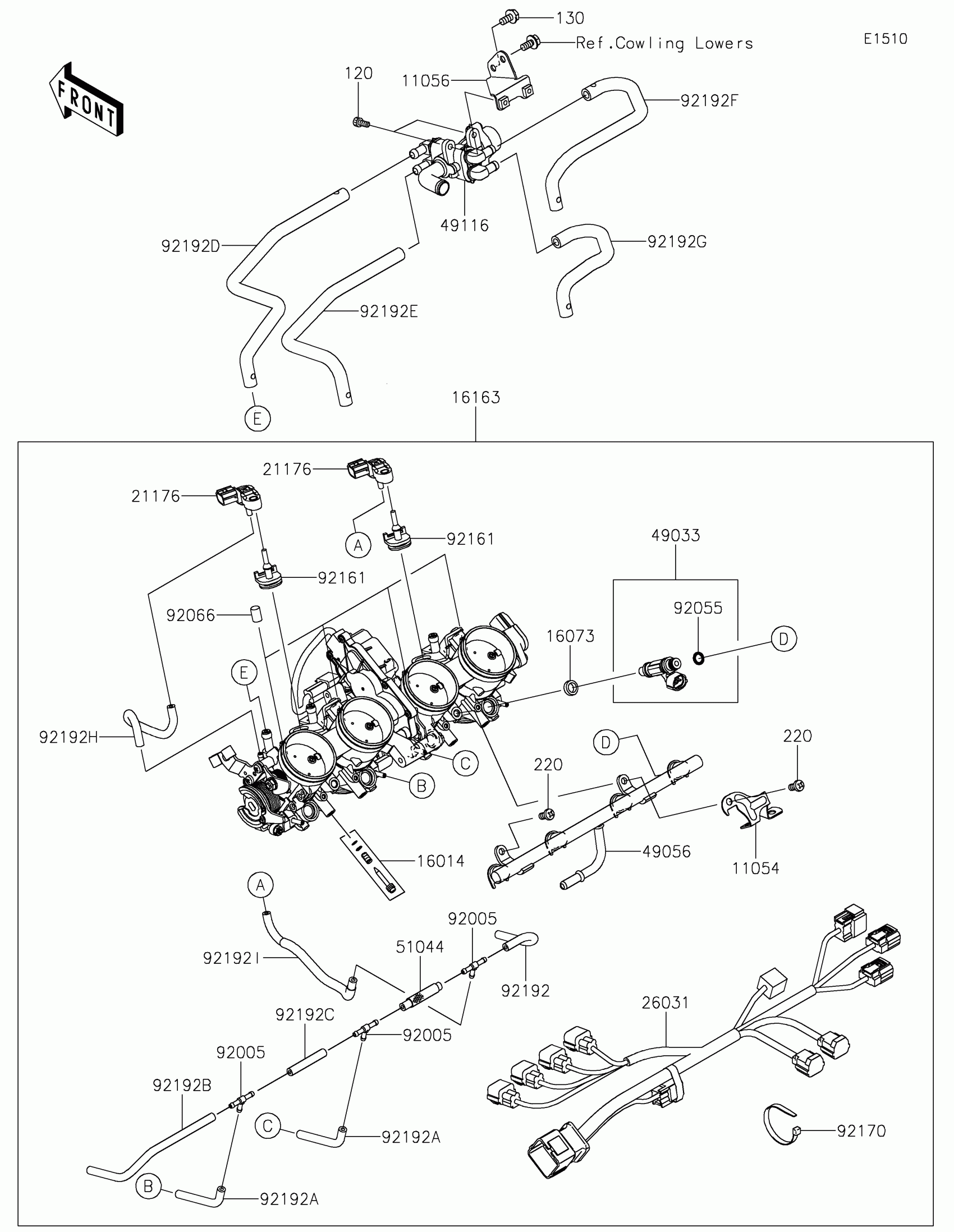

2014 Kawasaki Ninja® ZX™-14R ABS Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X12

120CA0512

1

$1.37

In stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

220

1

$1.10

In stock

11054

BRACKET

11054-0554

1

$23.07

In stock

11056

BRACKET,ISCV

11056-1175

1

$9.14

In stock

16014

SCREW-PILOT AIR

16014-0005

1

$31.36

In stock

16073

INSULATOR,INJECTER

16073-1123

1

$7.72

In stock

16163

THROTTLE-ASSY

16163-0780

1

$1,971.98

In stock

21176

SENSOR,PRESSURE

21176-0111

1

$226.99

In stock

26031

HARNESS

26031-1425

1

$183.07

In stock

49033

NOZZLE-INJECTION

49033-0557

1

$135.75

In stock

49056

PIPE-INJECTION

49056-0017

1

$216.16

In stock

49116

VALVE-ASSY,ISC

49116-0706

1

$249.15

In stock

51044

TUBE-ASSY

51044-0727

1

$14.00

In stock

92005

FITTING

92005-1380

1
Out of stock

92055

1

$1.64

In stock

92066

PLUG,FITTING

92066-1549

1

$6.23

In stock

92161

DAMPER

92161-0673

1

$4.85

In stock

92170

CLAMP

92170-3749

1

$3.15

In stock

92192

TUBE,3.2X7.4X115

92192-0131

1
Out of stock

92192A

TUBE,3.2X7.4X60

92192-0576

1
Out of stock

92192B

TUBE,3.2X7.4X175

92192-0577

1
Out of stock

92192C

TUBE,3.2X7.4X50

92192-0578

1
Out of stock

92192D

TUBE,THROTTLE #1-ISCV

92192-1009

1
Out of stock

92192E

TUBE,THROTTLE #2-ISCV

92192-1010

1
Out of stock

92192F

TUBE,THROTTLE #3-ISCV

92192-1011

1
Out of stock

92192G

TUBE,THROTTLE #4-ISCV

92192-1012

1
Out of stock

92192H

TUBE,BODY LH-SENSOR

92192-1088

1
Out of stock

92192I

TUBE,FITTING-SENSOR

92192-1089

1
Out of stock
