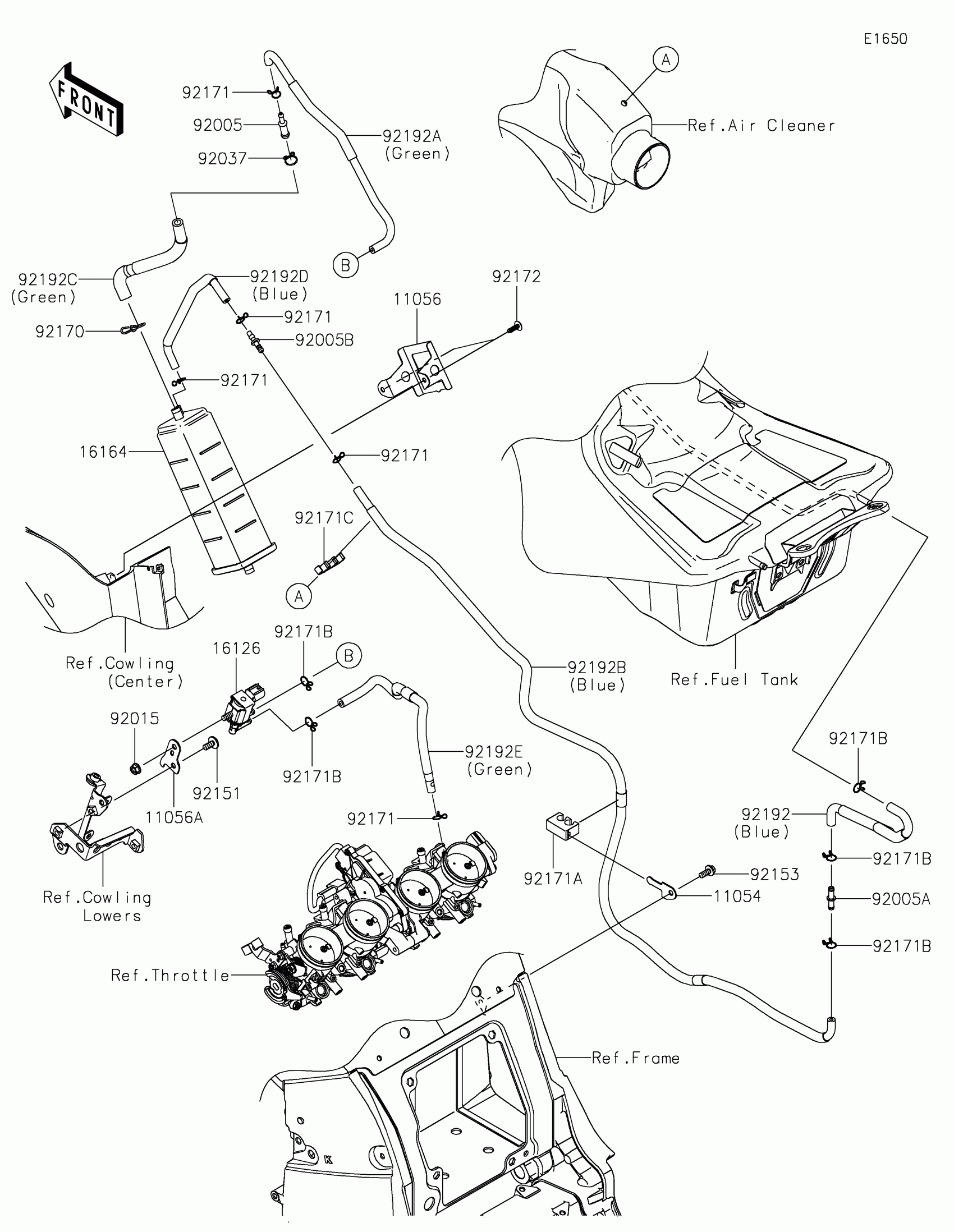

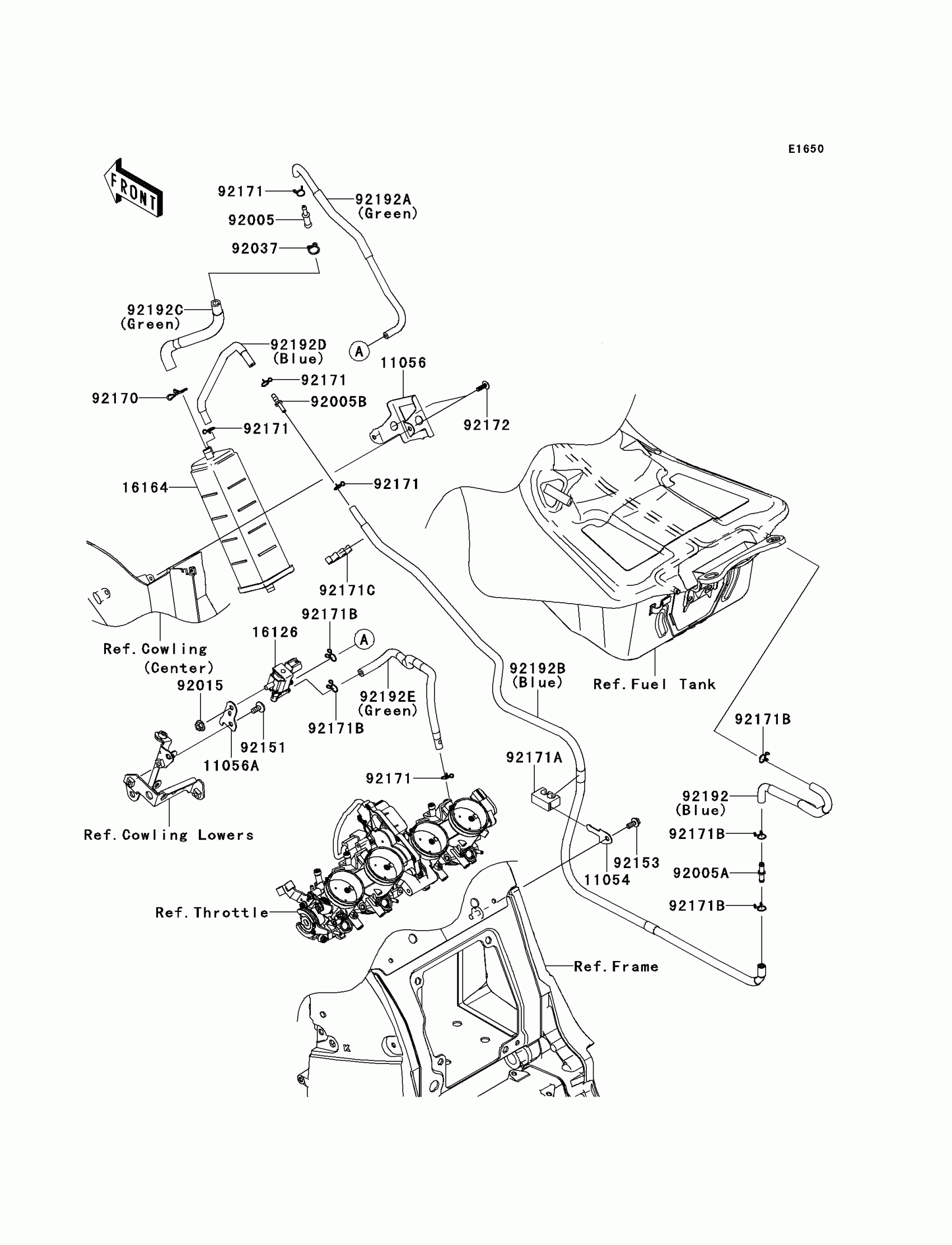

Kawasaki NINJA® ZX™-14R ABS Fuel Evaporative System(CA) Diagram

Description

Price

11054

BRACKET

11054-0464

$15.93

11056

BRACKET,CANISTER

11056-1176

$9.42

11056A

BRACKET,SOLENOID VALVE

11056-1739

$3.68

16126

VALVE,SOLENOID

16126-0705

$109.25

16164

CANISTER

16164-0009

$140.36

92005

FITTING

92005-0032

$4.92

92005A

FITTING

92005-0721

$8.85

92005B

FITTING

92005-1206

$6.62

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92037

CLAMP,12.5MM

92037-1271

$1.73

92151

BOLT,SOCKET,6X14

92151-1654

$1.24

92153

BOLT,FLANGED,6X14

92153-1571

$1.81

92170

CLAMP

92170-1695

$2.27

92171

CLAMP

92171-0576

$3.81

92171A

CLAMP

92171-0693

$11.42

92171B

CLAMP

92171-0718

$1.81

92171C

CLAMP

92171-1213

$8.54

92172

SCREW,TAPPING,5X16

92172-0175

$1.32

92192

TUBE,TANK-CANISTER,BLUE

92192-0512

$73.09

92192A

TUBE,5X9.7X331,GREEN

92192-1056

$67.31

92192B

TUBE,4X9.2X1105,BLUE

92192-1058

$144.82

92192C

TUBE,CANISTER-VALVE,GREEN

92192-1152

$59.25

92192D

TUBE,4X9.2X240,BLUE

92192-1153

$52.89

92192E

TUBE,VALVE-THROTTLE,GREEN

92192-1166

$70.41
