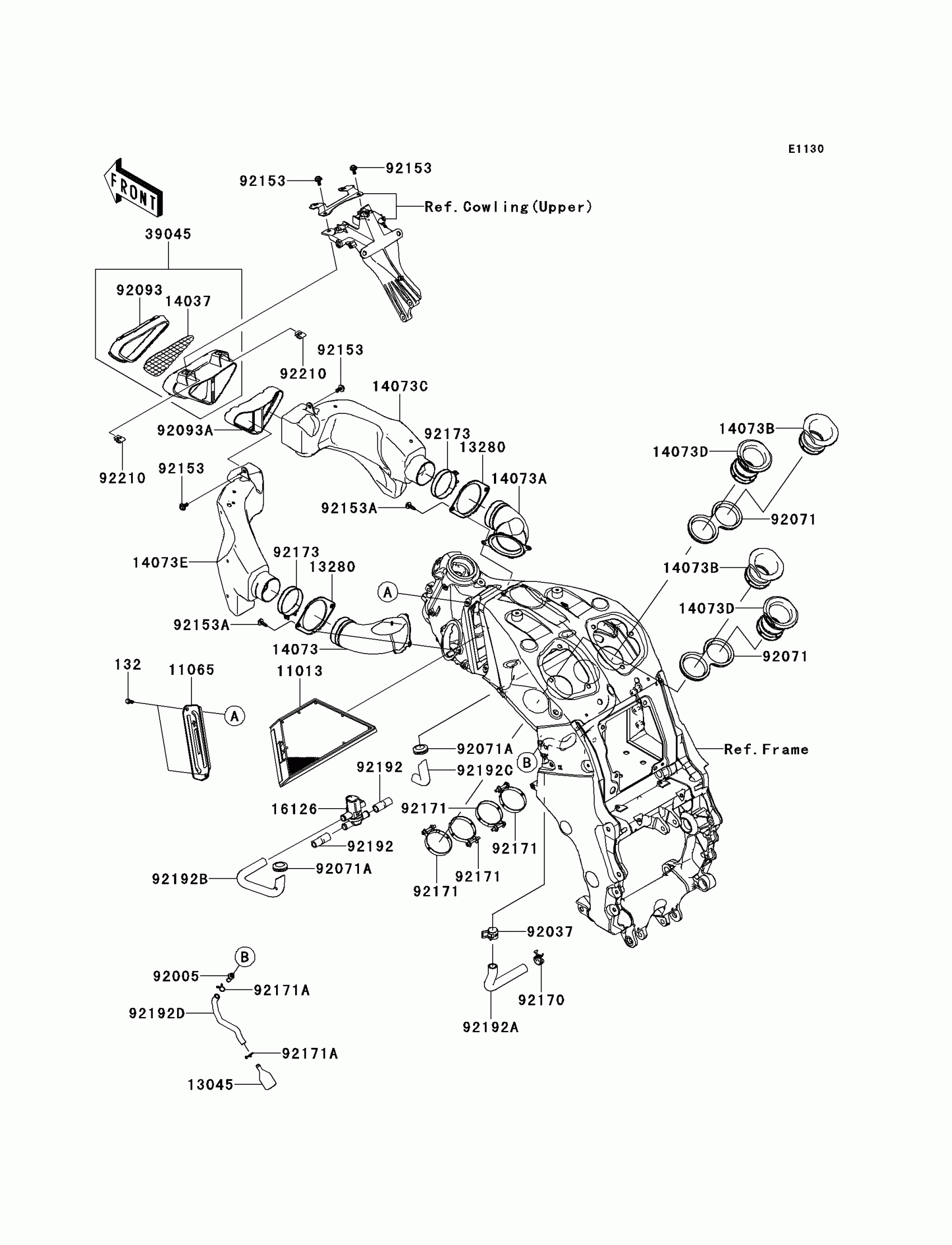

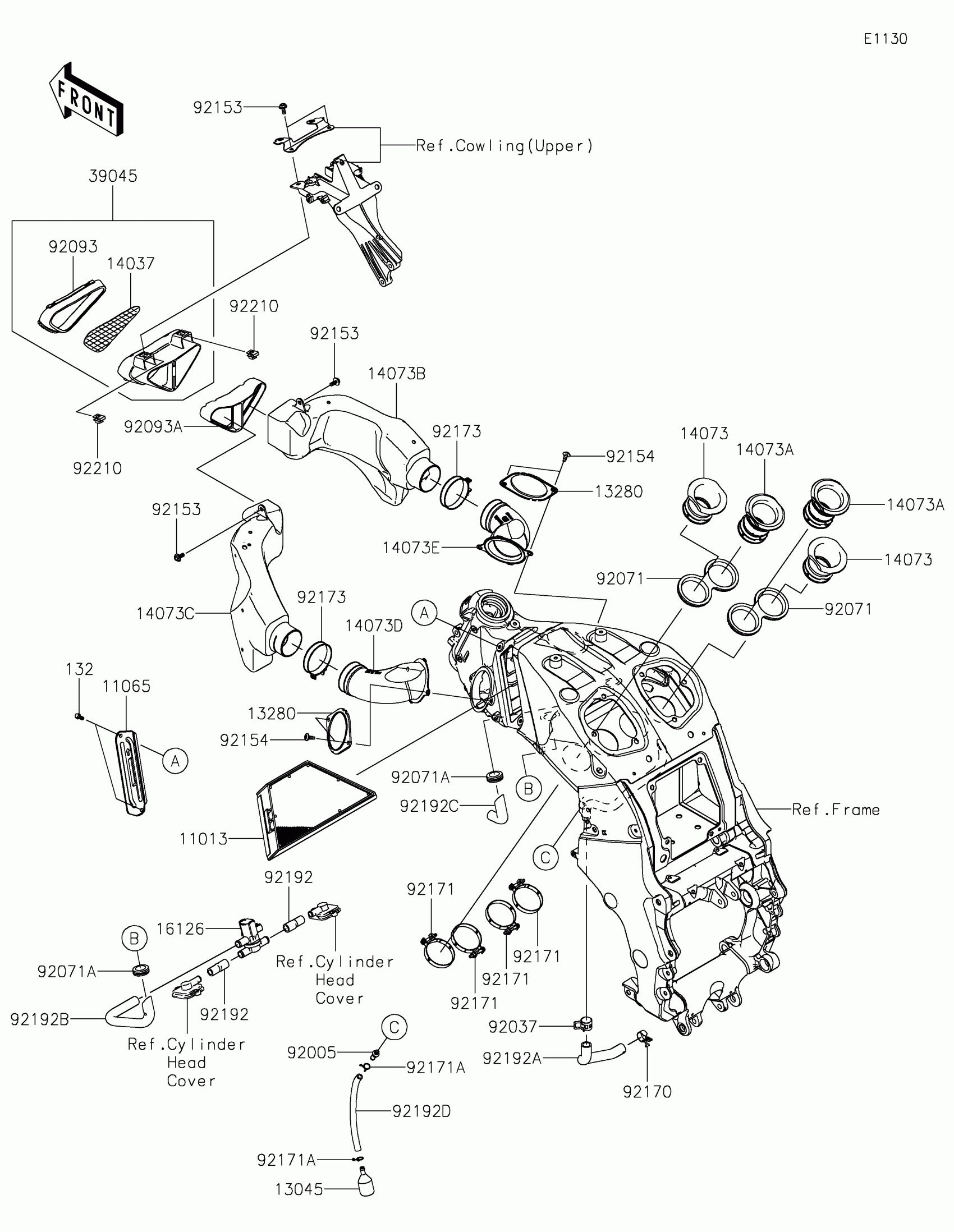

Kawasaki NINJA® ZX™-14R ABS Air Cleaner Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,6X14

132BA0614

$1.13

11013

ELEMENT-AIR FILTER

11013-0718

$59.62

11065

CAP

11065-0367

$35.46

13045

RECEIVER-OIL

13045-1057

$7.48

13280

HOLDER

13280-0154

$11.32

14037

SCREEN

14037-0044

$47.69

14073

DUCT,RAM-FRAME,LH

14073-0101

$51.75

14073A

DUCT,RAM-FRAME,RH

14073-0102

$51.75

14073B

DUCT,FUNNEL

14073-0168

$33.47

14073C

DUCT,RAM AIR,RH

14073-0732

$115.41

14073D

DUCT,FUNNEL

14073-0737

$33.86

14073E

DUCT,RAM AIR,LH

14073-0747

$115.41

16126

VALVE,AIR SWITCHING

16126-0038

$193.92

39045

DUCT-ASSY,RAM AIR,FR

39045-0016

$149.11

92005

FITTING

92005-0055

$23.73

92037

CLAMP,HOSE CLIP

92037-1460

$8.23

92071

GROMMET

92071-0023

$11.43

92071A

GROMMET,AIR FILTER

92071-1042

$5.55

92093

SEAL

92093-0052

$35.17

92093A

SEAL,RAM,DUCT

92093-0053

$35.17

92153

BOLT,UPSET-WP,6X16

92153-1587

$1.53

92153A

BOLT,SOCKET,6X20

92153-1927

$2.15

92170

CLAMP

92170-1060

$7.93

92171

CLAMP

92171-0677

$11.75

92171A

CLAMP

92171-0721

$2.42

92173

CLAMP,65MM

92173-0080

$12.56

92192

TUBE,REED VALVE-ASV

92192-0376

$4.92

92192A

TUBE,BREATHER

92192-0701

$16.20

92192B

TUBE,FITTING-ASV

92192-1007

$13.47

92192C

TUBE,FITTING-ISCV

92192-1008

$9.58

92192D

TUBE,7X12X180

92192-1116

$3.25

92210

NUT

92210-0318

$7.27
