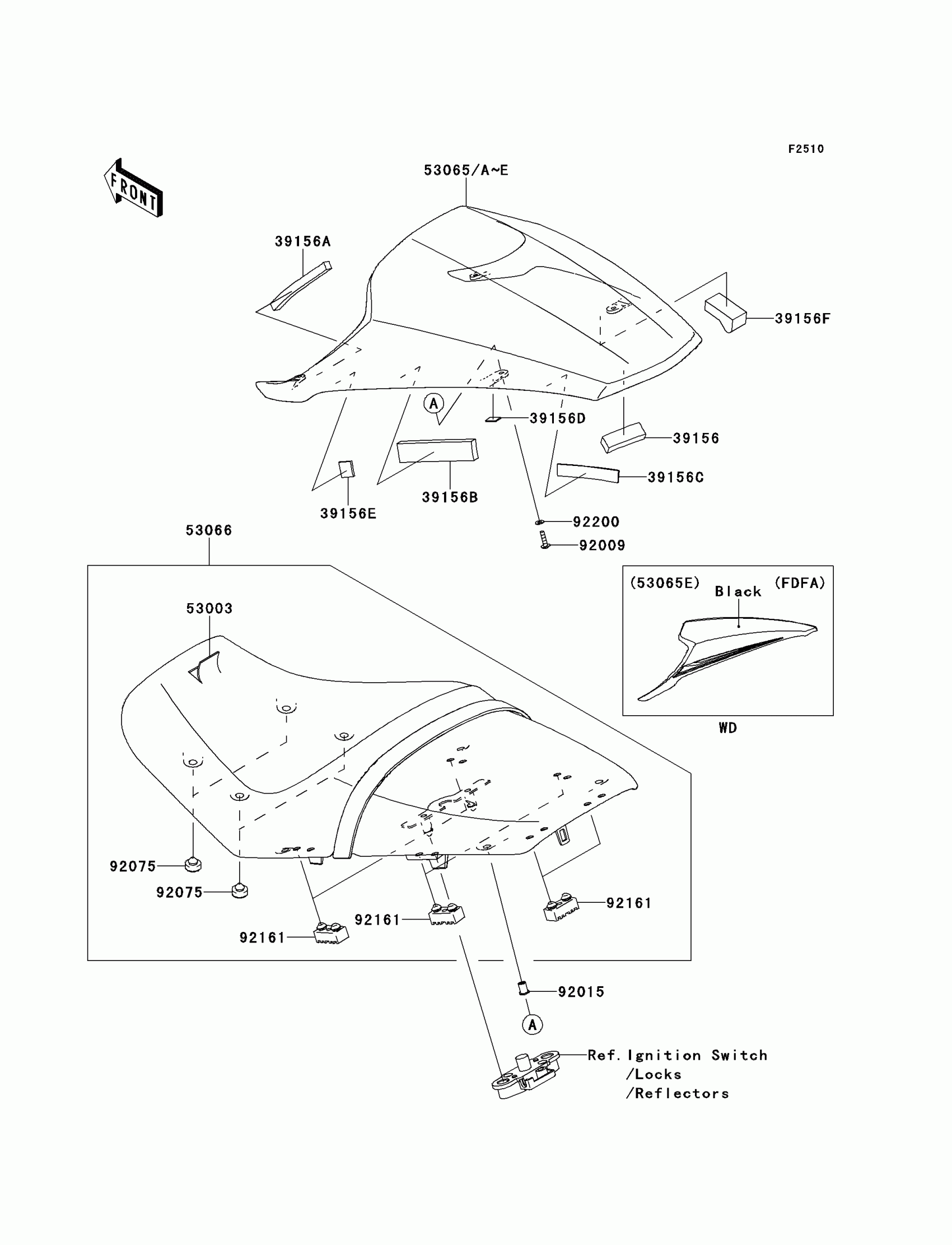

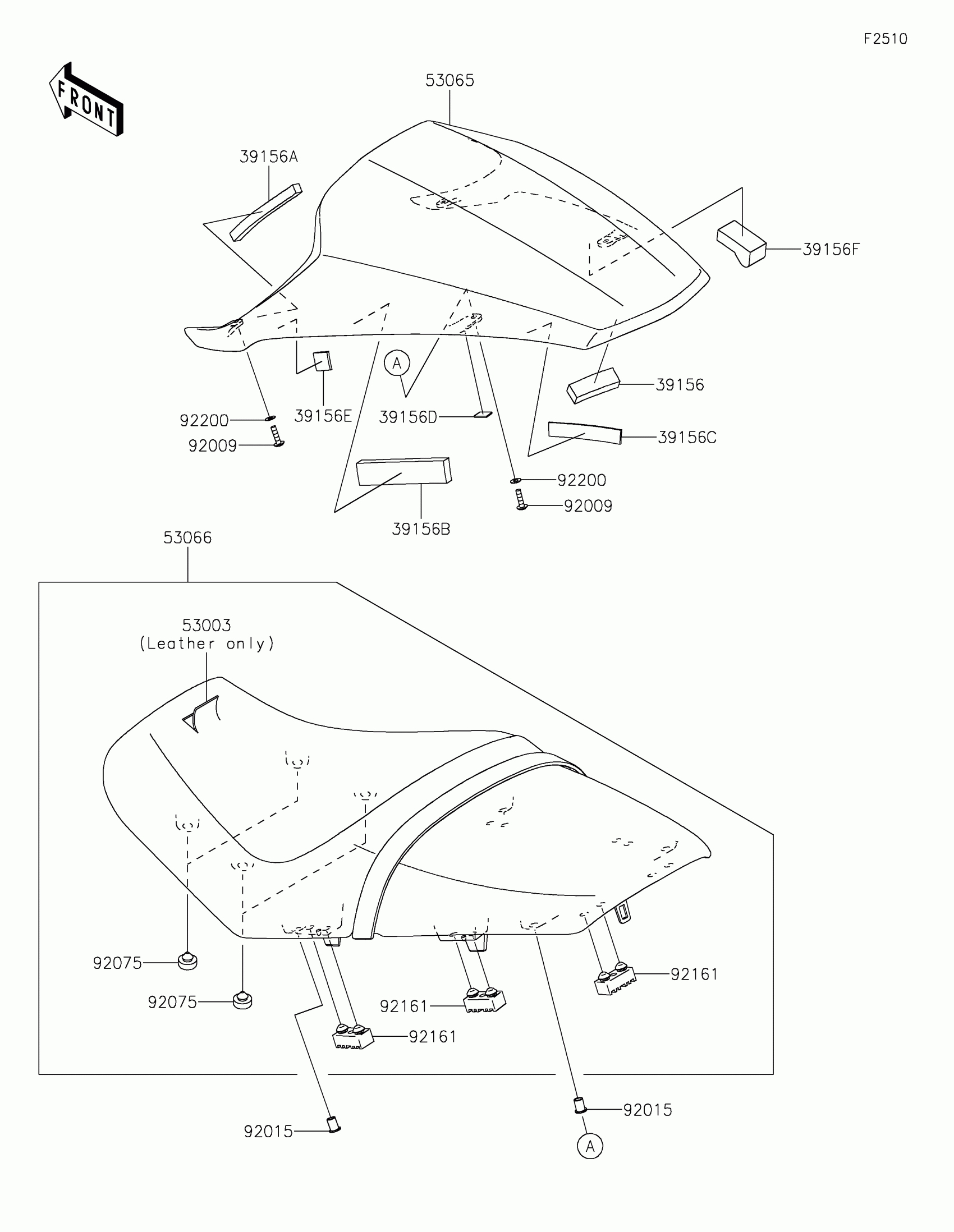

Kawasaki NINJA® ZX™-14R ABS Seat Diagram

Description

Price

39156

PAD,20X50X11

39156-0839

$1.64

39156A

PAD,10X130X10

39156-0880

$3.25

39156B

PAD,25X120X10

39156-0881

$3.25

39156C

PAD,15X90X2

39156-0883

$2.66

39156D

PAD,12X16X1.5

39156-0884

$1.64

39156E

PAD,20X20X3

39156-0896

$1.54

39156F

PAD

39156-0919

$11.37

53003

LEATHER,SEAT,BLACK

53003-0314-MA

$225.91

53065C

COVER SEAT,F.EBONY

53065-0065-45L

$239.92

53065D

COVER SEAT,M.S.BLACK

53065-0065-660

$237.69

53066

SEAT-ASSY,DUAL,W/BAND,BLK+BLK

53066-0328-12Y

$578.82

92009

SCREW,5X20

92009-1934

$1.16

92015

NUT,WELL,5MM

92015-1757

$5.58

92075

DAMPER,10X20X8

92075-1927

$3.35

92161

DAMPER,SEAT

92161-0050

$5.86

92200

WASHER,NYLON,5.3X11.5X0.5

92200-1480

$1.20
