2014 Kawasaki Ninja® ZX™-14R ABS Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2014 Kawasaki Ninja® ZX™-14R ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

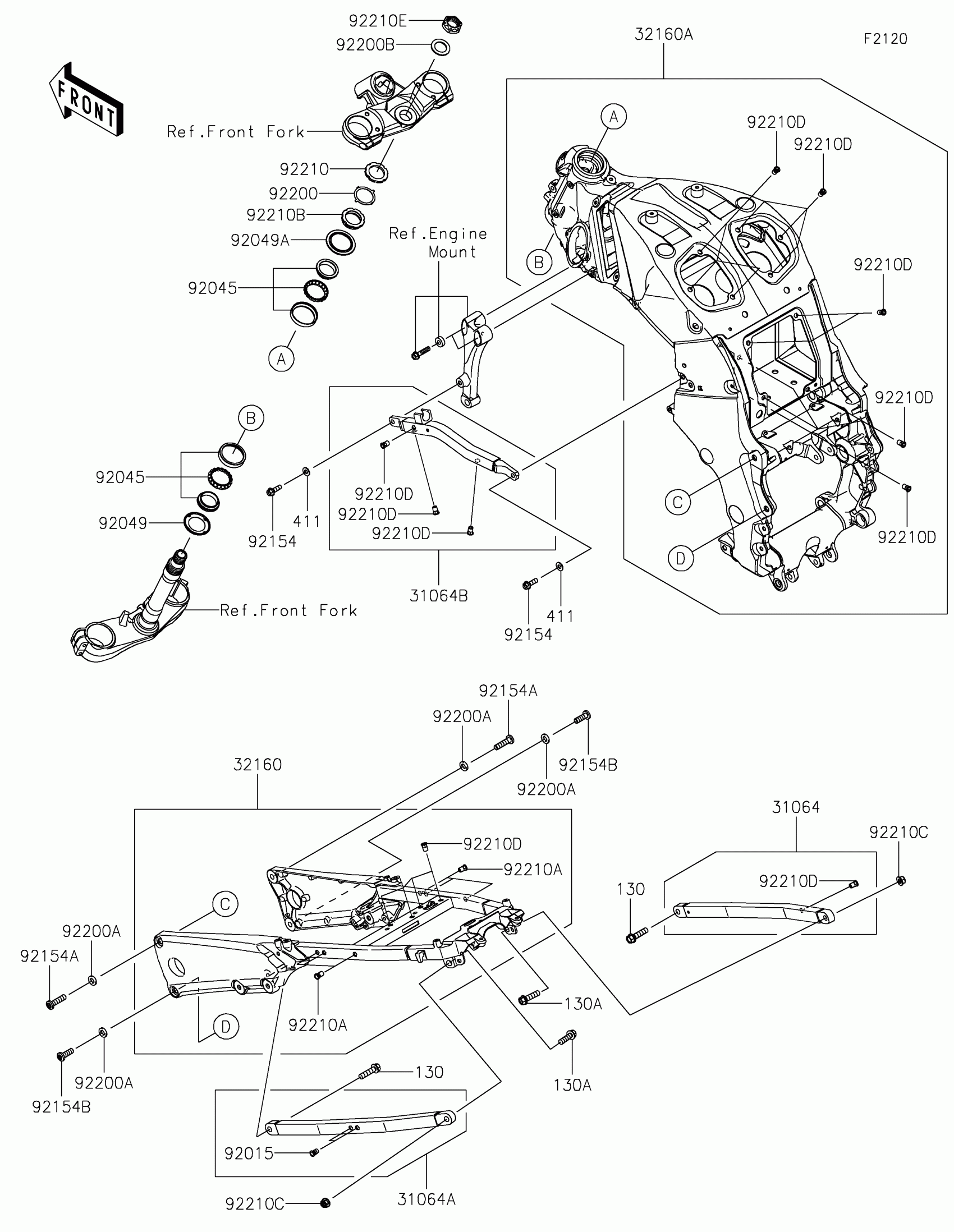

2014 Kawasaki Ninja® ZX™-14R ABS Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,10X40

130BA1040

1
Out of stock

130A

BOLT-FLANGED,10X35

130BB1035

1
Out of stock

411

WASHER-PLAIN,8MM

411AA0800

1
Out of stock

31064

PIPE-COMP,RR,RH,F.S.BLACK

31064-0045-18R

1
Out of stock

31064A

PIPE-COMP,RR,LH,F.S.BLACK

31064-0065-18R

1
Out of stock

31064B

PIPE-COMP,SUB FRAME,LH

31064-0099

1
Out of stock

32160

FRAME-COMP,FR,F.S.BLACK

32160-0580-18R

1
Out of stock

32160A

FRAME-COMP,RR,F.S.BLACK

32160-0649-18R

1
Out of stock

92015

NUT,POP,6MM,L=15

92015-1791

1
Out of stock

92045

BEARING-BALL,SF07A17PX1V1

92045-1384

1
Out of stock

92049

SEAL-OIL,DS35X55X4

92049-0022

1
Out of stock

92049A

SEAL-OIL,43X55.5X8.6

92049-0742

1
Out of stock

92153

BOLT,FLANGED,8X25

92153-1768

1
Out of stock

92154

BOLT,SOCKET,10X40

92154-0994

1
Out of stock

92154A

BOLT,SOCKET,10X30

92154-0995

1
Out of stock

92200

WASHER

92200-0281

1
Out of stock

92200A

WASHER,25.5X42X2.3

92200-0282

1
Out of stock

92200B

WASHER,11X20X3

92200-0805

1
Out of stock

92210

NUT,35MM

92210-0095

1
Out of stock

92210B

NUT,POP,6MM,L=16.5

92210-0324

1
Out of stock

92210C

NUT,25MM

92210-0758

1
Out of stock

92210D

NUT,35MM

92210-0823

1
Out of stock

92210E

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock

92210F

NUT,POP,6MM,L=15

92210-1397

1
Out of stock
